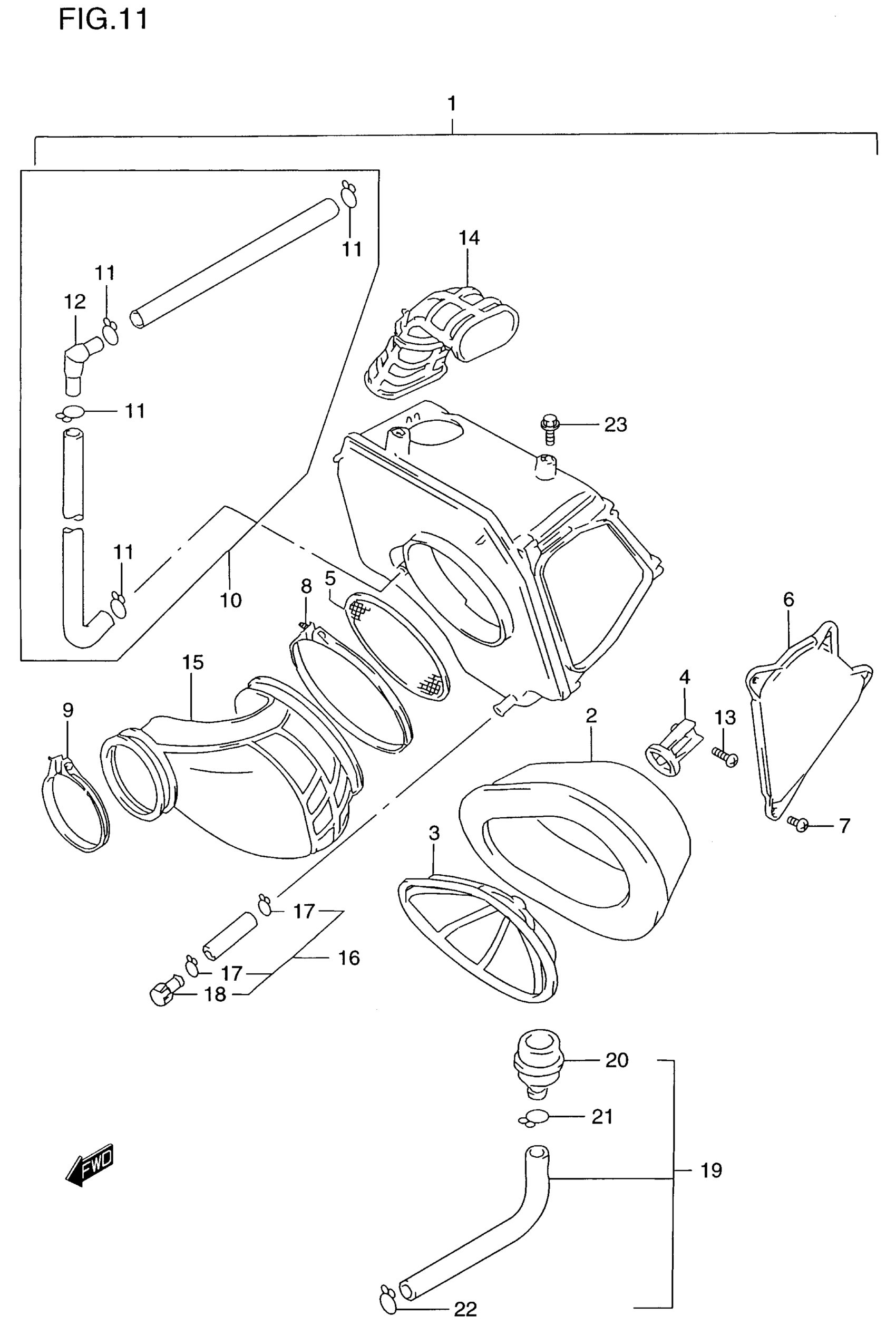

Suzuki DR650SE (2000) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AIR | Includes Item(s) 2 - 18

13700-32E00

$480.35

2

FILTER

13780-32E00

$42.63

3

HOLDER

13791-32E00

$20.84

4

STOPPER

13792-32E00

$7.39

5

TRAP, FRAME

13810-14D02

$11.12

6

CAP

13740-32E00

$28.79

7

.SCREW This part replaces 02142-05123.

02142-0512A

$1.41

8

.CLAMP, OUTLET TUBE

13826-14D01

$8.92

9

CLAMP

09402-64203

$6.12

10

TUBE ASSY, BREATHER

13850-32E00

$36.68

11

CLIP

09401-14301

$2.17

12

JOINT This part replaces 13858-14D10.

13858-14D20

$7.11

13

SCREW This part replaces 02142-06203.

02142-0620A

$1.43

14

TUBE, INLET

13891-32E00

$60.85

15

TUBE, OUTLET

13881-32E00

$108.60

16

TUBE ASSY, DRAIN

13870-32E00

Unavailable

17

CLIP

09401-14301

$2.17

18

PLUG

13877-00190

$6.00

19

CLEANER ASSY,AIR,NO.2 | Includes Item(s) 20 - 22

13800-32E00

$64.25

20

FILTER

18780-32E00

$28.01

21

CLIP

09401-16401

$2.97

22

CLIP

09401-14301

$2.17

23

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01
