1993 Suzuki DR650S Cylinder Diagram

← All diagrams

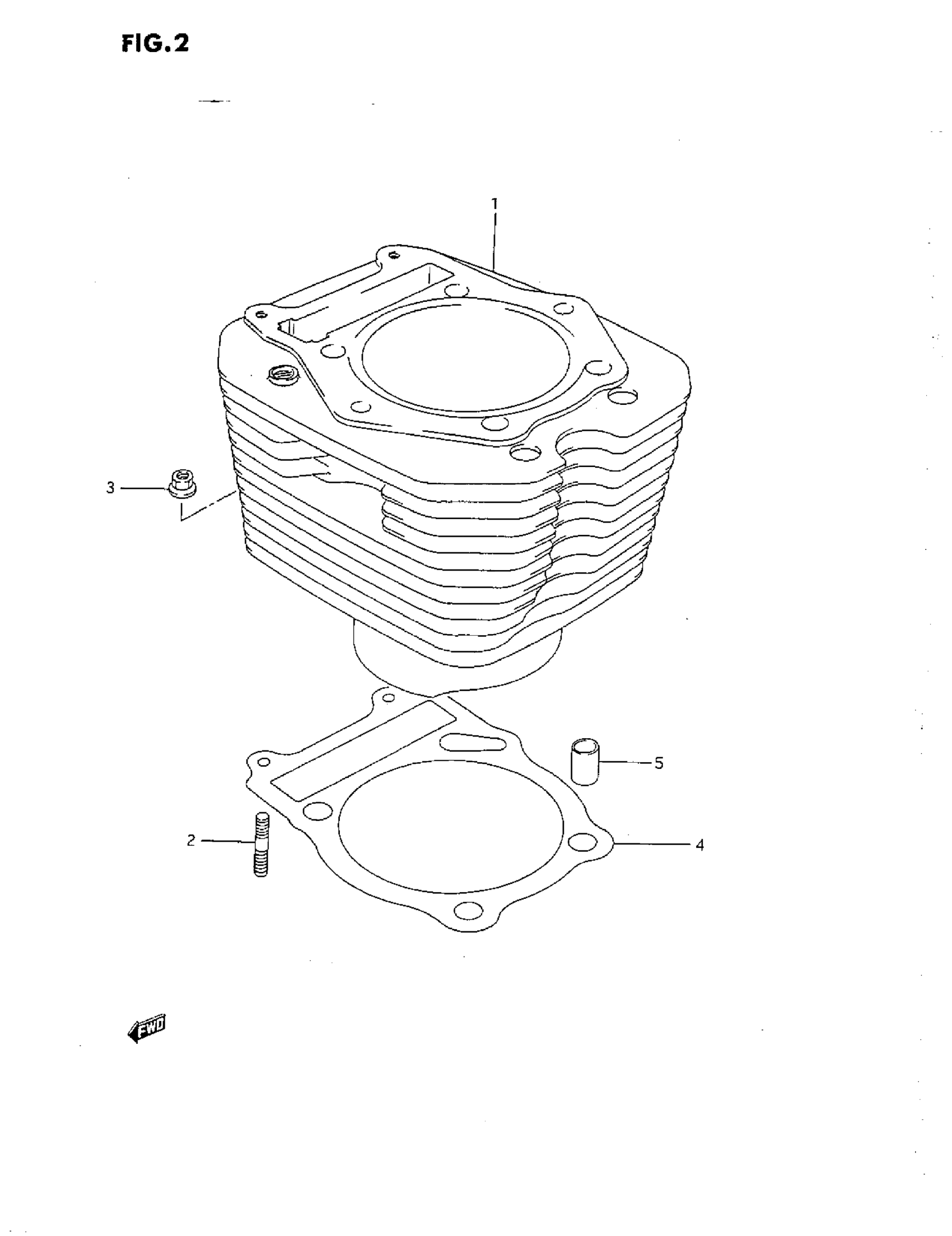

Find the part on the Cylinder diagram for your 1993 Suzuki DR650S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki DR650S Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER | -E.NO.101082 This part replaces 11210-12D20-0E0.

11210-12D23-0F0

1
Out of stock

1

CYLINDER | E.NO.101083-

11210-12D23-0F0

1
Out of stock

2

STUD BOLT This part replaces 01421-06208.

01421-0620A

2
Out of stock

3

NUT | MODEL N/P This part replaces 09159-06017.

08319-31067

2
Out of stock

3

NUT | MODEL R

08316-10067

2
Out of stock

4

GASKET, CYLINDER | MODEL N/P This part replaces 11241-14A02-H17.

11241-14A03-H17

1
Out of stock

4

GASKET, CYLINDER | MODEL R

11241-14A03-H17

1
Out of stock

5

PIN

04211-13189

2
Out of stock
