1993 Suzuki DR650S Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1993 Suzuki DR650S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

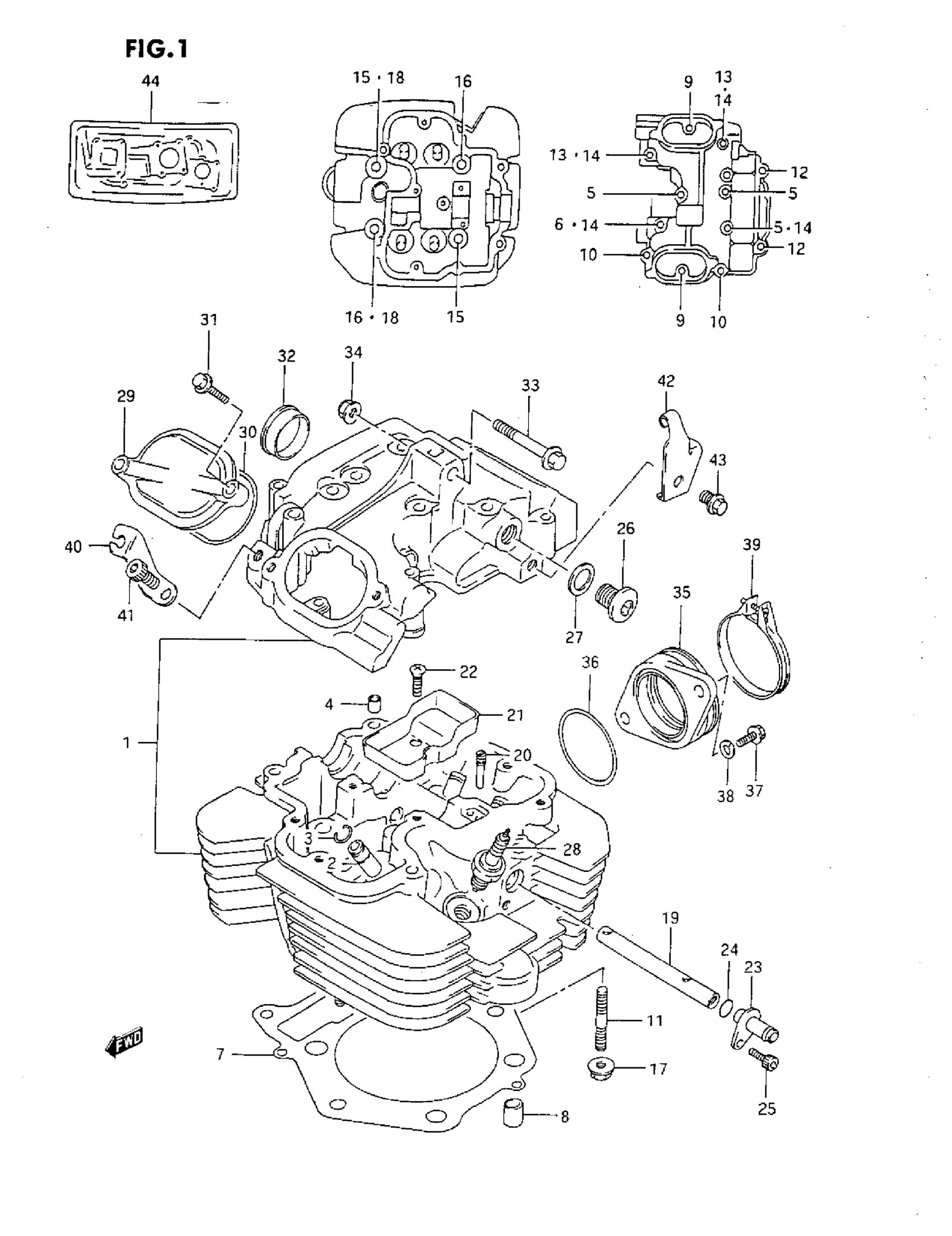

1993 Suzuki DR650S Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER | MODEL N/P

11100-12D60

1
Out of stock

1

HEAD ASSY, CYLINDER | MODEL R

11100-12D80

1
Out of stock

2

GUIDE, VALVE

11115-37470

4
Out of stock

3

RING, VALVE GUIDE

09381-10003

4
Out of stock

4

PIN

09206-08001

2
Out of stock

5

BOLT | MODEL N/P This part replaces 01517-06608.

01550-06607

3
Out of stock

5

BOLT | MODEL R This part replaces 01517-06605.

01550-0660A

3
Out of stock

6

BOLT (6X55) | MODEL N/P

09103-06151

1
Out of stock

6

BOLT CYL HEAD C | MODEL R This part replaces 09103-06040.

09103-06040-XC0

1
Out of stock

7

GASKET, CYLINDER HEAD

11141-12D00

1
Out of stock

8

PIN

04211-13189

2
Out of stock

9

BOLT | MODEL N/P This part replaces 01517-06257.

01550-06257

2
Out of stock

9

BOLT | MODEL R This part replaces 01550-06253.

01550-0625A

2
Out of stock

10

BOLT | MODEL N/P This part replaces 01517-06408.

01550-06407

2
Out of stock

10

BOLT | MODEL R This part replaces 01550-06403.

01550-0640A

2
Out of stock

11

STUD BOLT (8X33) | MODEL N/P This part replaces 09108-08161.

09108-08220

2
Out of stock

11

STUD BOLT | MODEL R

09108-08220

2
Out of stock

12

BOLT (6X130) | MODEL N/P This part replaces 09103-06150.

09103-06085

2
Out of stock

12

BOLT (6X13O) | MODEL R

09103-06085

2
Out of stock

13

BOLT | MODEL N/P This part replaces 01517-06608.

01550-06607

2
Out of stock

13

BOLT | MODEL R This part replaces 01517-06605.

01550-0660A

2
Out of stock

14

GASKET (5.8X13X1.2) This part replaces 09168-06028.

09168-06023

4
Out of stock

15

BOLT (1OX19O)

09103-10179

2
Out of stock

16

BOLT (1OX215)

09103-10181

2
Out of stock

17

NUT (CHROME) | MODEL N/P This part replaces 08316-16088.

08316-10087

2
Out of stock

17

NUT | MODEL R This part replaces 08316-10083.

08316-1008B

2
Out of stock

18

GASKET

09168-10017

2
Out of stock

19

PIPE, HEAD OIL

11131-12D00

1
Out of stock

20

SCREW

09134-06012

1
Out of stock

21

PLATE, HEAD CHAMBER

11135-12D00

1
Out of stock

22

SCREW This part replaces 02112-06103.

02112-0610B

1
Out of stock

23

UNION, HEAD OIL

11190-12D01

1
Out of stock

24

O-RING

11143-06B00

1
Out of stock

25

BOLT | MODEL N/P This part replaces 07110-06165.

07130-0616B

1
Out of stock

25

BOLT | MODEL R This part replaces 07130-06163.

07130-0616B

1
Out of stock

26

PLUG, HEAD COVER

09248-14010

1
Out of stock

27

GASKET

09168-14002

1
Out of stock

28

SPARK PLUG (NGK,DPR9EA-9) | MODEL N/P 03-.04 INCHES/.8-.9 MM This part replaces 09482-00328.

09482-00330

2
Out of stock

28

SPARK PLUG (ND, X27EP-U9) | MODEL N/P 03-.04 INCHES/.8-.9 MM

09482-00329-111

2
Out of stock

28

SPARK PLUG (NGK, DPR9EA-9) | MODEL R 03-.04 INCHES/.8-.9 MM

09482-00330

2
Out of stock

28

SPARK PLUG (DENSO,X27EPR-U9) | MODEL R 03-.04 INCHES/.8-.9 MM This part replaces 09482-00331-111.

09482-00331

2
Out of stock

29

CAP, INSPECTION

11175-12D10

2
Out of stock

30

O-RING

09280-60004

2
Out of stock

31

BOLT | MODEL N/P This part replaces 01517-06207.

01550-06207

4
Out of stock

31

BOLT | MODEL R This part replaces 01550-06203.

01550-0620A

4
Out of stock

32

PLUG, HEAD

09241-30004

1
Out of stock

33

BOLT (8X53) | MODEL N/P This part replaces 09103-08290.

09103-08332

1
Out of stock

33

BOLT (8X5O) | MODEL R

09103-08289

1
Out of stock

34

NUT This part replaces 08319-31085.

08319-3108A

1
Out of stock

35

PIPE, INTAKE

13110-12D00

1
Out of stock

36

O-RING

09280-46002

1
Out of stock

37

BOLT, FRONT | MODEL N/P This part replaces 07120-06205.

07120-0620B

2
Out of stock

37

BOLT, FRONT | MODEL R This part replaces 07120-06203.

07120-0620B

2
Out of stock

39

CLAMP | MODEL N/P This part replaces 09402-58207.

09402-58208

1
Out of stock

39

CLAMP | MODEL R

09402-58208

1
Out of stock

40

HOLDER, DECOMP CABLE | MODEL N/P

12944-14A00

1
Out of stock

41

1

$3.13

In stock

42

HOLDER, DECOMP CABLE | MODEL R

12944-12D00

1
Out of stock

43

BOLT (8X16) | MODEL R This part replaces 09103-08308.

09103-08570

1
Out of stock

44

GASKET SET | MODEL N/P This part replaces 11400-12894.

11400-12895

1
Out of stock

44

GASKET SET | MODEL R

11400-12895

1
Out of stock
