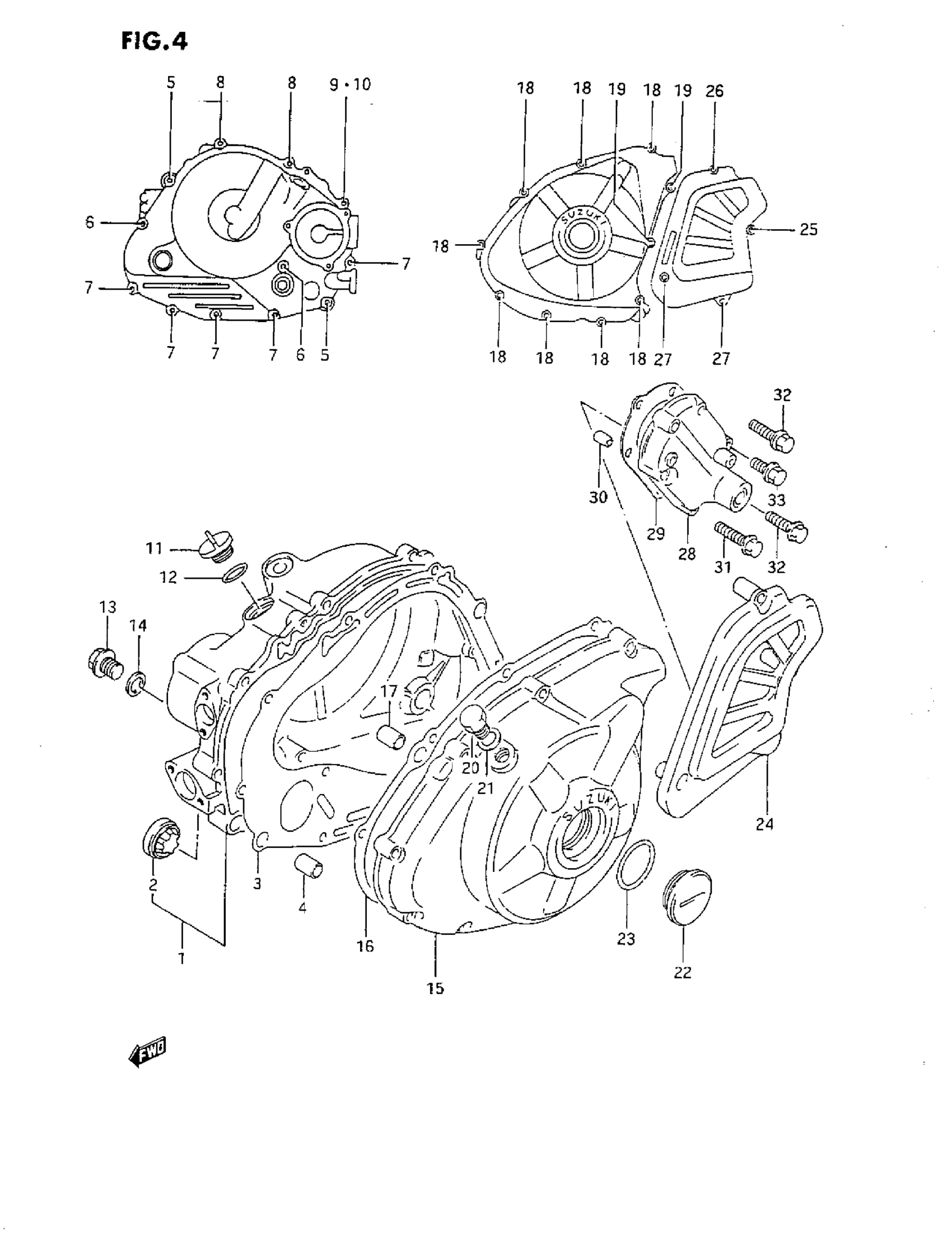

Suzuki DR650S (1993) CRANKCASE COVER (N/P) Diagram

#

Description
Price

1

COVER, CLUTCH

11340-12D30

Unavailable

2

LENS, OIL LEVEL

11971-33210

$17.41

3

GASKET, CLUTCH COVER

11482-12D01

$36.47

4

PIN This part replaces 09206-13001.

04211-13189

$2.25

5

BOLT (6X5O)

01547-06507

$2.50

6

BOLT (6X4O)

01547-06407

$2.40

7

BOLT (6X35)

01547-06357

$2.09

8

BOLT (6X25)

01547-06257

$2.09

9

BOLT (6X25)

09103-06161

Unavailable

10

WASHER This part replaces 08322-21067.

08322-01067

$1.93

11

PLUG, OIL FILLER

09259-20019

$10.92

12

O-RING

09280-17003

$1.70

13

PLUG, OIL CHECK

09247-14026

$3.49

14

GASKET

09168-14004

$1.69

15

COVER, MAGNETO

11351-12D30

Unavailable

16

GASKET, MAGNETO COVER

11483-12D10

$38.20

17

PIN This part replaces 09206-13001.

04211-13189

$2.25

18

BOLT (6X3O)

01547-06307

$2.13

19

BOLT (6X25)

01547-06257

$2.09

20

PLUG, T.D.C

09247-12104

$2.80

21

GASKET

09168-12002

$1.63

22

PLUG, SHAFT HOLE This part replaces 09259-36018.

09259-36016-20H

$12.83

23

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.31

24

COVER, ENGINE SPROCKET

11361-12D30

Unavailable

25

BOLT (6X45)

01547-06457

$2.39

26

BOLT (6X35)

01547-06357

$2.09

27

BOLT (6X2O)

01547-06207

$2.09

28

COVER,GEAR SHF

11371-12D30

$98.00

29

GASKET, GEAR SHIFT COVER

11485-12D01

$5.58

30

PIN

04211-09129

$1.70

31

BOLT (6X35)

01547-06357

$2.09

32

BOLT (6X3O)

01547-06307

$2.13

33

BOLT (6X2O)

01547-06207

$2.09
