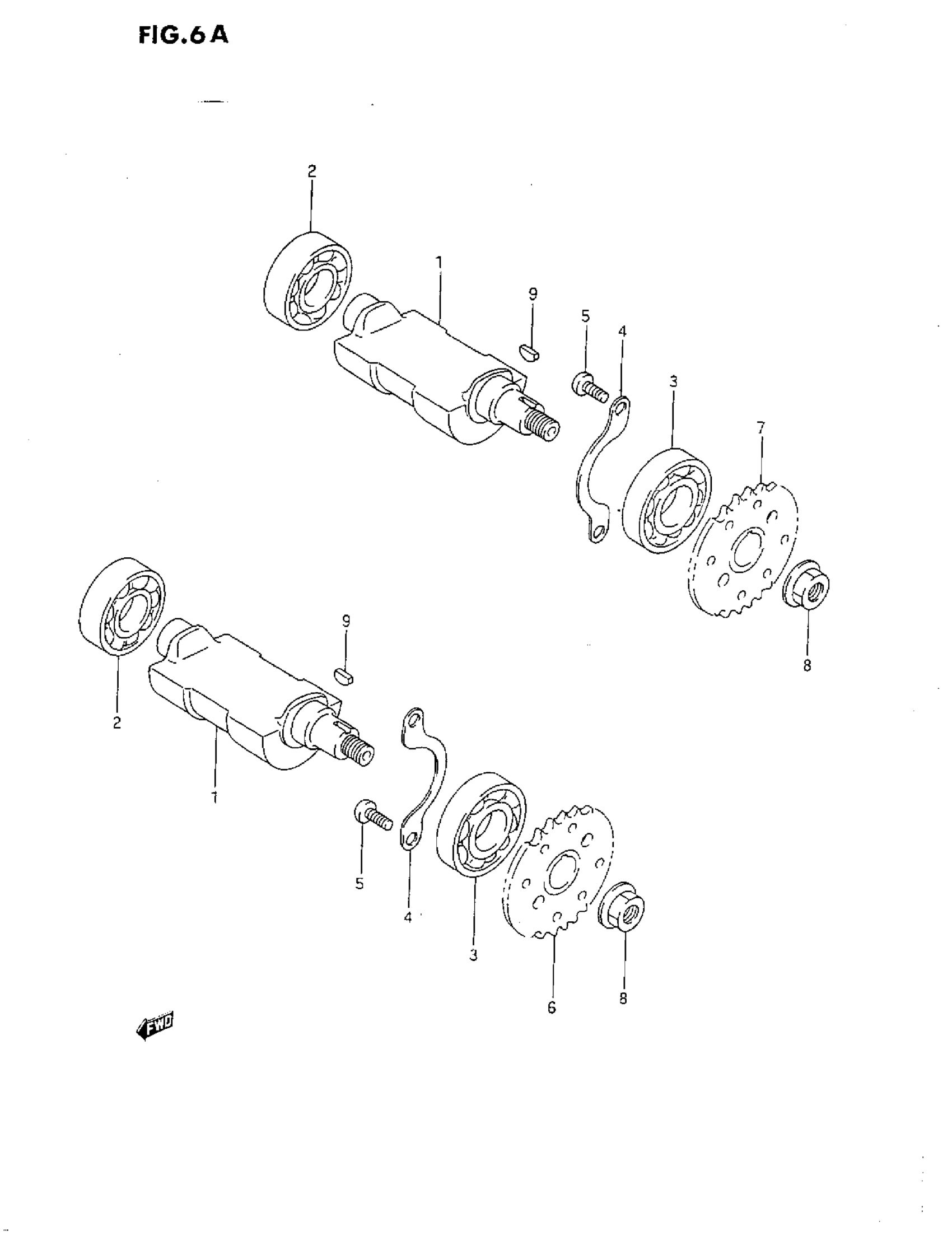

Suzuki DR650S (1993) CRANK BALANCER (N) Diagram

#

Description

Price

1

BALANCER, CRANK This part replaces 12651-12D10.

12651-12D11

Unavailable

2

BEARING, RH (20X42X12)

09262-20106

$31.90

3

BEARING, LH (20X47X12)

09262-20122

$22.40

4

RETAINER, BEARING

12659-37400

Unavailable

5

SCREW This part replaces 02112-06126.

02112-0612A

$1.43

6

SPROCKET, FRONT (NT:25)

12665-37453

Unavailable

7

SPROCKET, REAR (NT:25)

12675-37453

Unavailable

8

NUT This part replaces 09159-10014.

09159-10046-XC0

$2.20

9

KEY

08341-31039

$1.89
