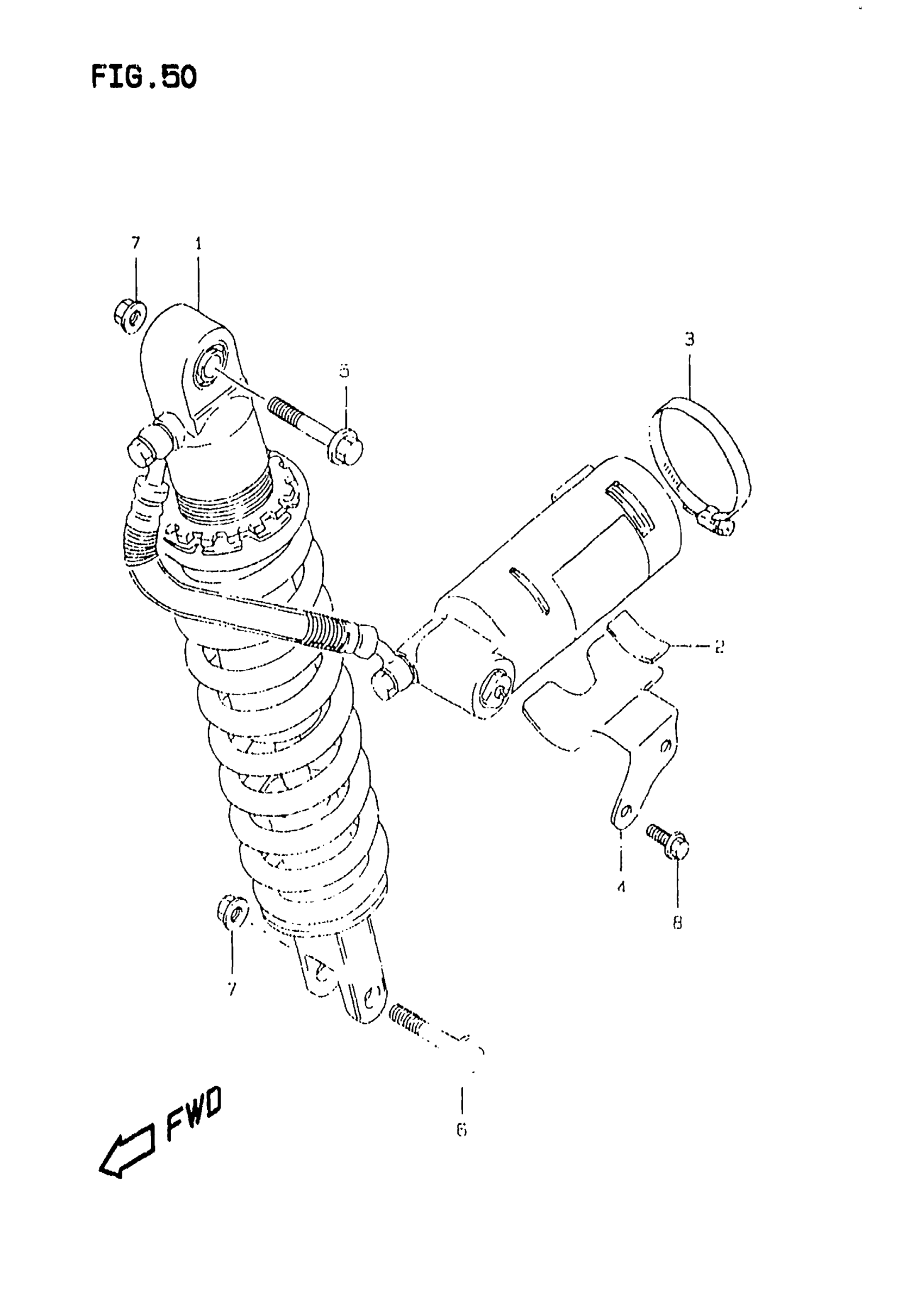

Suzuki DR350SE (1999) REAR SHOCK ABSORBER Diagram

#

Description

Price

1

ABSORBER ASSY, REAR SHOCK (WHI | MODEL V

62100-14E61-1TS

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL W/X; Includes Item(s) 2 - 4 This part replaces 62100-14E70-1TS.

62100-14E71-1TS

Unavailable

2

CUSHION, TANK

53146-20C00

$7.95

3

CLAMP, TANK

09402-60502

Unavailable

4

BRACKET, TANK

62420-14D10

Unavailable

5

BOLT, UPPER (10x54)

62311-28E00

$6.08

6

BOLT, LOWER (10x48) | MODEL V

62648-14500

$4.28

6

BOLT, LOWER (10x54) | MODEL W/X

62311-28E00

$6.08

7

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.31

8

BOLT This part replaces 01550-06103.

01550-0610A

$2.01
