1999 Suzuki DR350SE Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 1999 Suzuki DR350SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

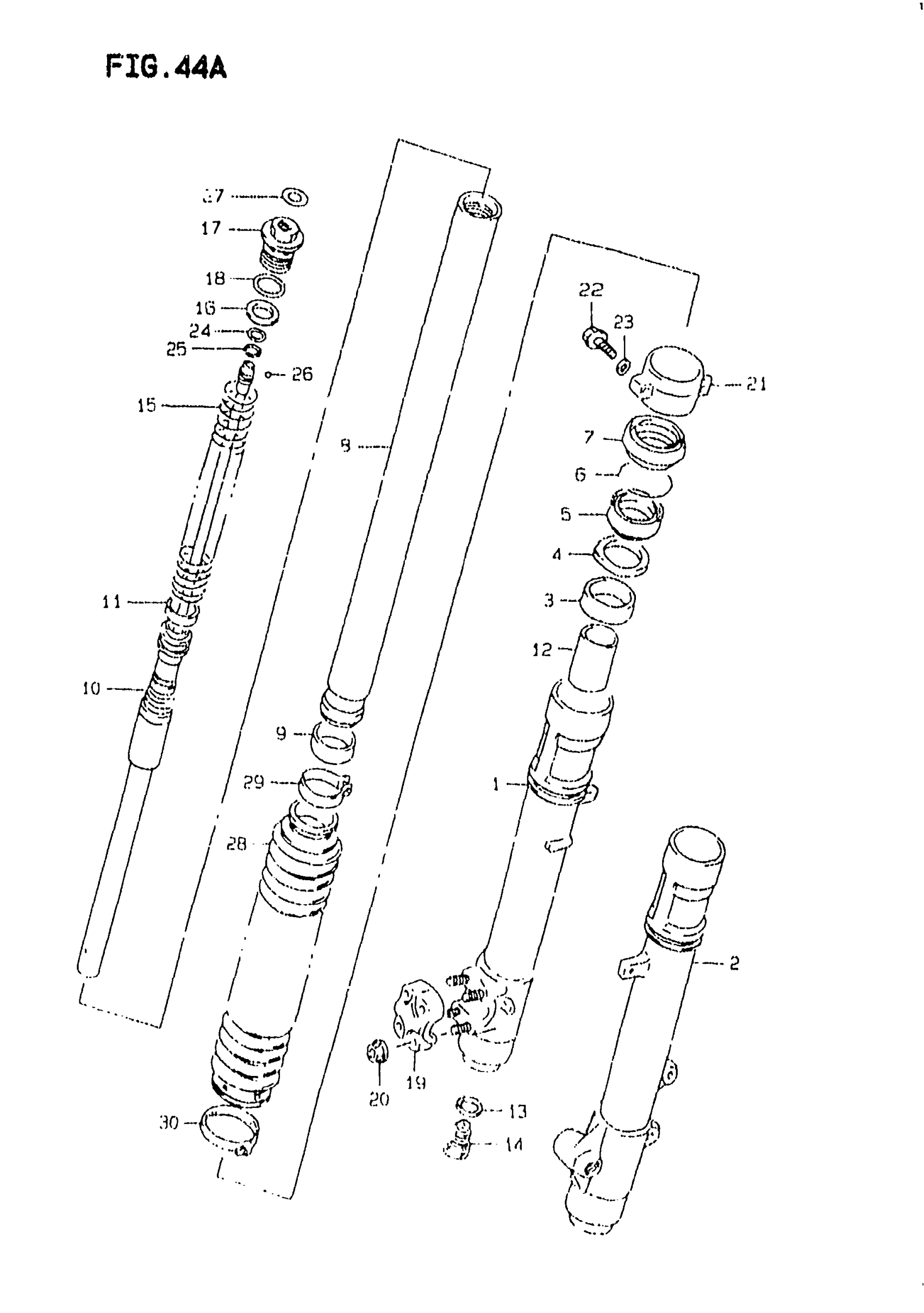

1999 Suzuki DR350SE Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

DAMPER ASSY, FRONT FORK RH

51103-14EE0

1
Out of stock

0

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 27

51104-14EE0

1
Out of stock

1

TUBE, OUTER RH

51130-13E00

1
Out of stock

2

TUBE, OUTER LH

51140-13E00

1
Out of stock

3

BUSH, GUIDE

51152-13E00

2
Out of stock

4

.SPACER, SEAL

51168-17C00

2
Out of stock

5

SEAL, OIL

51153-14D00

2
Out of stock

6

RING, STOPPER

51556-38B00

2
Out of stock

7

SEAL, DUST

51173-14D00

2
Out of stock

8

TUBE, INNER

51110-14E90

2
Out of stock

9

BUSH. SLIDE

51121-13E00

2
Out of stock

10

ROD, FRONT DAMPER

51190-14EE0

2
Out of stock

11

BUSH, SLIDE

51197-14E30

2
Out of stock

12

PIECE, OIL LOCK

51195-14E90

2
Out of stock

13

GASKET

51148-08D00

2
Out of stock

14

BOLT, CENTER

51170-14E90

2
Out of stock

15

SPRING, FRONT

51171-14EE0

2
Out of stock

16

SEAT, SPRING

51186-17C00

2
Out of stock

17

BOLT, FORK

51351-14E90

2
Out of stock

18

O RING

51117-17C00

2
Out of stock

19

HOLDER, AXLE RH

51132-13E00

1
Out of stock

20

NUT, AXLE HOLDER

08319-31067

4
Out of stock

21

HOLDER

51203-13E00

2
Out of stock

22

BOLT

07130-05207

2

$3.30

In stock

23

WASHER

09160-05044

2

$2.33

In stock

24

O RING

09280-14011

2
Out of stock

25

EXPANDER

51836-17C00

2
Out of stock

26

BALL

51835-17C00

2
Out of stock

27

LABEL, S-H

51149-29E00

2
Out of stock

28

BOOT This part replaces 51571-14D00-163.

51571-14D01-163

2
Out of stock

29

BAND, BOOT UPPER

51575-14D00

2
Out of stock

30

BAND, BOOT LOWER

51576-14D00

2
Out of stock
