1999 Suzuki DR350SE Left Handle Lever Diagram

← All diagrams

Find the part on the Left Handle Lever diagram for your 1999 Suzuki DR350SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

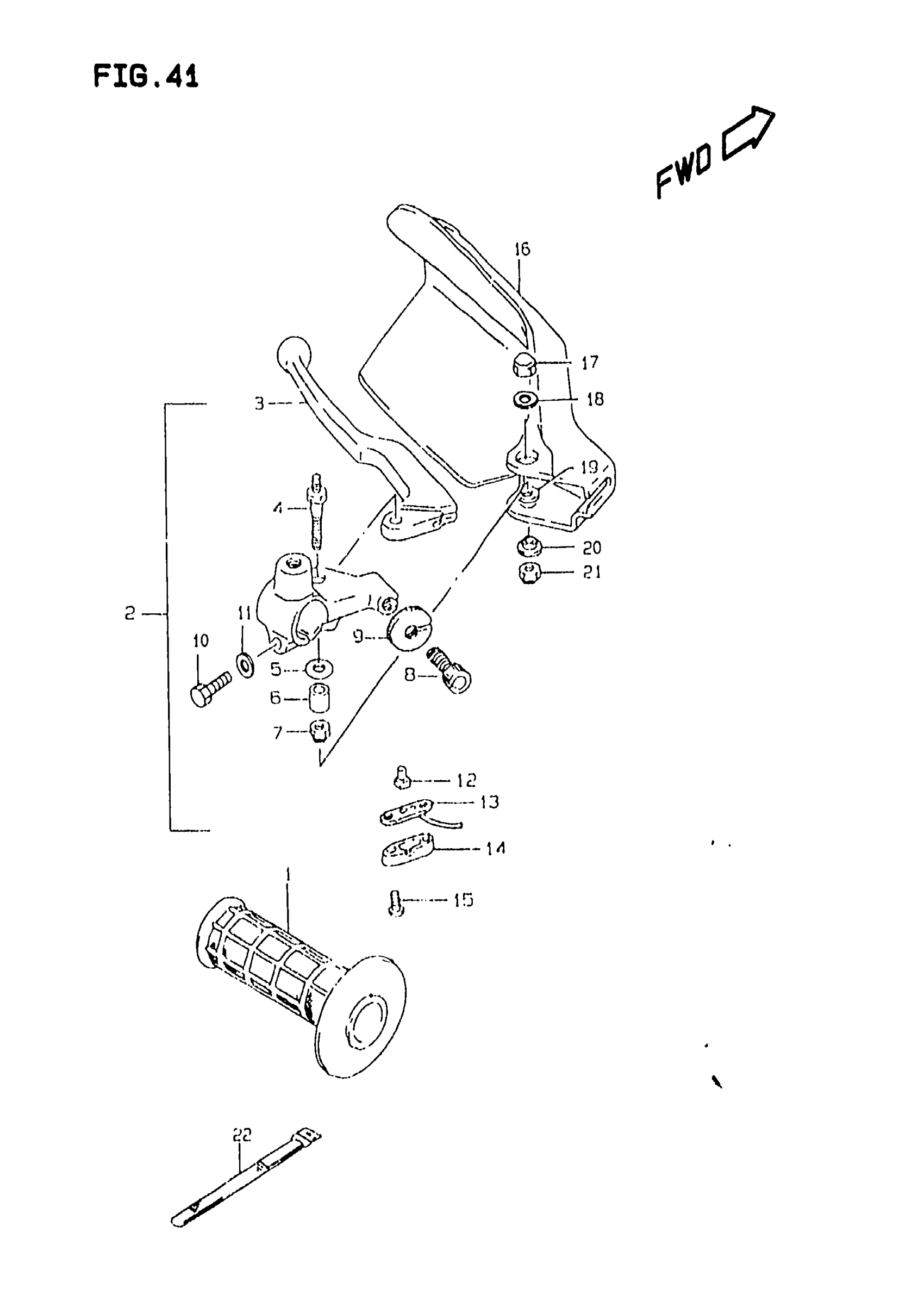

1999 Suzuki DR350SE Left Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP LH

57211-27C00

1
Out of stock

2

LEVER ASSY, CLUTCH | Includes Item(s) 3 - 15

57500-15D11

1
Out of stock

3

LEVER

57620-15D11

1
Out of stock

4

BOLT | MODEL V This part replaces 57531-44B00.

57531-44B01

1
Out of stock

4

BOLT | MODEL W/X

57531-44B01

1
Out of stock

5

WASHER

08322-01067

1
Out of stock

6

SPACER

57532-44B00

1
Out of stock

7

.NUT This part replaces 08319-21063.

08319-2106B

1
Out of stock

8

ADJUSTER

57441-44400

1

$8.33

In stock

9

NUT

57442-44B00

1
Out of stock

10

BOLT

01500-06207

1
Out of stock

11

WASHER

08322-01067

1
Out of stock

12

CONTACT

57465-18601

1
Out of stock

13

WIRE ASSY

57541-49100

1
Out of stock

14

COVER

57481-33010

1
Out of stock

15

SCREW

57484-49110

2
Out of stock

16

COVER,KNUCKLE,L | MODEL V/W This part replaces 57541-31D00-Z16.

57541-31D30-Z16

1
Out of stock

16

COVER,KNUCKLE LH (BLACK) | MODEL X This part replaces 57541-31D00-019.

57541-31D20-019

1
Out of stock

17

1

$1.97

In stock

18

WASHER

09160-06066

1
Out of stock

19

WASHER

09160-06019

1
Out of stock

20

WASHER

09169-06040

1
Out of stock

21

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

22

BAND

09407-12402

1
Out of stock
