1999 Suzuki DR350SE Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1999 Suzuki DR350SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

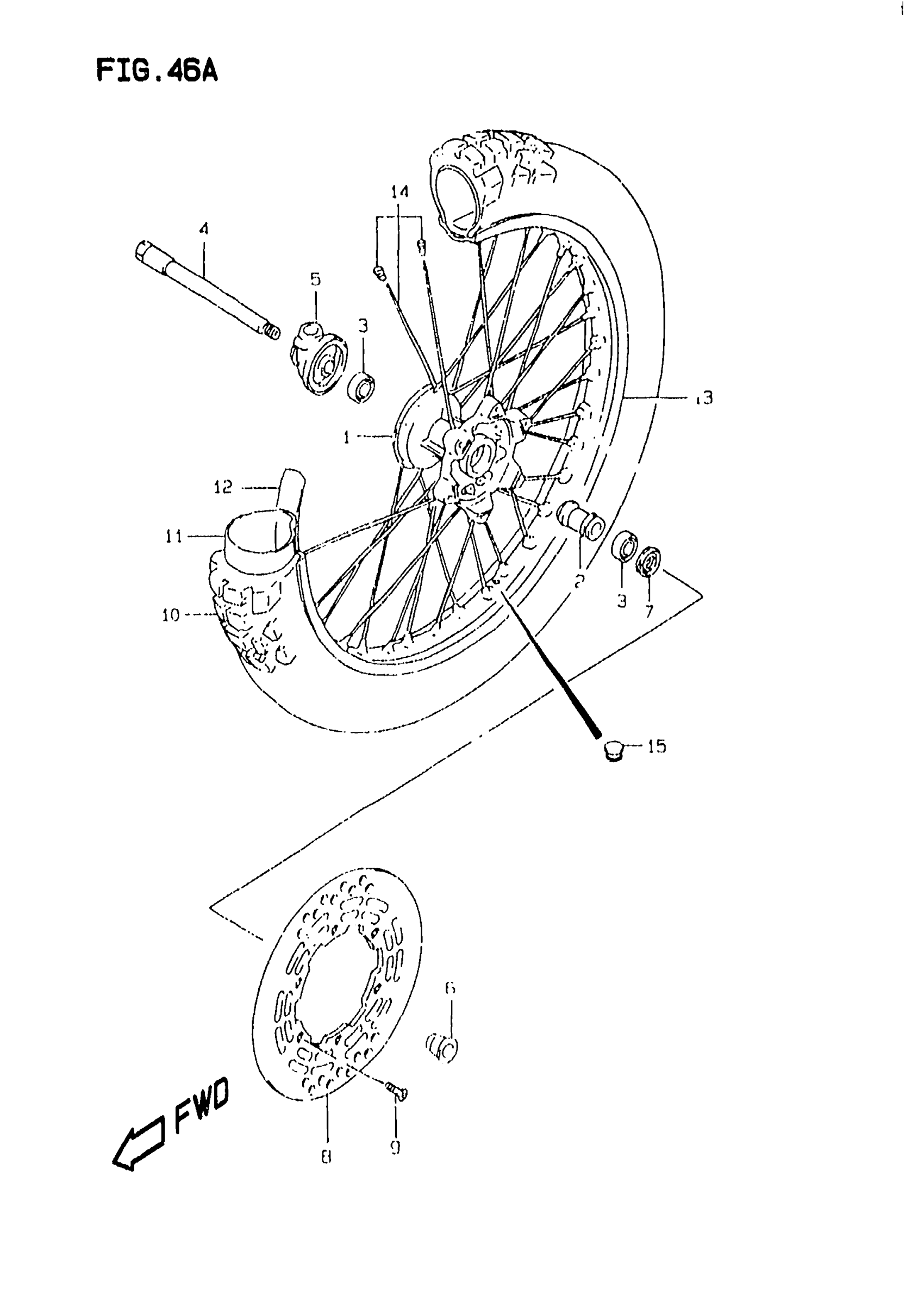

1999 Suzuki DR350SE Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT WHEEL

54111-29E00

1
Out of stock

2

SPACER, FRONT HUB

54730-01B00

1
Out of stock

3

BEARING

08123-60037

2
Out of stock

4

AXLE, FRONT

54711-05D01

1
Out of stock

5

BOX ASSY,SPEEDOMETER GEAR This part replaces 54600-05D00.

54600-05D01

1
Out of stock

6

SPACER, AXLE, LH

54751-05D00

1
Out of stock

7

OIL SEAL (23X35X6)

09284-23001

1
Out of stock

8

DISC, FRONT BRAKE

59221-13E00

1

$325.48

In stock

9

SCREW, SHIFT PAWL LIFTER This part replaces 09120-06011.

09120-06014

6
Out of stock

10

TIRE, FRONT (80/100-21)

55110-15D50

1
Out of stock

11

TIRE, FRONT This part replaces 55200-16510.

55200-16511

1
Out of stock

12

PROTECTOR, INNER TUBE

55261-14540

1
Out of stock

13

RIM, FRONT WHEEL (1.60x21)

55311-08D01

1
Out of stock

14

SPOKE SET, FRONT WHEEL

55320-44B00

1
Out of stock

15

CAP, BEAD STOPPER

09250-08013

1

$2.92

In stock
