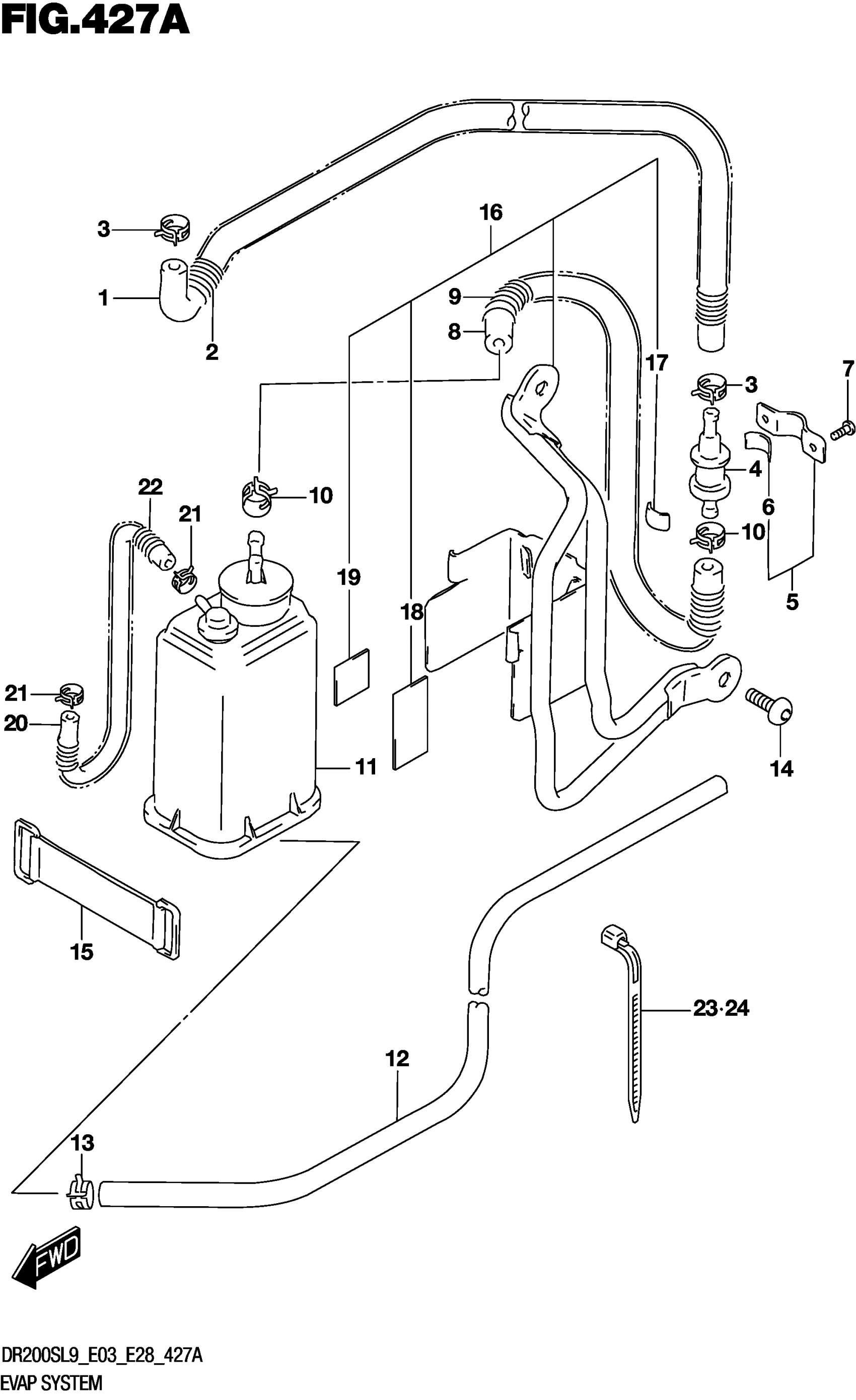

Find the part on the Evap System diagram for your 2019 Suzuki DR200SL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki DR200SL9 Evap System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE

44434-42A00

1
Out of stock

2

SPRING

09440-13053

1
Out of stock

3

CLIP (ID:11,H:8)

09401-11413

2
Out of stock

4

VALVE,FUEL TANK BREATHER

44240-38A00

1
Out of stock

5

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

1
Out of stock

6

CUSHION (10X30X2)

44894-24A00

1
Out of stock

7

SCREW

02112-0408B

2
Out of stock

8

HOSE

44435-42A00

1
Out of stock

9

SPRING

09440-13043

1
Out of stock

10

CLIP (ID:11,H:8)

09401-11413

2
Out of stock

11

CANISTER ASSY

17210-44A00

1
Out of stock

12

HOSE(7X11X2000) | L:2000->650 This part replaces 09352-70113-00B.

09352-70119-00B

1
Out of stock

13

CLIP (ID:10.5,H:8)

09401-10409

1
Out of stock

14

SCREW (6X16)

09139-06139

2
Out of stock

15

BAND

09462-00034

1
Out of stock

16

PLATE

44880-44AB0

1
Out of stock

17

CUSHION (10X30X2)

44894-24A00

1
Out of stock

18

CUSHION

44885-38A00

1
Out of stock

19

CUSHION (30X30X2)

44885-44AA0

1

$3.60

In stock

20

HOSE

44436-42A00

1
Out of stock

21

CLIP (ID:6.8)

09401-06405

2
Out of stock

22

SPRING

09440-10031

1
Out of stock

23

CLAMP (L:125)

09407-14403

3
Out of stock

24

CLAMP (L:165)

09407-18402

1
Out of stock
