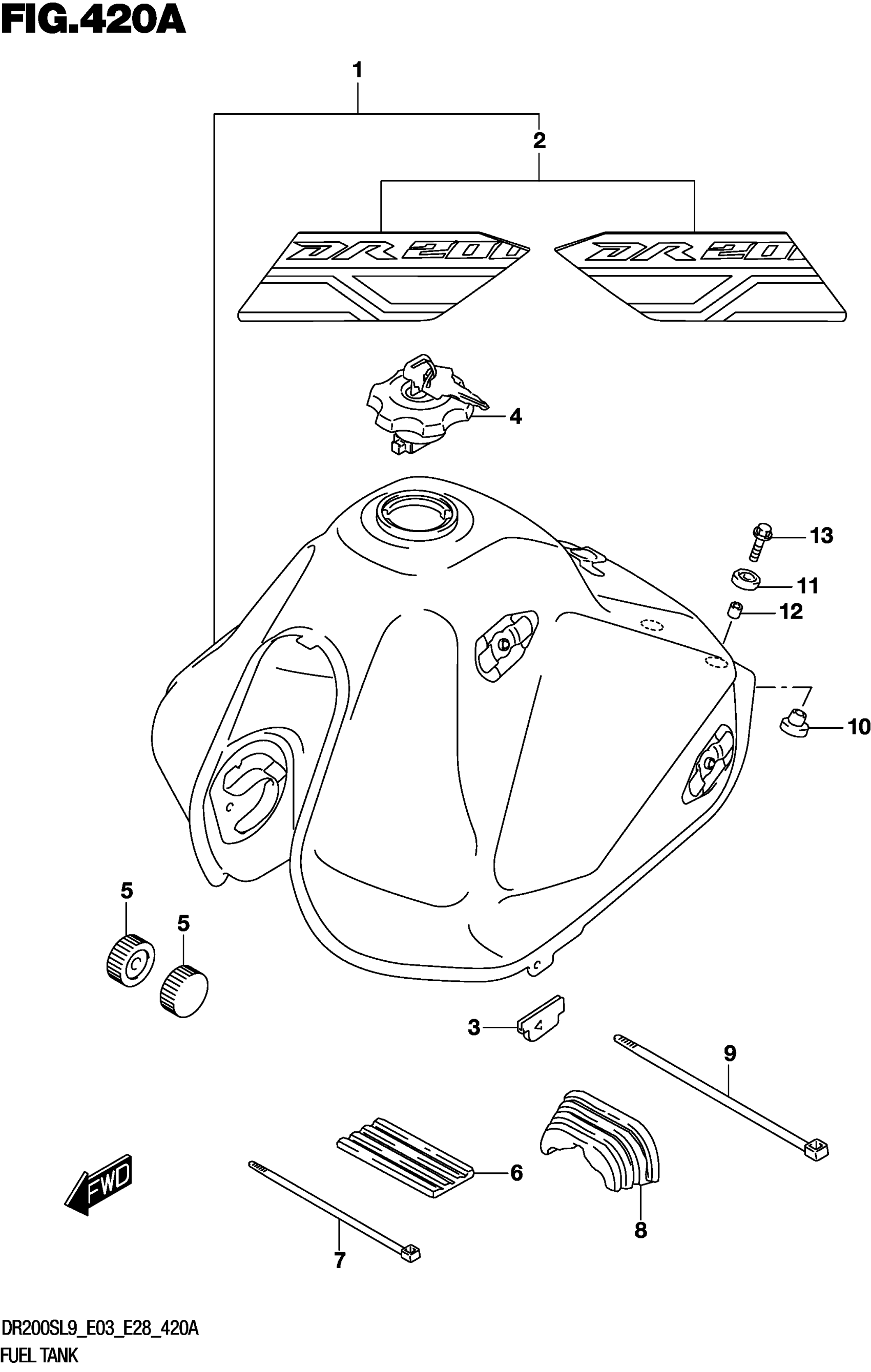

Suzuki DR200SL9 (2019) FUEL TANK (DR200SL9 E03) Diagram

TANK ASSY, FUEL (BLACK)

44100-49J50-019

$930.28

.TAPE SET, FUEL TANK

68110-49J10-BTB

Unavailable

CUSHION

44164-49J00

$5.75

CAP SET FUEL TANK FILLER This part replaces 44200-29820.

44200-29821

$156.08

CUSHION

09329-10016

$2.80

CUSHION

44541-14500

$9.35

CLAMP This part replaces 09407-20405.

09407-25402

$4.19

CUSHION

44542-14A00

$17.40

CLAMP (L:300)

09407-30402

$3.76

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.71

CUSHION (14.5X24X8)

09320-14022

$3.28

SPACER (6.5X9X18)

09180-06271

$2.17

BOLT

01570-0630B

$2.33
