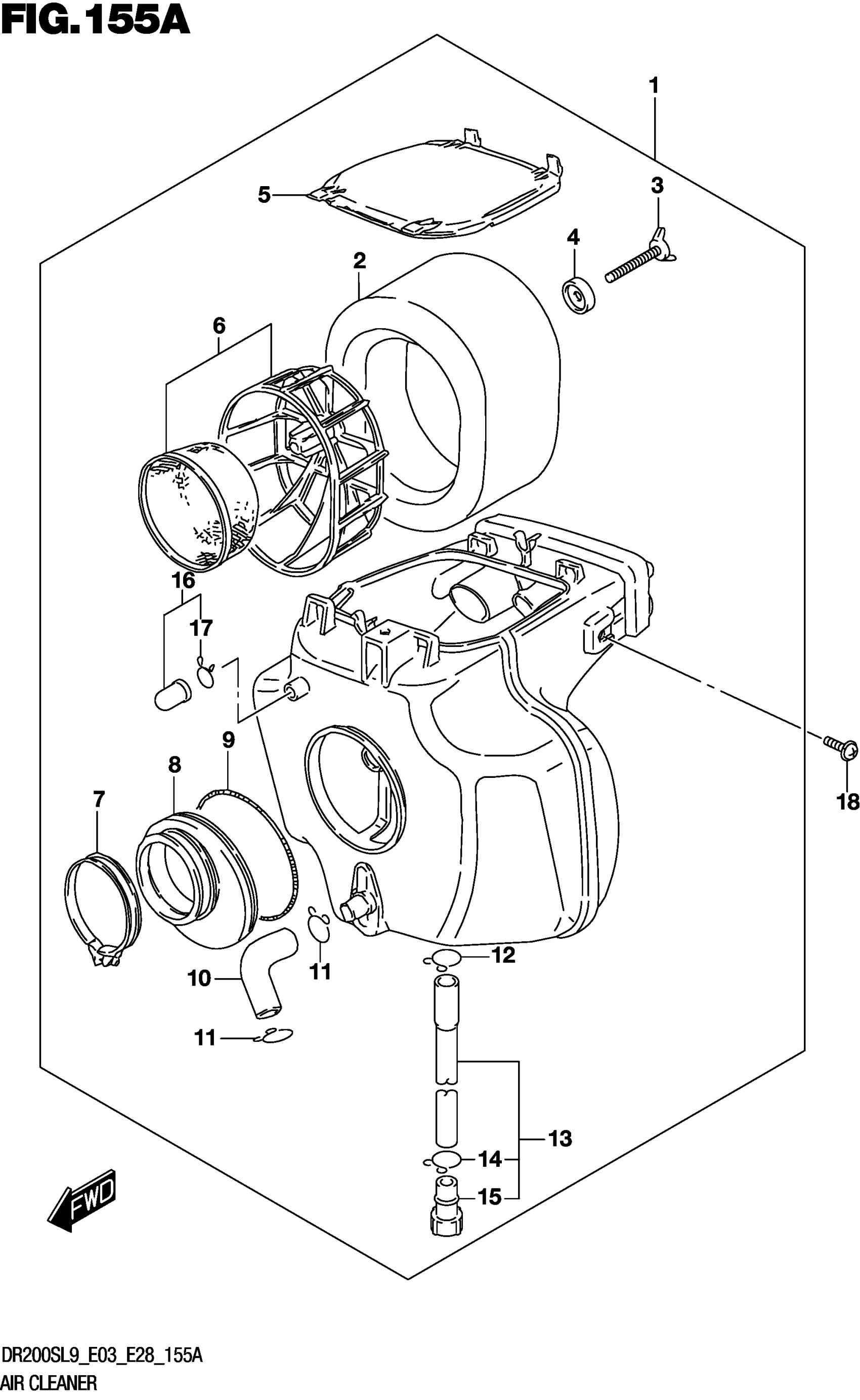

Find the part on the AIR Cleaner diagram for your 2019 Suzuki DR200SL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki DR200SL9 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY,AI This part replaces 13700-42A01.

13700-42A02

1
Out of stock

2

.FILTER

13780-42A01

1
Out of stock

3

.BOLT

13831-42A00

1
Out of stock

4

.WASHER

13796-16700

1
Out of stock

5

.CAP

13740-42A00

1
Out of stock

6

.HOLDER

13790-42A00

1
Out of stock

7

.CLAMP

09402-56901

1
Out of stock

8

TUBE,AIR CLEANE This part replaces 13881-42A00.

13881-42A01

1
Out of stock

9

.CLAMP

13826-38300

1
Out of stock

10

.TUBE

13853-42A00

1
Out of stock

11

.CLIP

09401-14301

2
Out of stock

12

CLIP This part replaces 13824-00A00.

09401-13409

1
Out of stock

13

TUBE,DRAIN This part replaces 13870-11458.

13870-11459

1
Out of stock

14

CLIP This part replaces 13824-18910.

09401-11101

1
Out of stock

15

..STOPPER

13877-38A00

1
Out of stock

16

PLUG,DRAIN This part replaces 13870-14F00.

13870-14F01

1
Out of stock

17

.CLIP (ID:16.5)

09401-16401

1
Out of stock

18

SCREW

02112-3616A

3
Out of stock
