2013 Suzuki DR200SE Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2013 Suzuki DR200SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

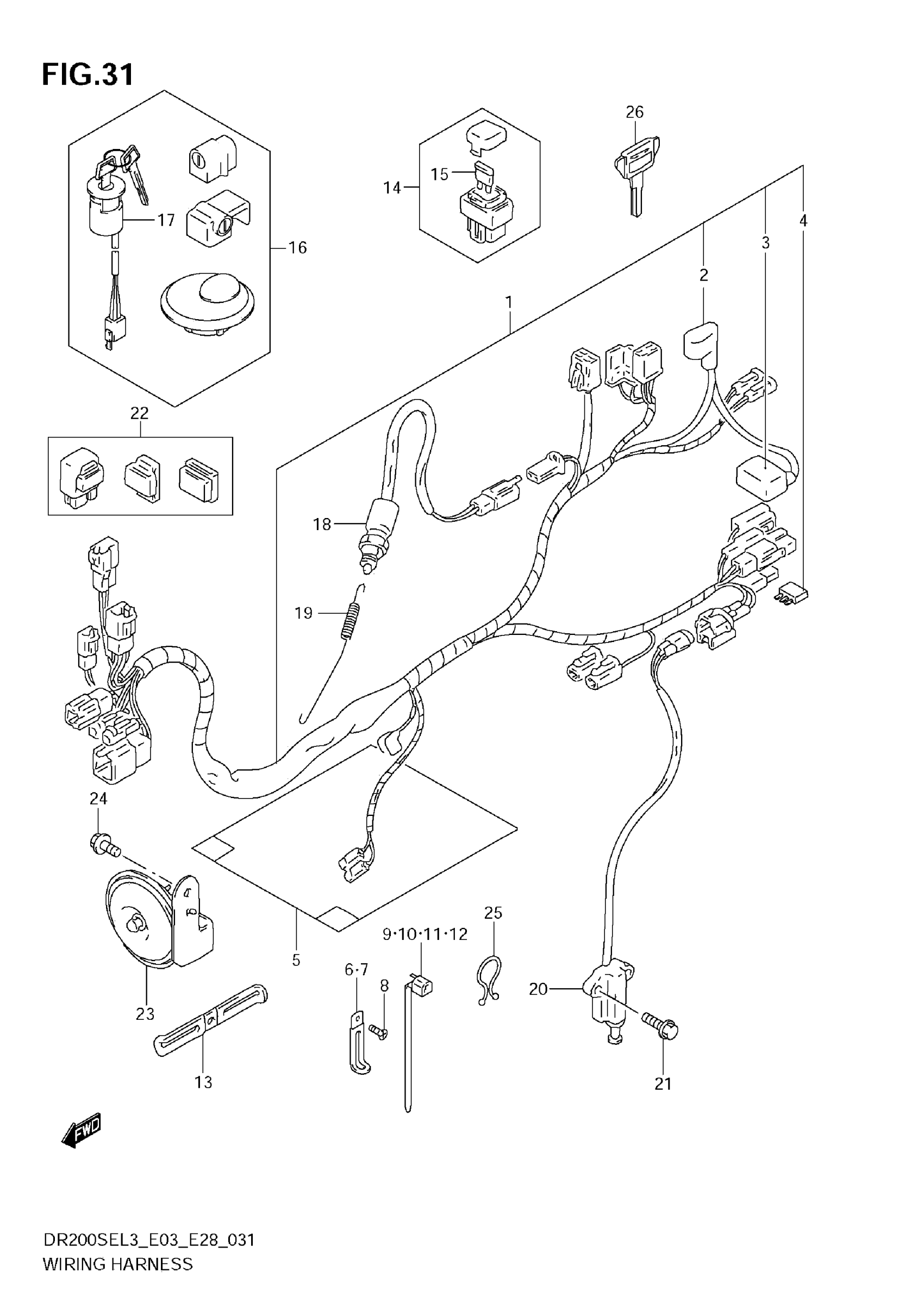

2013 Suzuki DR200SE Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING

36610-42A50

1
Out of stock

2

CAP, STARTER RELAY

31861-10D00

1
Out of stock

3

CAP, BATTERY PLUS

33624-10D00

1

$7.12

In stock

4

1

$13.49

In stock

5

COVER WIRING HARNESS This part replaces 36618-15D20.

36618-15D21

2
Out of stock

6

CLAMP (L:45)

09404-06429

4
Out of stock

7

2

$1.89

In stock

8

SCREW

03541-0410B

3
Out of stock

9

CLAMP (L:95)

09407-11401

1
Out of stock

10

CLAMP (L:125)

09407-14403

5
Out of stock

11

CLAMP (L:165)

09407-18402

7
Out of stock

12

CLAMP (L:235)

09407-25401

1
Out of stock

13

CLAMP, STARTER MOTOR LEAD

36651-05301

1
Out of stock

14

FUSE ASSY

36740-24B01

1

$31.82

In stock

15

FUSE (20A)

09481-20101

2

$2.31

In stock

16

LOCK SET

37000-44871

1
Out of stock

17

SWITCH ASSY, IGNITION

37110-44A20

1

$117.03

In stock

18

1

$20.62

In stock

19

SPRING

09443-06064

1

$5.65

In stock

20

1

$75.68

In stock

21

BOLT

01550-0620B

2
Out of stock

22

RELAY ASSY, SIDE STAND

38740-24X50

1
Out of stock

23

HORN ASSY

38500-44B00

1

$98.98

In stock

24

BOLT

01550-0612A

1
Out of stock

25

CLIP (ID:11.5)

09408-00012

2

$2.68

In stock

26

KEY, BLANK | OPT

37146-03A00

1

$10.16

In stock

26

KEY, BLANK | OPT

37146-03A10

1

$13.13

In stock

26

KEY, BLANK | OPT

37146-03A20

1

$13.65

In stock

26

KEY, BLANK | OPT

37146-03A30

1

$10.54

In stock
