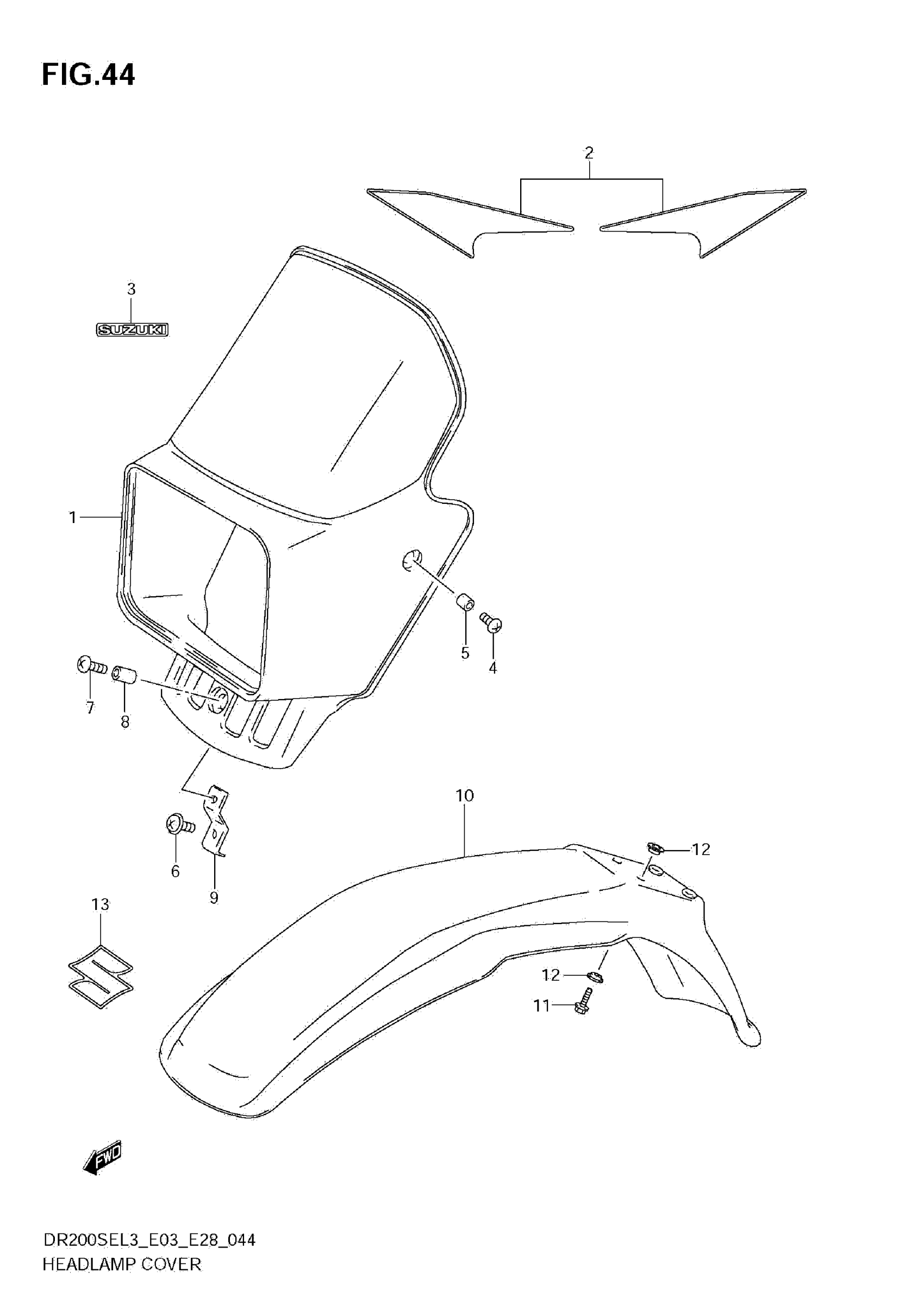

Suzuki DR200SE (2013) HEADLAMP COVER Diagram

#

Description
Price

1

COVER, HEADLAMP (BLACK)

51811-14A30-019

$118.83

1

COVER, HEADLAMP (WHITE)

51811-14A30-30H

$114.58

2

TAPE SET, COVER | FOR 019

68720-42A10-HLV

Unavailable

2

TAPE SET, COVER | FOR 30H

68720-42A10-HLW

$33.82

3

EMBLEM,"SUZUKI" This part replaces 68721-05D00-YD8.

68721-05D01-YD8

$11.18

4

SCREW

02142-0612B

$1.89

5

SPACER (6.1X8X3.5)

09180-06245

$2.19

6

SCREW

02112-36127

$3.42

7

SCREW

02142-0620B

$2.27

8

SPACER (6.1X8X12)

09180-06249

$2.65

9

BRACE, COVER LOWER

51814-44A00

$6.22

10

FENDER, FRONT (BLACK)

53111-44A20-019

Unavailable

10

FENDER, FRONT (WHITE)

53111-44A20-30H

$162.87

11

BOLT

01550-0616A

$2.01

12

WASHER (6.3X16X1)

09169-06053

$1.15

13

EMBLEM,S(SILVER This part replaces 68151-07G10-YD8.

68151-07G11-YD8

$13.10
