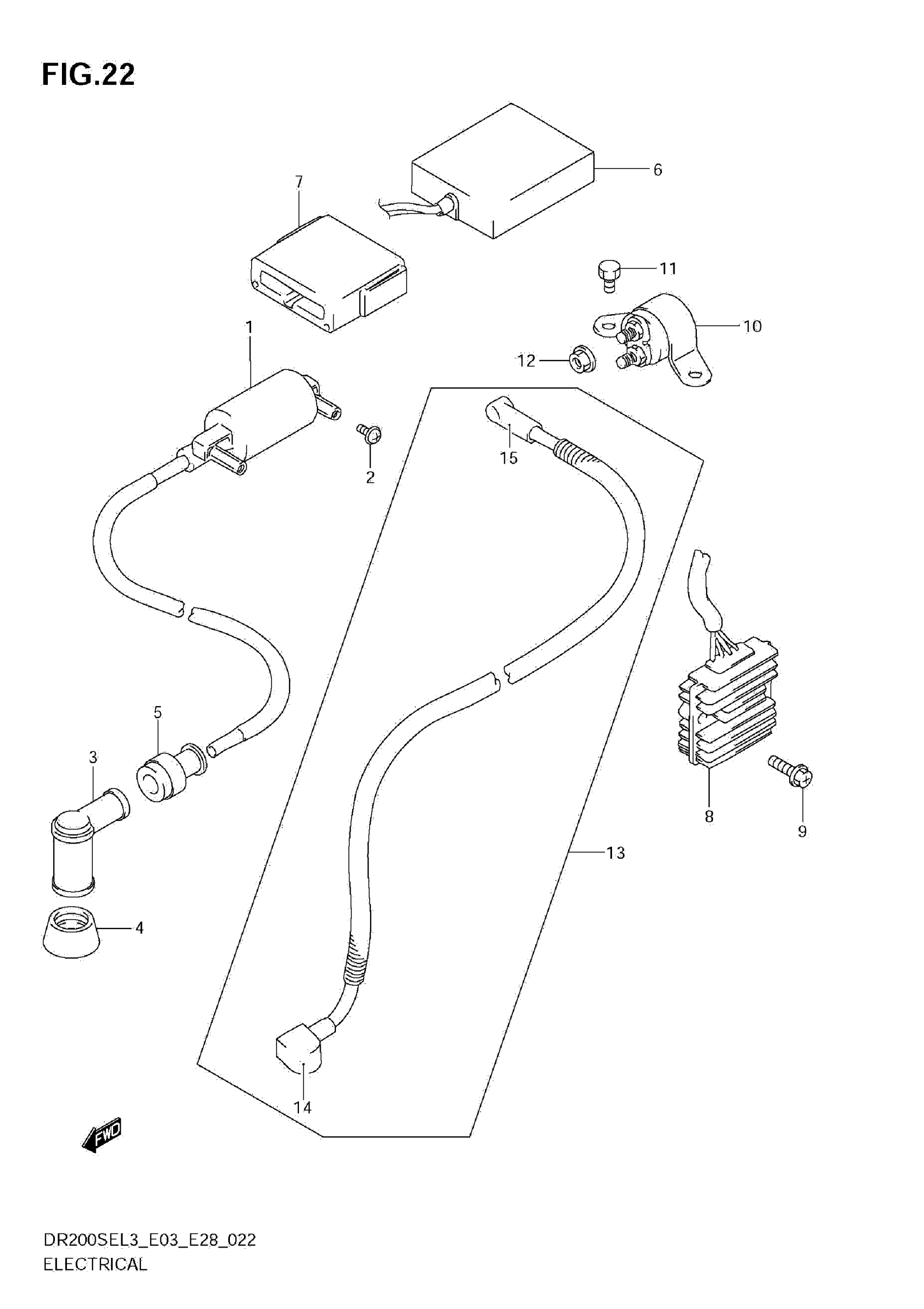

Suzuki DR200SE (2013) ELECTRICAL Diagram

#

Description
Price

1

COIL ASSY, IGNITION

33410-05350

$152.47

2

SCREW

02142-0510B

$1.82

3

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$14.10

4

SEAL, SPARK PLUG

33541-38210

$4.60

5

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15

6

CDI UNIT

32900-42A30

Unavailable

7

CUSHION, CDI UNIT

32980-44A00

Unavailable

8

RECTIFIER ASSY

32800-08D10

$263.42

9

SCREW

02162-0625B

$2.65

10

RELAY ASSY, STARTING MOTOR

31800-15501

$93.55

11

SCREW (6X10)

09128-06044

$1.43

12

NUT

08361-3506A

$1.88

13

WIRE, STARTER MOTOR LEAD

33810-44A00

$74.48

14

CAP, STARTER MOTOR TERMINAL

31861-06C00

Unavailable

15

CAP, STARTER RELAY

31861-10D00

Unavailable
