2009 Suzuki DR-Z70 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2009 Suzuki DR-Z70, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

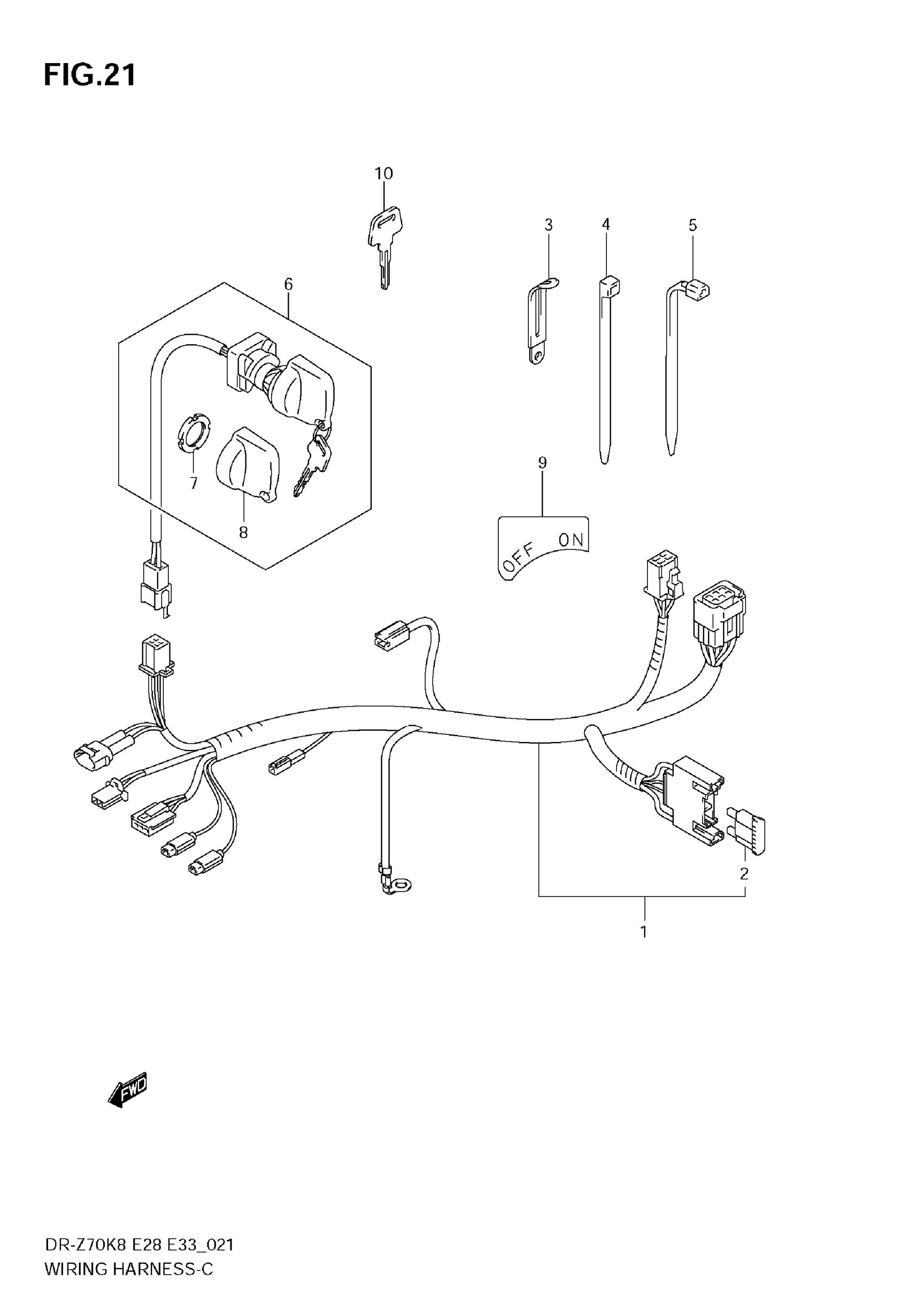

2009 Suzuki DR-Z70 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

FUSE (10A)

09481-10101

1

$1.80

In stock

3

CLAMP (L:45)

09404-06429

1
Out of stock

4

CLAMP (L:45)

09407-14407

2
Out of stock

5

CLAMP (L:235)

09407-25401

1
Out of stock

7

.NUT,IGNITION SWITCH

37112-24500

1
Out of stock

8

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

1
Out of stock

9

PLATE, CONTROL IDENTIFICATION

37139-09D30

1
Out of stock

10

1

$25.92

In stock

10

KEY, BLANK (TYPE:D) | OPT

37146-09D10

1
Out of stock

10

KEY, BLANK (TYPE:E) | OPT

37146-09D20

1
Out of stock

10

KEY, BLANK (TYPE:F) | OPT

37146-09D30

1
Out of stock
← Starting Motor Footrest →
