2009 Suzuki DR-Z70 Magneto Diagram

← All diagrams

Find the part on the Magneto diagram for your 2009 Suzuki DR-Z70, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

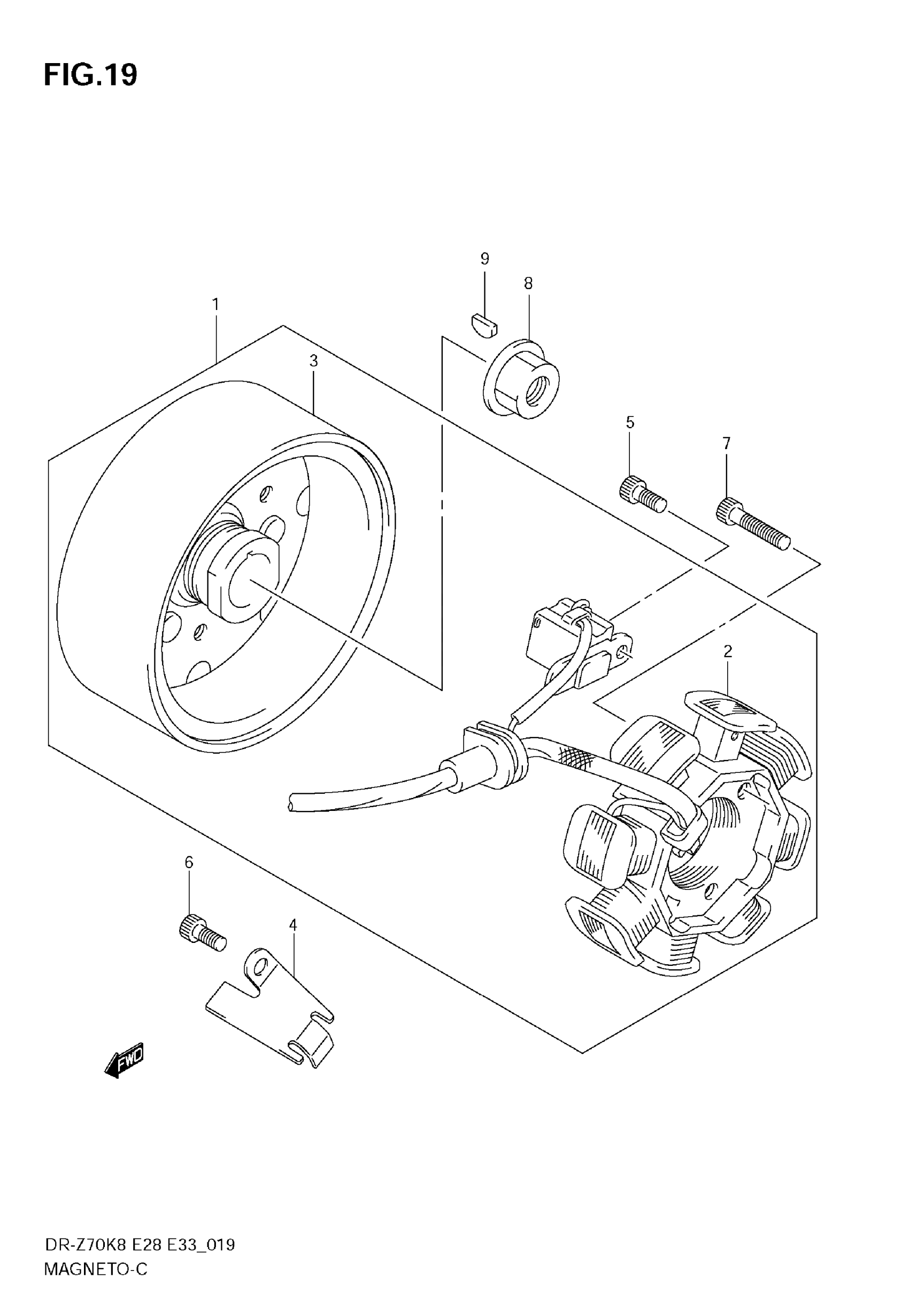

2009 Suzuki DR-Z70 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAGNETO ASSY | Includes Item(s) 2 - 3

32100-14H00

1
Out of stock

2

STATOR ASSY, MAGNETO

32101-14H00

1
Out of stock

3

ROTOR ASSY, MAGNETO

32102-14H00

1
Out of stock

4

CLAMP, MAGNETO LEAD WIRE

32371-30D00

1
Out of stock

5

SCREW, PULSER COIL

07130-0512A

2
Out of stock

6

BOLT, MAGNETO LEAD CLAMP

07130-0612A

1
Out of stock

7

BOLT, MAGNETO STATOR

07130-0620A

2
Out of stock

8

NUT, MAGNETO ROTOR

08316-1010A

1
Out of stock

9

KEY, MAGNETO

08341-31039

1
Out of stock
