2009 Suzuki DR-Z70 Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 2009 Suzuki DR-Z70, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

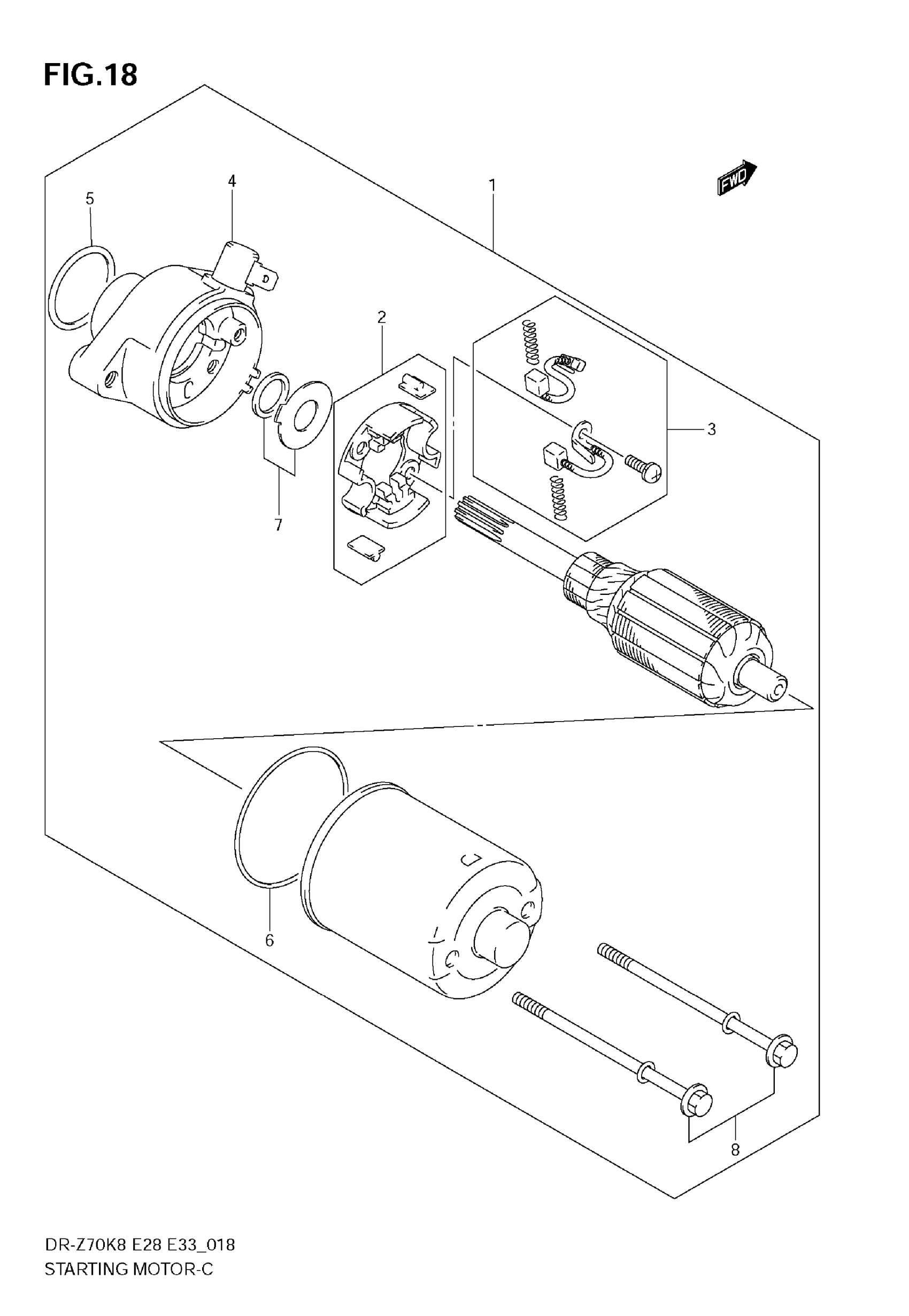

2009 Suzuki DR-Z70 Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 8

31100-30D00

1
Out of stock

2

HOLDER SET, BRUSH

31130-35400

1
Out of stock

3

BRUSH SET

31131-35400

1
Out of stock

4

HOUSING ASSY

31151-30D01

1
Out of stock

5

.O-RING (D:2.4,ID:24.7)

09280-25004

1
Out of stock

6

O RING

31158-35400

1
Out of stock

7

SHIM SET

31170-43400

1
Out of stock

8

BOLT SET

31280-31C00

1
Out of stock
