2009 Suzuki DR-Z70 Starter Clutch Diagram

← All diagrams

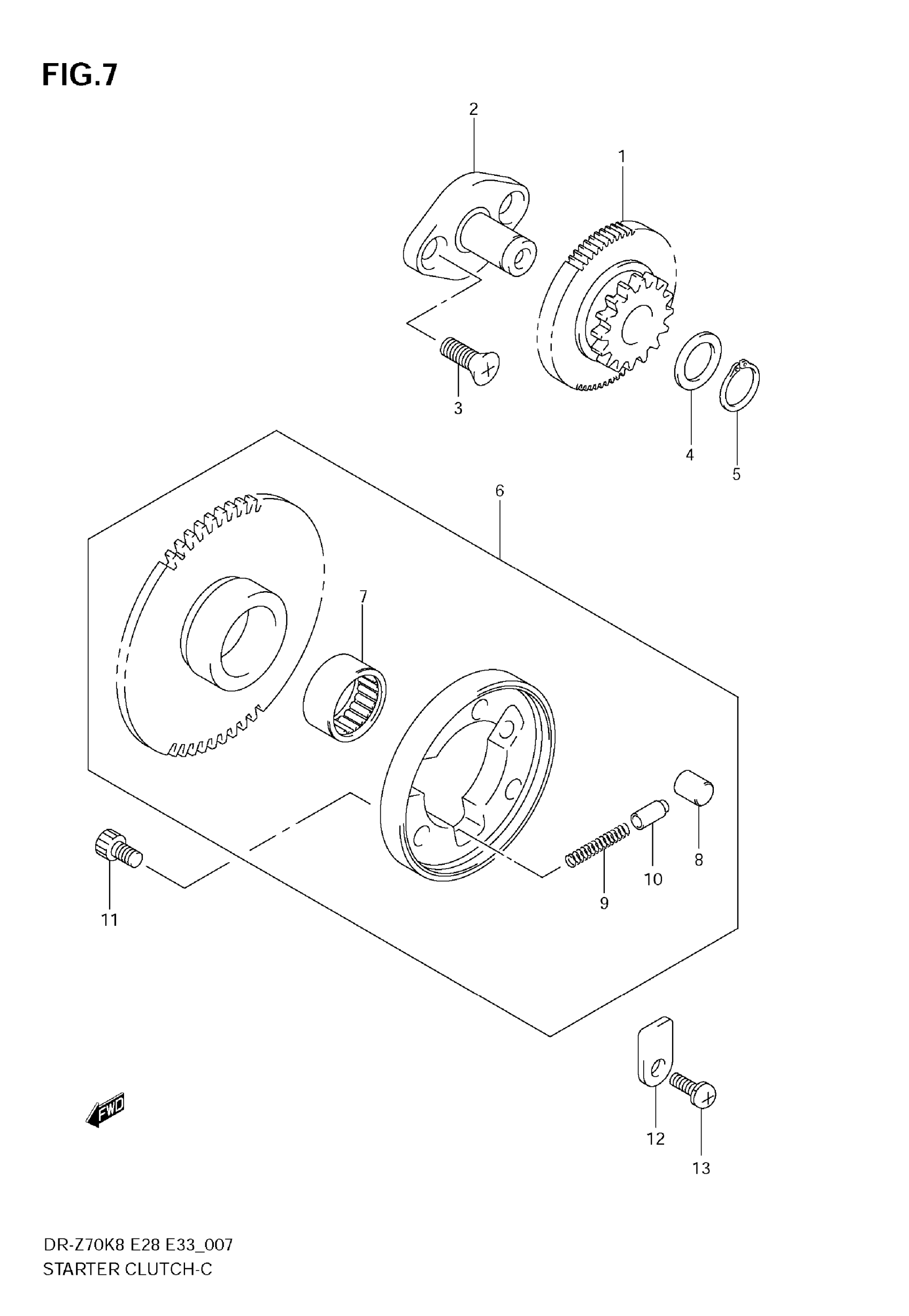

Find the part on the Starter Clutch diagram for your 2009 Suzuki DR-Z70, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki DR-Z70 Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, STARTER IDLE

12611-09410

1
Out of stock

2

SHAFT, STARTER IDLE GEAR

12612-23F00

1
Out of stock

3

SCREW

02122-0616A

2

$1.52

In stock

4

WASHER

09160-13010

1

$2.27

In stock

5

CIRCLIP This part replaces 08331-31136.

08331-3113A

1
Out of stock

7

BEARING

09263-17025

1
Out of stock

8

ROLLER

09261-09002

3

$3.80

In stock

9

SPRING

09440-03004

3
Out of stock

10

PIECE

12633-05300

3
Out of stock

11

BOLT

09106-06075

3
Out of stock

12

PLATE

12629-09410

1
Out of stock

13

SCREW

02112-3612A

1

$2.23

In stock
