2009 Suzuki DR-Z70 Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2009 Suzuki DR-Z70, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

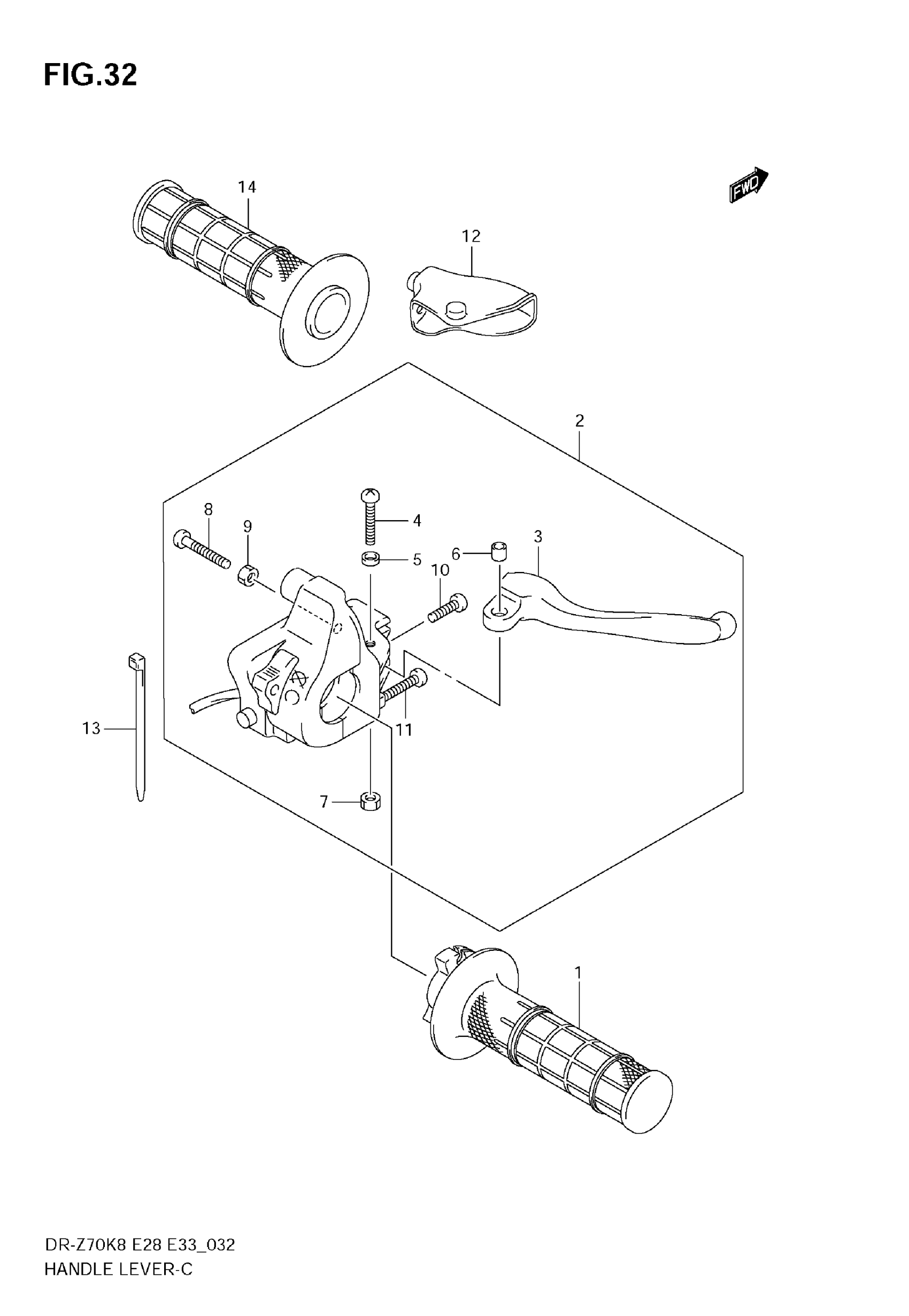

2009 Suzuki DR-Z70 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE

57110-14H00

1
Out of stock

2

LEVER ASSY,FR BRAKE & SWITCH | Includes Item(s) 3 - 11 This part replaces 57300-14H00.

57300-14H02

1
Out of stock

3

LEVER

57421-14H00

1
Out of stock

4

SCREW, PIVOT

02112-0525A

1
Out of stock

5

COLLAR

57336-09D00

1
Out of stock

6

SPACER

57435-12900

1
Out of stock

7

NUT

08319-2105A

1
Out of stock

8

SCREW, ADJUSTER

02112-0525A

1
Out of stock

9

NUT

08310-0005A

1
Out of stock

10

.SCREW

02112-0516A

2
Out of stock

11

.SCREW This part replaces 02112-0545A.

02112-0545B

1
Out of stock

12

COVER,BRAKE LEVER This part replaces 57314-14H00.

57314-14H01

1
Out of stock

13

CLAMP

09407-11401

1
Out of stock

14

GRIP, LH

57211-14H00

1
Out of stock
