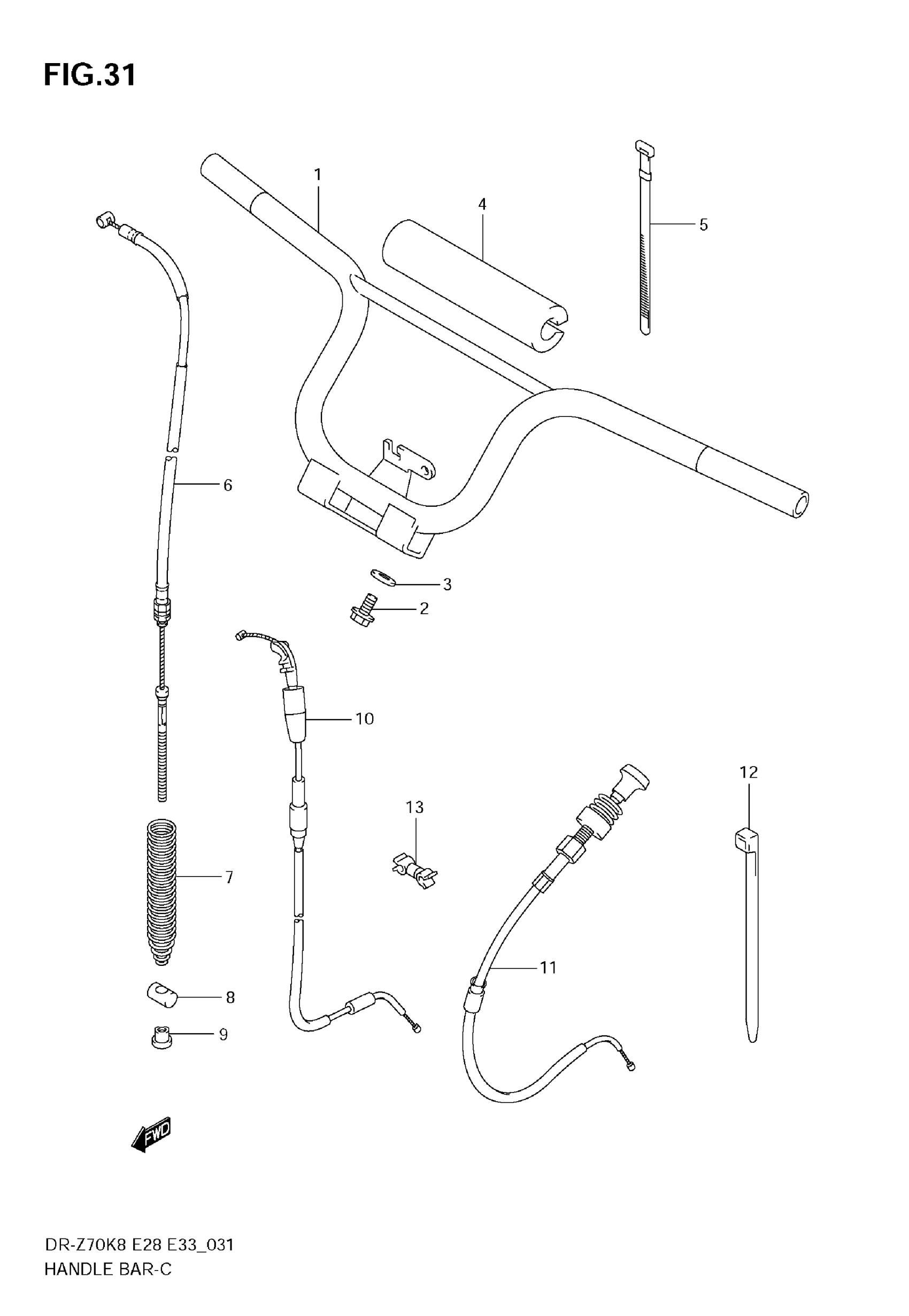

Suzuki DR-Z70 (2009) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (SILVER)

56110-14H00-13L

$273.25

2

BOLT (8X16)

01550-0816A

$2.31

3

WASHER

09160-08127

$2.13

4

PAD, CROSS

56172-14H00

Unavailable

5

CLAMP

09407-14401

$4.10

6

CABLE,FRONT BRAKE This part replaces 58110-14H00.

58110-14H01

$45.15

7

SPRING,FRONT BRAKE CABLE

58162-14H00

$9.55

8

PIN

09209-11002

$2.17

9

NUT

09150-06010

$2.80

10

CABLE ASSY,THROTTLE This part replaces 58300-14H00.

58300-14H01

$43.67

11

CABLE ASSY, STARTER

58400-14H00

$67.48

12

CLAMP

09407-10404

$2.71

13

CLIP

09408-00049

Unavailable
