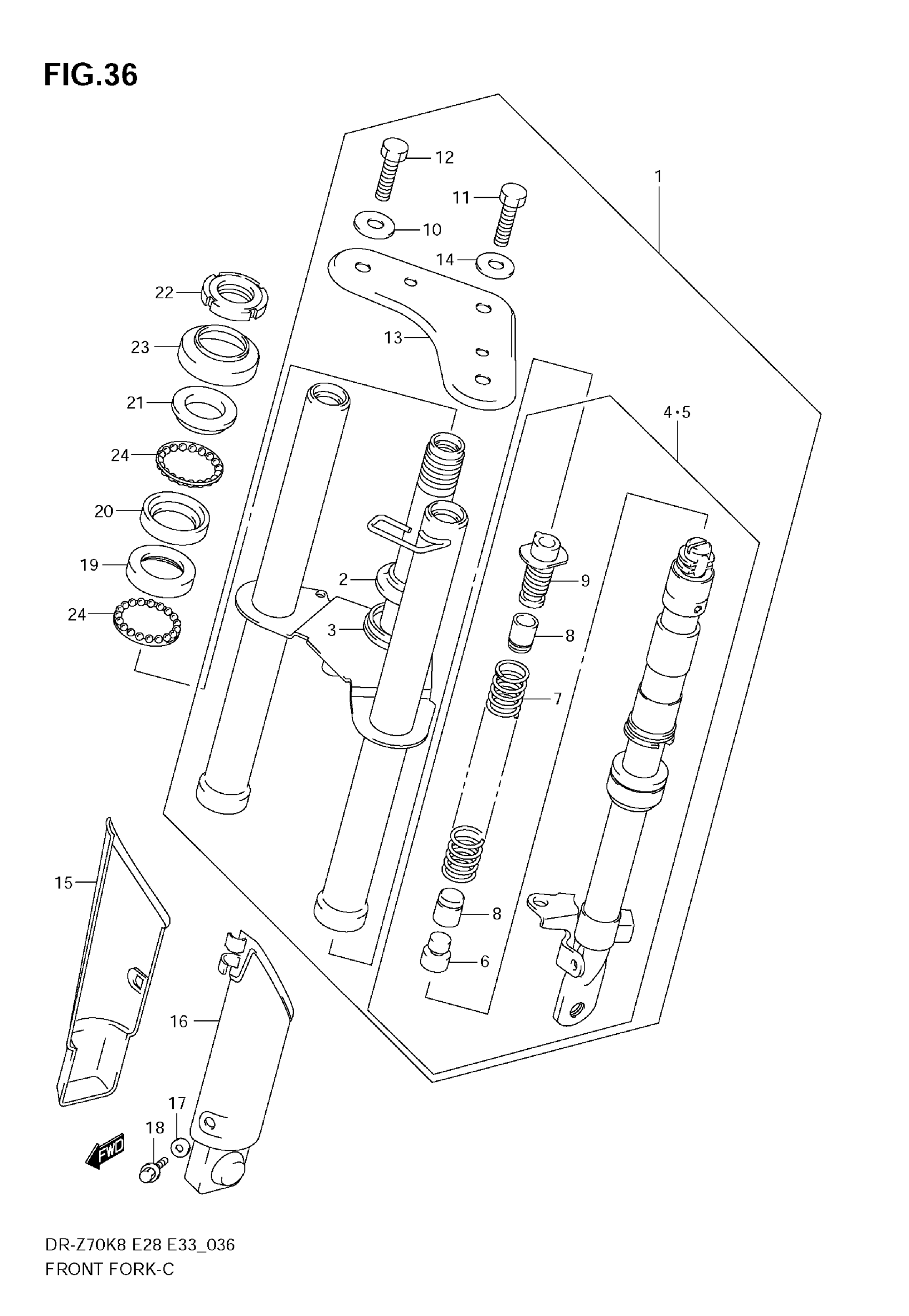

Suzuki DR-Z70 (2009) FRONT FORK Diagram

#

Description
Price

1

FORK SET,FRONT | Includes Item(s) 2 - 14 This part replaces 51100-14821.

51100-14831

$1,053.88

2

RACE, STEERING OUTER

51622-14H00

Unavailable

3

.SEAL,STEERING LWR This part replaces 51644-14H00.

51644-14H01

$8.53

4

TUBE ASSY, FRONT FORK LOWER, R

51110-14H00

$472.48

5

TUBE ASSY, FRONT FORK LOWER, L

51120-14H00

$428.98

6

STOPPER

51116-14H00

$11.55

7

SPRING

51171-14H00

Unavailable

8

STOPPER RUBBER

51292-14H00

$12.02

9

SPRING, JOINT B

51422-14H00

Unavailable

10

WASHER (10X30X2.5)

09160-10144

$5.75

11

BOLT, FR FORK UPPER

01550-1035A

$3.25

12

BOLT, FR FORK UPPER

01550-1035A

$3.25

13

BRACKET, UPPER

51310-14H00

$73.33

14

WASHER This part replaces 09160-10033.

09160-10128-XC0

$2.64

15

PROTECTOR,FR FO This part replaces 51501-14H00.

51501-14H00-30H

$21.75

16

PROTECTOR,FR FO This part replaces 51511-14H00.

51511-14H00-30H

$21.75

17

WASHER, FRONT FORK PROTECTOR

09169-06071

$2.50

18

BOLT, FRONT FORK PROTECTOR

01547-0612A

$2.01

19

RACE, STEERING INNER

51611-14H00

$14.65

20

RACE,STEERING INNER UPPER

51611-20002

$13.50

21

RACE,STEERING OUTER UPPER

51621-28000

$13.50

22

NUT, STEERING STEM

51631-28000

$19.60

23

DUST SEAL,STEERING UPPER

51643-25001

$4.17

24

BEARING,27X40.5X5 (27X40.5X5)

09269-27001

$16.65
