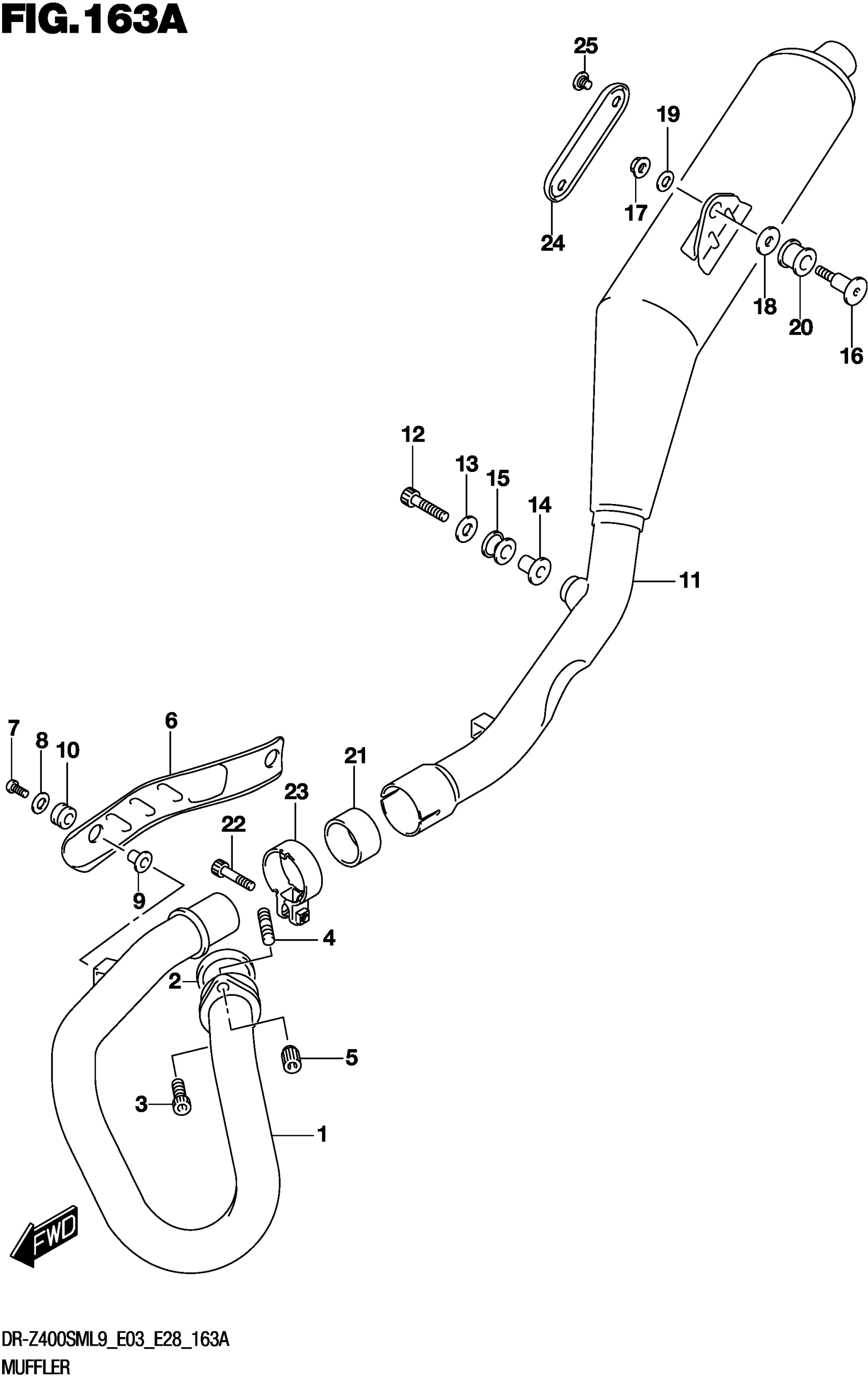

Find the part on the Muffler diagram for your 2019 Suzuki DR-Z400SML9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki DR-Z400SML9 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE EXHAUST

14150-29F10

1
Out of stock

2

.GASKET EXHAUST PIPE

14181-29E02

1
Out of stock

3

BOLT

07130-0825A

1
Out of stock

4

BOLT,STUD

01421-0816A

1
Out of stock

5

NUT

09159-08112

1
Out of stock

6

COVER EXHAUST PIPE

14180-29F30

1
Out of stock

7

SCREW (6X16)

09139-06109

2
Out of stock

8

WASHER (6.5X18X1.0)

09160-06056

2
Out of stock

9

SPACER, EXHAUST PIPE COVER

14185-07G00

2
Out of stock

10

CUSHION (8.4X18X6)

09320-08066

2
Out of stock

11

BODY MUFFLER

14310-29FA0-H01

1
Out of stock

12

BOLT (8X35)

09106-08133

1
Out of stock

13

WASHER (8.5X26X1.6)

09160-08151

1
Out of stock

14

SPACER (8.6X12X17.5)

09180-08151

1
Out of stock

15

CUSHION

09320-12043

1
Out of stock

16

BOLT MUF SPRT RR

14419-29F00

1
Out of stock

17

NUT

08319-3108A

1
Out of stock

18

WASHER (8.5X30X2.3)

09160-08503

1
Out of stock

19

WASHER

08322-0108A

1
Out of stock

20

CUSHION (12X30X24)

09320-12048

1
Out of stock

21

CONNECTOR MUFFLER JOINT

14771-29F10

1
Out of stock

22

BOLT

07120-0840A

1
Out of stock

23

CLAMP MUFFLER CONNECTOR

14459-29F10

1
Out of stock

24

COVER MUFFLER

14782-29F00

1
Out of stock

25

SCREW

14789-29F01

2
Out of stock
