2019 Suzuki DR-Z400SML9 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2019 Suzuki DR-Z400SML9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

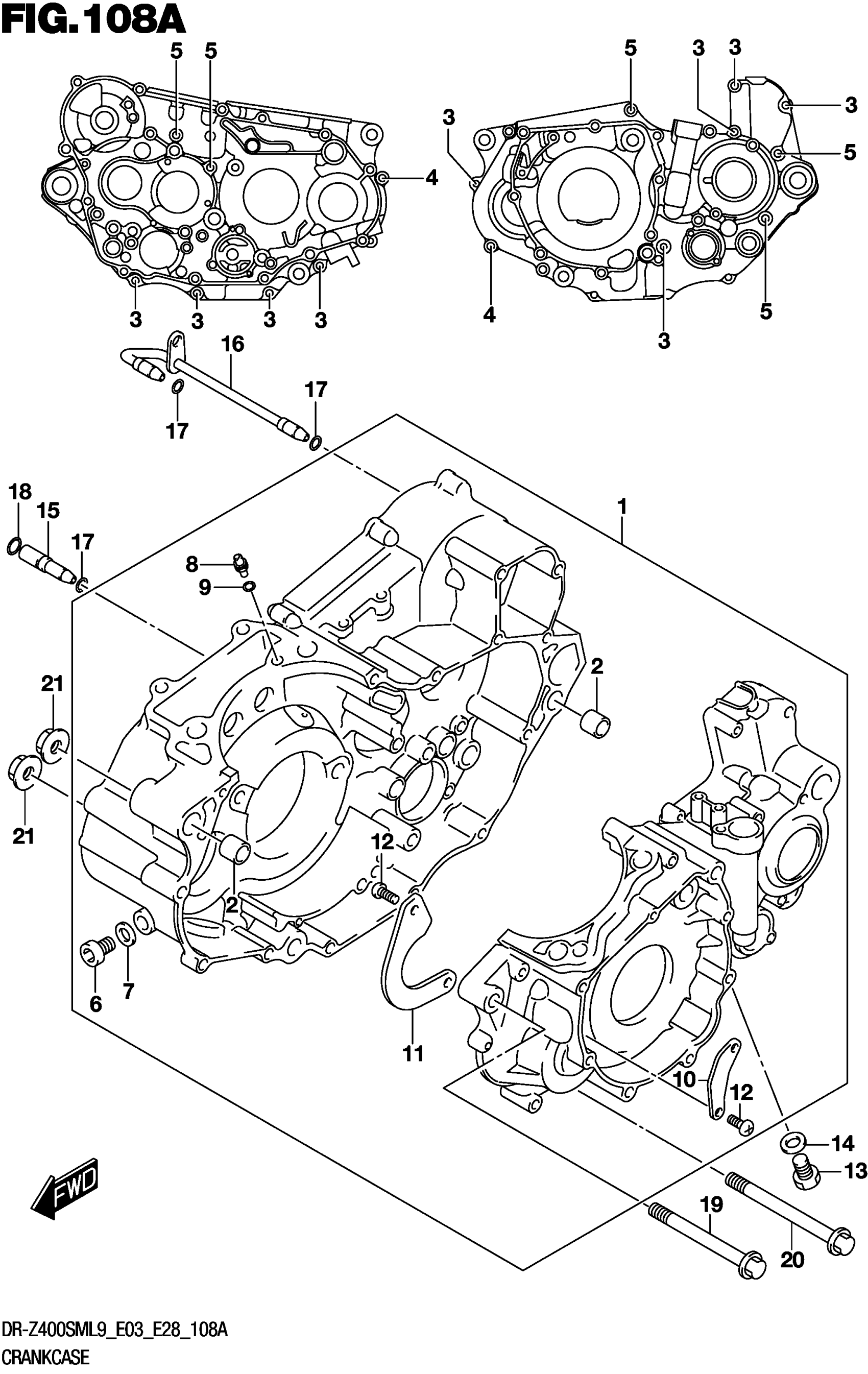

2019 Suzuki DR-Z400SML9 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET This part replaces 11301-29853.

11301-29854

1
Out of stock

2

PIN (10.4X13X18)

04211-13189

2
Out of stock

3

BOLT

01547-0640A

9
Out of stock

4

.BOLT

01547-0655A

2
Out of stock

5

.BOLT

01547-0670A

5
Out of stock

6

PLUG (10X10)

09248-10010

1
Out of stock

7

GASKET (10X14X3.6)

09168-10002

1
Out of stock

8

JET (#8)

09493-80005

1
Out of stock

9

O-RING (D:1.2,ID:4)

09280-04004

1
Out of stock

10

.SEPARATOR CRANKCASE OIL NO.1

11323-29F00

1
Out of stock

11

.SEPARATOR CRANKCASE OIL NO.2

11324-29F00

1
Out of stock

12

SCREW (6X12)

09125-06122

4
Out of stock

13

PLUG (12X20) | OIL DRAIN

09247-12011

1
Out of stock

14

GASKET (12.1X16.2X3.7)

09168-12002

1
Out of stock

15

PIPE OIL INNER NO.1

11451-29F00

1
Out of stock

16

PIPE T/M OIL INNER NO.2

11460-29F00

1
Out of stock

17

O-RING (D:1.9 ID:4.8)

09280-05004

3

$2.50

In stock

18

O-RING (D:1.9 ID:6.8)

09280-07004

1
Out of stock

19

BOLT ENGINE MOUNTING (L:90)

18601-29F11

1
Out of stock

20

BOLT (10X115)

09103-10063

1
Out of stock

21

NUT (M10)

09159-10115

2
Out of stock
