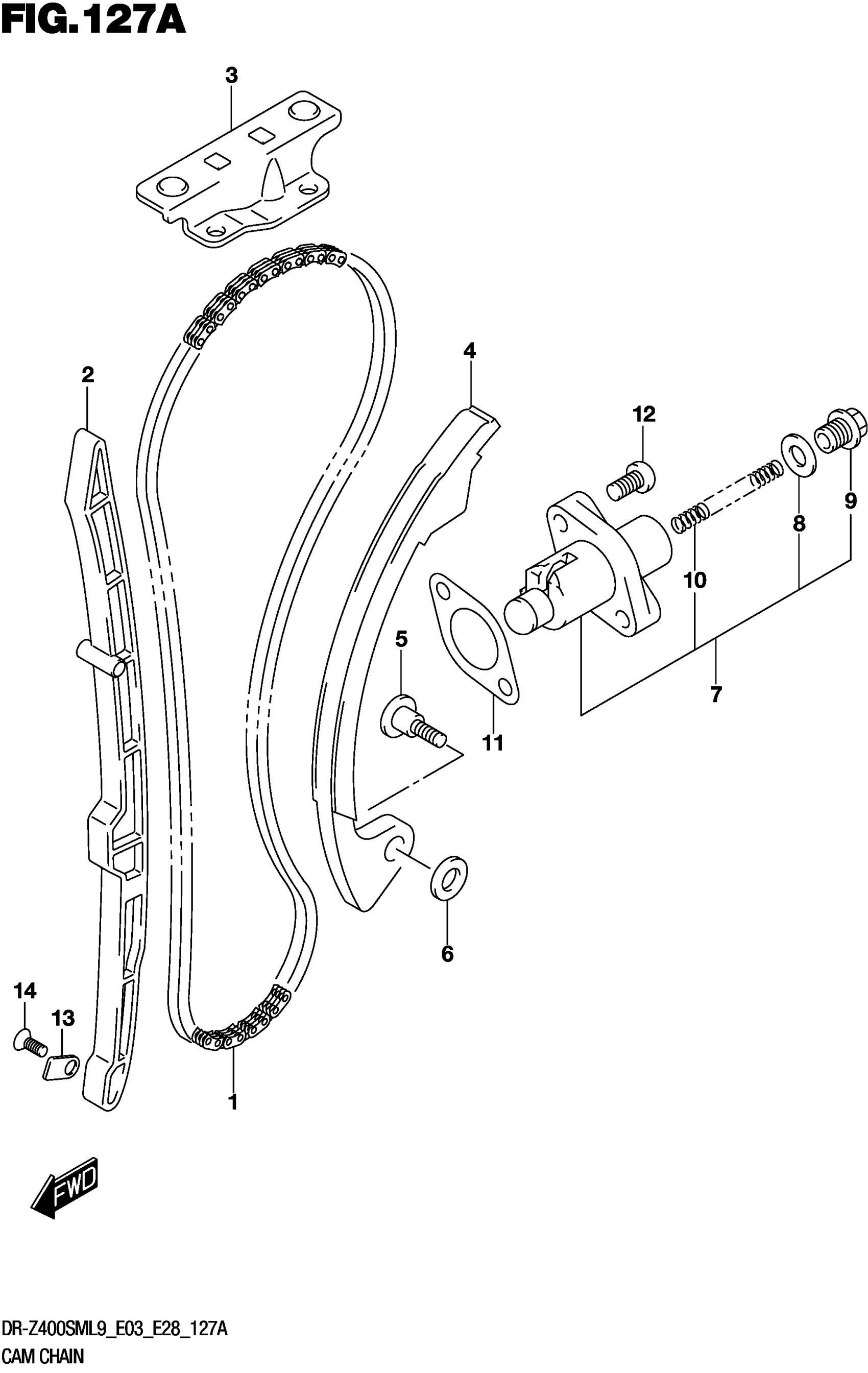

Suzuki DR-Z400SML9 (2019) CAM CHAIN Diagram

#

Description
Price

1

CHAIN CAMSHAFT DRIVE

12760-29F01

$93.01

2

GUIDE CAM CHAIN NO.1

12771-29F00

$32.01

3

GUIDE CAM CHAIN NO.2

12782-29F00

$28.03

4

TENSIONER CAM CHAIN This part replaces 12811-29F10.

12811-29F11

$45.80

5

BOLT,CAM CHAIN TENSIONER

12812-35C00

$8.59

6

WASHER

08211-06181

$1.79

7

ADJUSTER ASSY TENSIONER

12830-29F10

$133.29

8

.GASKET,TENSIONER ADJUSTER

12837-24F10

$4.57

9

.PLUG

12833-05A00

$21.62

10

.SPRING

12831-39F00

$5.67

11

.GASKET,TENSIONER ADJUSTER

12837-24A10

$3.11

12

BOLT (6X25)

07130-0625A

$2.74

13

RETAINER CAM CHAIN GUIDE NO.1

12773-24F00

$4.53

14

SCREW (6X12)

09126-06011

$2.09
