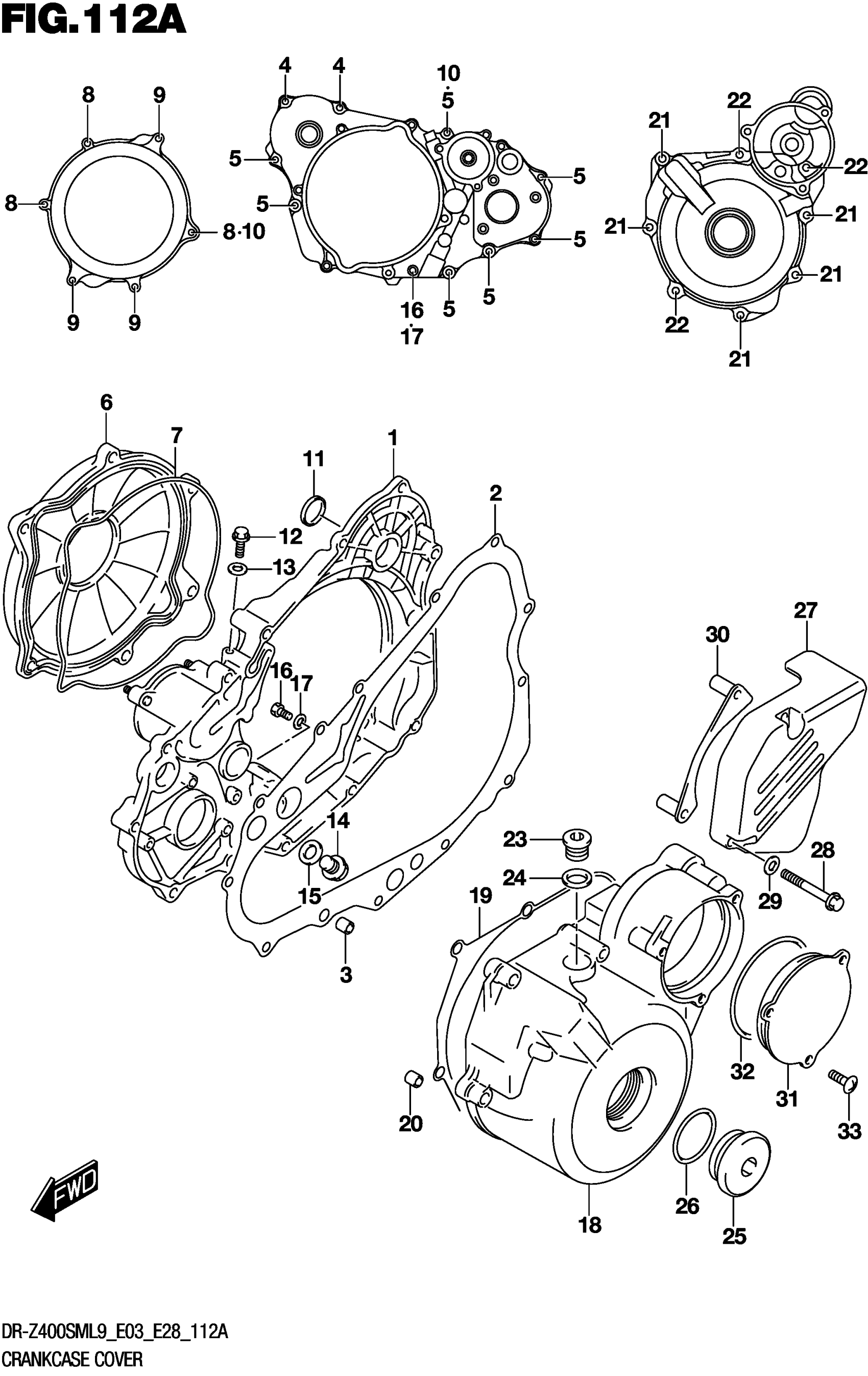

Suzuki DR-Z400SML9 (2019) CRANKCASE COVER Diagram

#

Description
Price

1

COVER CLUTCH INNER

11341-29F50

$336.82

2

.GASKET CLUTCH COVER

11482-29F00

$16.89

3

PIN (8.5X18X2.3)

04211-09149

$1.70

4

BOLT

01547-0620A

$2.10

5

BOLT

01547-0630A

$2.38

6

COVER CLUTCH OUTER

11371-29F50

$151.81

7

.O-RING CLUTCH COVER OUTER

11484-29F00

$21.58

8

BOLT

01547-0620A

$2.10

9

.BOLT

01547-0655A

$2.53

10

GASKET (5.8X13X1.2)

09168-06023

$2.09

11

PLUG CLUTCH COVER KICK

11342-15D00

$8.20

12

BOLT

01547-0612A

$2.09

13

GASKET (5.8X13X1.2)

09168-06023

$2.09

14

PLUG (12X10)

09247-12006

$2.80

15

GASKET (12.1X16.2X3.7)

09168-12002

$1.63

16

BOLT

01550-0610A

$2.01

17

GASKET (6.2X11X1.2)

09168-06004

$1.46

18

COVER MAGNETO

11351-29F60

$233.42

19

.GASKET MAGNETO COVER

11483-29F00

$12.79

20

PIN (8.5X18X2.3)

04211-09149

$1.70

21

BOLT

01547-0630A

$2.38

22

BOLT

01547-0640A

$2.38

23

PLUG (14X12)

09248-14011

$2.81

24

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

25

PLUG (36X10,SILVER)

09259-36016-20H

$12.83

26

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.31

27

COVER ENGINE SPROCKET (UNIFIE

11360-29F50

$86.12

28

BOLT

01547-0650A

$2.51

29

WASHER (6.5X14X2.0)

09160-06126

$1.99

30

PLATE FR CHAIN GUIDE (15T)

27640-29F11

$20.78

31

COVER STARTER IDLE GEAR

11352-29F50

$35.20

32

.O-RING (D:2.6,ID:67.1)

09280-71008

$6.40

33

SCREW

02142-0616A

$1.41
