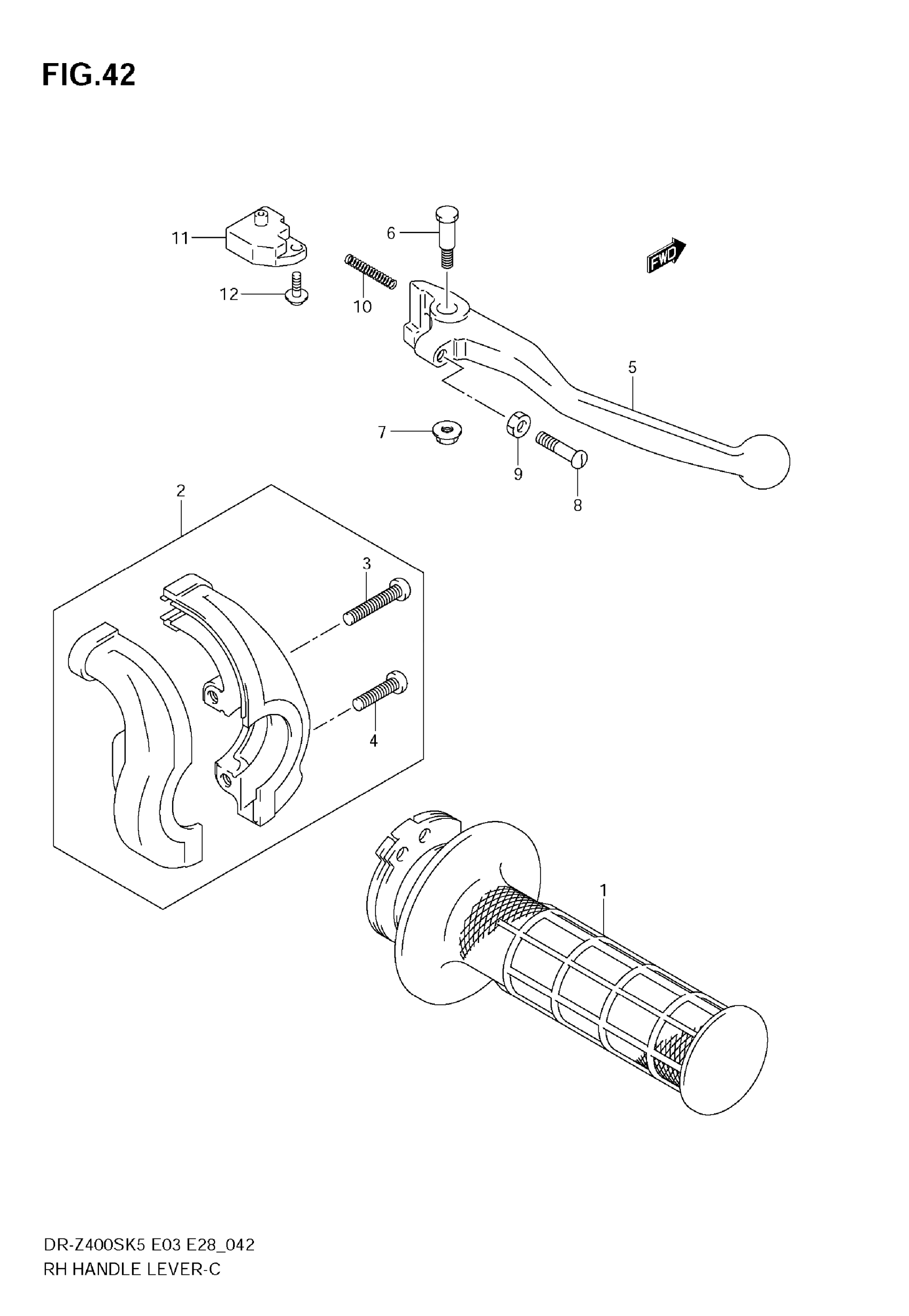

Suzuki DR-Z400S (2009) RIGHT HANDLE LEVER Diagram

#

Description

Price

1

GRIP THROTTLE

57110-12D11

$33.97

2

CASE ASSY THROTTLE | Includes Item(s) 3 - 4

57100-14D00

$93.58

3

SCREW, UPPER (5X25)

09125-05066

$1.52

4

SCREW

02112-0520B

$1.86

5

LEVER, BRAKE

57421-44E00

$12.99

6

BOLT, BRAKE LEVER

57431-14500

$5.75

7

NUT

08319-2106A

$1.89

8

BOLT, ADJUST

57431-14511

$5.46

9

NUT This part replaces 08310-0005B.

08310-0005A

$1.83

10

SPRING, RETURN

57318-14502

$4.09

11

SWITCH ASSY,FR BRAKE | Includes Item(s) 12 This part replaces 57460-17C11.

57460-14J02

$35.21

12

SCREW

57465-17C00

$2.37
