2009 Suzuki DR-Z400S Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2009 Suzuki DR-Z400S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

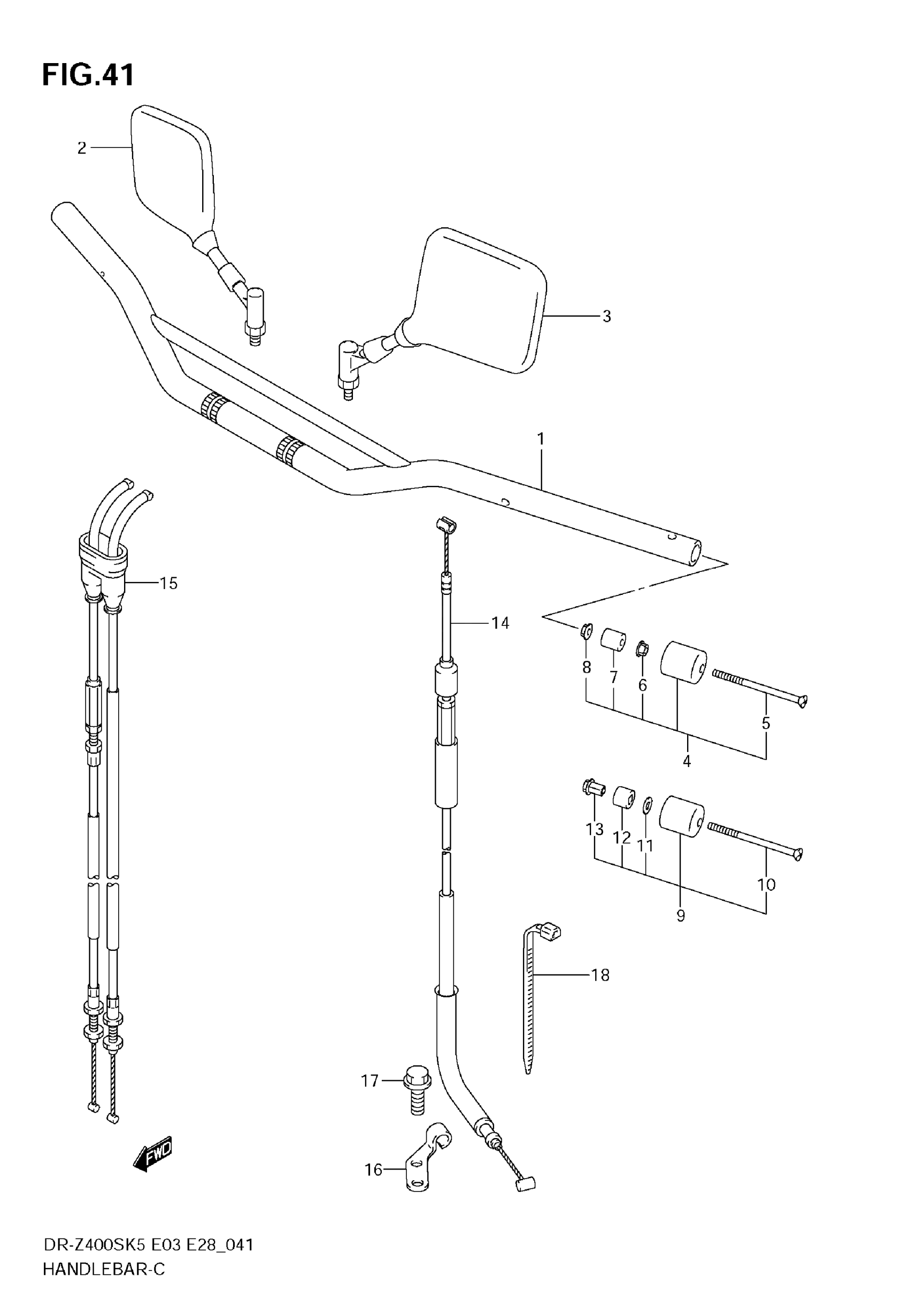

2009 Suzuki DR-Z400S Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR (SILVER)

56110-29F10-13L

1

$181.56

In stock

2

1

$167.98

In stock

3

1

$167.98

In stock

4

BALANCER SET,HA | MODEL K5; Includes Item(s) 5 - 8 This part replaces 56200-32821.

56200-32823

2
Out of stock

5

SCREW | MODEL K5 This part replaces 02122-06803.

02122-0680B

2
Out of stock

6

NUT | MODEL K5 This part replaces 08316-10083.

08316-1008B

2
Out of stock

7

EXPANDER | MODEL K5

56272-44500

2
Out of stock

8

NUT | MODEL K5

09159-06024

2
Out of stock

10

2

$3.00

In stock

11

WASHER | MODEL K6/K7/K8/K9

09160-06131

2
Out of stock

12

2

$6.75

In stock

13

NUT | MODEL K6/K7/K8/K9

56273-10G10

2
Out of stock

14

CABLE, CLUTCH

58200-29F10

1

$33.12

In stock

15

1

$62.70

In stock

16

STOPPER, CLUTCH CABLE

58634-29F00

1
Out of stock

17

BOLT, STOPPER | MODEL K5

09103-06092

2
Out of stock

17

BOLT, STOPPER | MODEL K6/K8/K9

01550-0612B

2
Out of stock

17

BOLT, STOPPER | MODEL K7

01550-0612A

2
Out of stock

18

CLAMP

09407-14407

1
Out of stock

18

CLAMP

09407-10404

1
Out of stock

18

CLAMP

09407-25401

2
Out of stock
