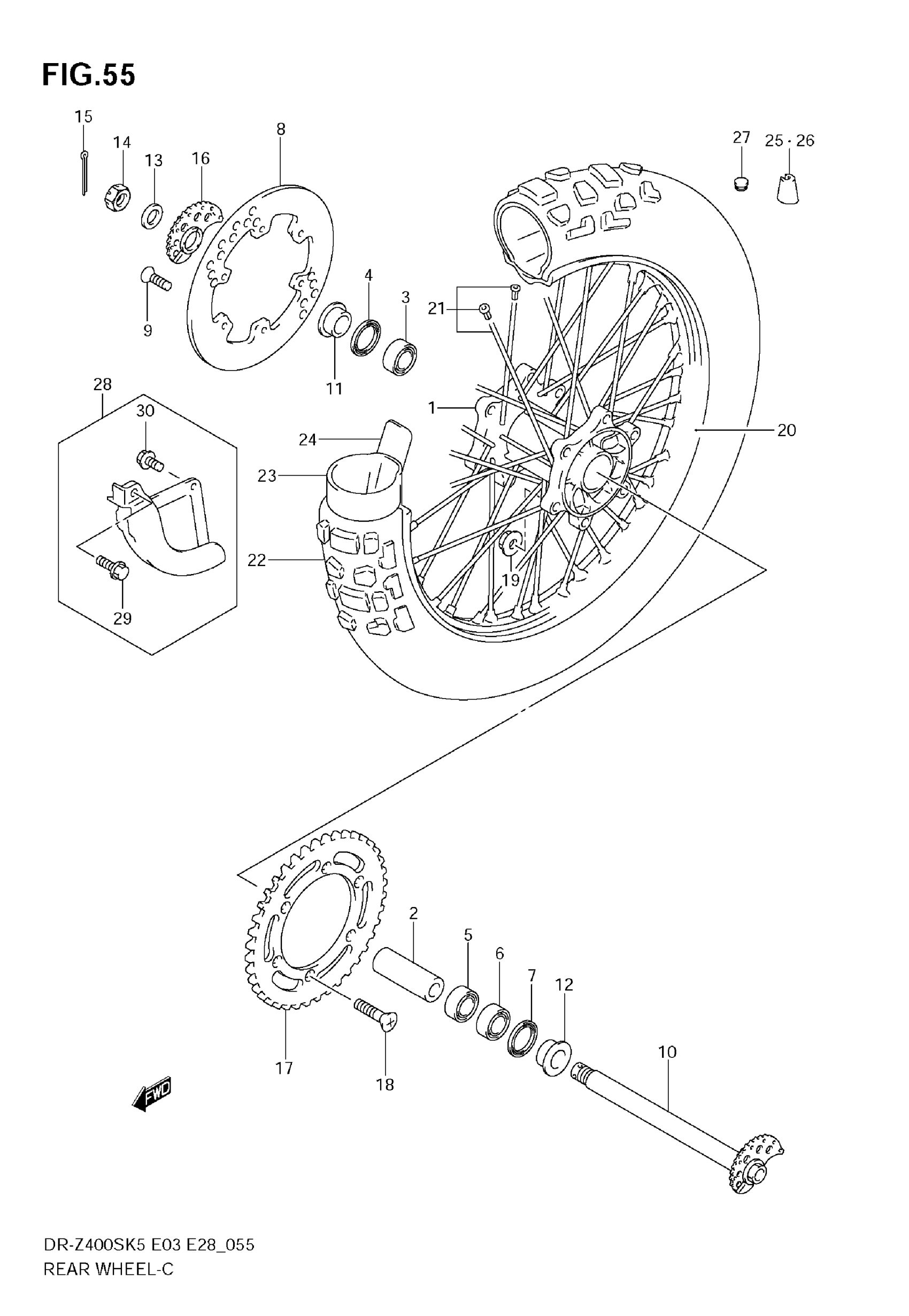

Description

Price

1

HUB, REAR WHEEL

64111-29F10

$525.57

2

SPACER, BEARING

64731-29F00

$35.88

3

BEARING, RH

08133-60047

$23.64

4

SEAL (29X42X6) This part replaces 64841-28E00.

64841-28E01

$7.22

5

BEARING, LH

08133-60047

$23.64

6

BEARING This part replaces 08123-62047.

08123-6204B

$15.93

7

SEAL, LH (29X47X5)

09283-29006

$10.40

8

DISC, REAR BRAKE

69211-43D00

$333.07

9

SCREW (6X17.5)

09120-06014

$2.43

10

AXLE, REAR | MODEL K5/K6/K7/K8

64710-29F10

$162.60

10

AXLE, REAR | MODEL K9

64710-29F00

$164.12

11

SPACER, RH

64751-28E20

$24.99

12

SPACER, LH

64751-28E20

$24.99

13

WASHER

09160-19022

$4.42

14

NUT | MODEL K5/K6/K7/K8

08314-4018B

$6.58

14

NUT | MODEL K9

08319-2118A

$4.42

15

PIN, COTTER | MODEL K5/K6/K7/K8

04111-4030A

$1.37

16

ADJUSTER, CHAIN RH

61410-29F00

$29.98

17

SPROCKET, REAR (NT:44-520)

64511-14D80

$75.17

18

SCREW (8X30.5)

09120-08010

$2.39

19

NUT

08319-3108A

$2.31

20

RIM, REAR WHEEL (2.15X18)

65311-29F00

Unavailable

21

SPOKE ASSY, REAR WHEEL

65320-29F00

$123.42

22

TIRE RR This part replaces 65110-29F10.

65110-29F11

$319.15

23

TUBE ASSY, WHEEL INNER

65200-29E00

$85.57

24

PROTECTOR, INNER TUBE

65261-14E00

$9.25

25

BALANCER, WHEEL NO.1

55412-41F00

$8.12

26

BALANCER WHEEL (30G)

55413-41F00

$9.95

27

CAP, BEAD STOPPER

09250-08013

$2.92

28

COVER, REAR DISC | Includes Item(s) 29 - 30

69200-28C00

$26.04

29

BOLT, FRONT

01550-0620B

$2.38

30

BOLT, REAR

01550-0612B
