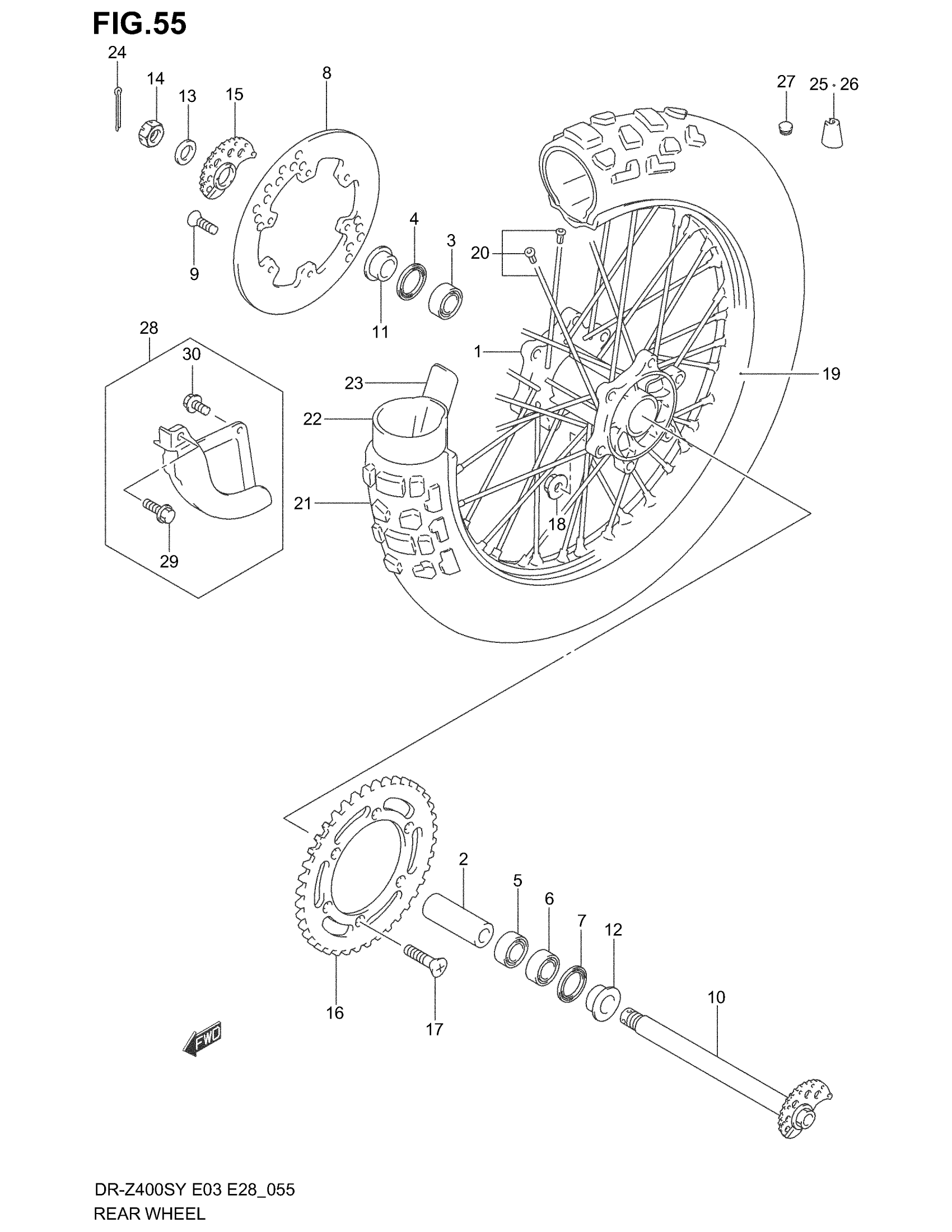

Find the part on the Rear Wheel diagram for your 2004 Suzuki DR-Z400S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki DR-Z400S Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL

64111-29F10

1
Out of stock

2

SPACER, BEARING

64731-29F00

1
Out of stock

3

BEARING, RH

08133-60047

1

$25.50

In stock

4

SEAL (29X42X6) This part replaces 64841-28E00.

64841-28E01

1
Out of stock

5

BEARING, LH

08133-60047

1

$25.50

In stock

6

BEARING This part replaces 08123-62047.

08123-6204B

1
Out of stock

7

SEAL, LH (29X47X5)

09283-29006

1
Out of stock

8

DISC, REAR BRAKE

69211-43D00

1
Out of stock

10

AXLE, REAR

64710-29F10

1

$162.60

In stock

11

SPACER, RH

64751-28E20

1
Out of stock

12

SPACER, LH

64751-28E20

1
Out of stock

13

WASHER

09160-19022

1
Out of stock

14

1

$4.50

In stock

15

ADJUSTER, CHAIN RH

61410-29F00

1
Out of stock

16

SPROCKET, REAR (NT:44-520)

64511-14D80

1
Out of stock

17

SCREW (8X30.5)

09120-08010

6
Out of stock

18

NUT

08319-31087

6

$2.48

In stock

19

RIM, REAR WHEEL (2.15X18)

65311-29F00

1
Out of stock

20

SPOKE ASSY, REAR WHEEL

65320-29F00

1
Out of stock

21

TIRE RR This part replaces 65110-29F10.

65110-29F11

1
Out of stock

22

1

$85.57

In stock

23

PROTECTOR, INNER TUBE

65261-14E00

1

$9.25

In stock

24

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

25

BALANCER, WHEEL (20G) This part replaces 55412-38A00.

55412-41F00

1
Out of stock

26

BALANCER WHEEL (30G) This part replaces 55413-38A00.

55413-41F00

1
Out of stock

27

CAP, BEAD STOPPER

09250-08013

1
Out of stock

28

COVER, REAR DISC | MODEL K2/K3/K4; Includes Item(s) 29 - 30

69200-28C00

1
Out of stock

29

BOLT | MODEL K2/K3/K4 This part replaces 01550-06203.

01550-0620A

1
Out of stock

30

BOLT, CLAMP | MODEL K2/K3/K4 This part replaces 01550-06123.

01550-0612A

1
Out of stock
