Description

Price

1

HUB, FRONT WHEEL

54111-29F10

$355.08

2

SPACER, FRONT HUB (20.5X27.3X70)

54731-36E10

$29.07

3

BEARING This part replaces 08130-69047.

08130-6904B

$47.02

4

SEAL, LH (25X37X6)

09283-25083

$7.67

5

AXLE, FRONT This part replaces 54711-29F00.

54711-29F10

$118.47

6

BOX ASSY SPEEDOMETER GEAR This part replaces 54600-29F00.

54600-29F01

$71.53

7

SPACER, AXLE LH (L:31)

54751-36E10

$16.33

8

NUT

09159-18018

$21.71

9

DISC, FRONT BRAKE LH

59221-13E00

$325.48

10

SCREW, SHIFT PAWL LIFTER This part replaces 09120-06011.

09120-06014

$2.43

11

TIRE FR This part replaces 55110-29F10.

55110-29F11

$251.55

12

TUBE ASSY, WHEEL INNER This part replaces 55200-32E00.

55200-32E01

$66.32

13

PROTECTOR WHL INR TUBE This part replaces 55261-32E00.

55261-32E01

$5.32

14

RIM, FRONT WHEEL (1.60X21)

55311-29F00

$468.58

15

SPOKE SET, FRONT WHEEL

55320-29F00

$104.63

16

WASHER

09160-18034

$3.22

17

BALANCER, WHEEL (20G) This part replaces 55412-38A00.

55412-41F00

$8.12

18

BALANCER WHEEL (30G) This part replaces 55413-38A00.

55413-41F00

$9.95

19

CAP, BEAD STOPPER

09250-08013

$2.92

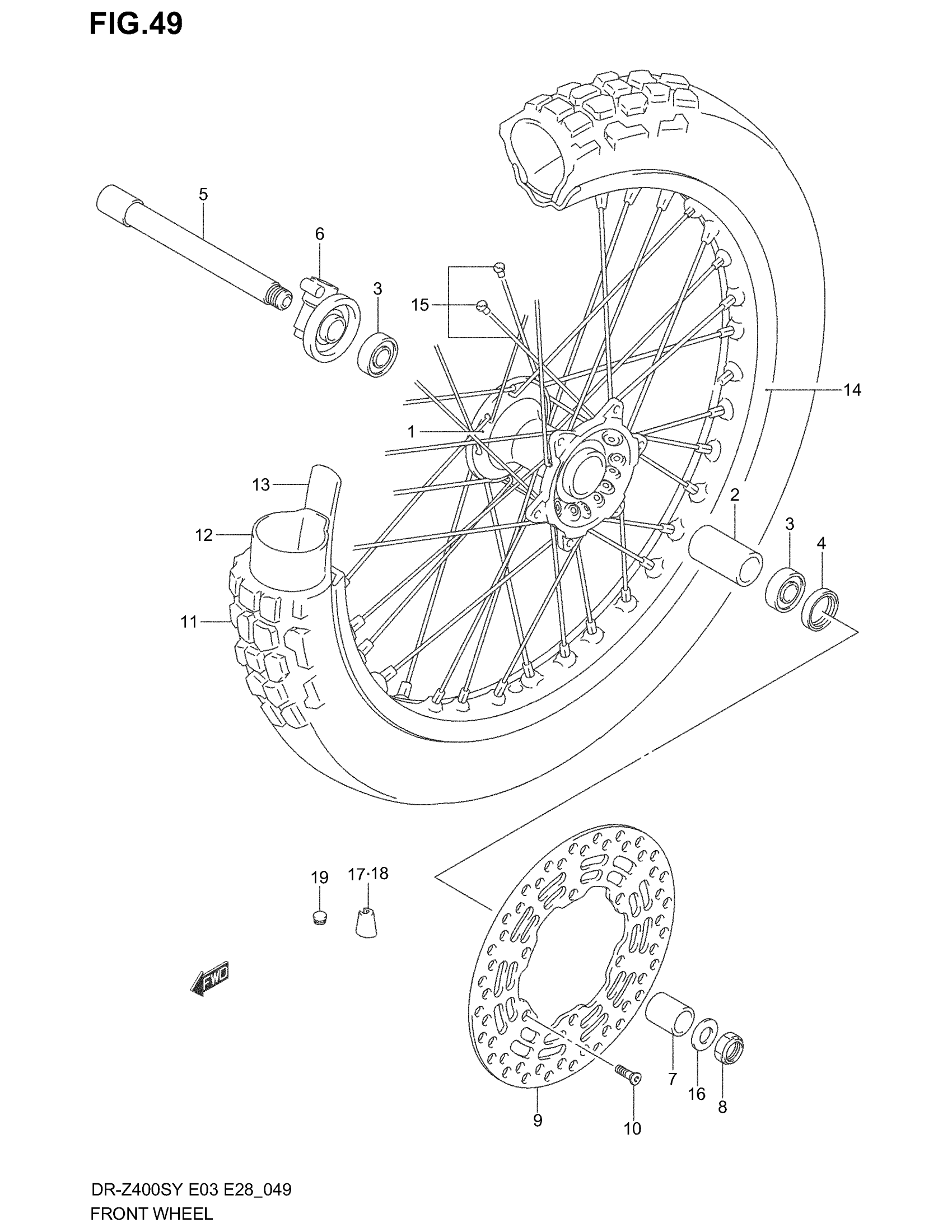

Suzuki DR-Z400S (2004) FRONT WHEEL Diagram
