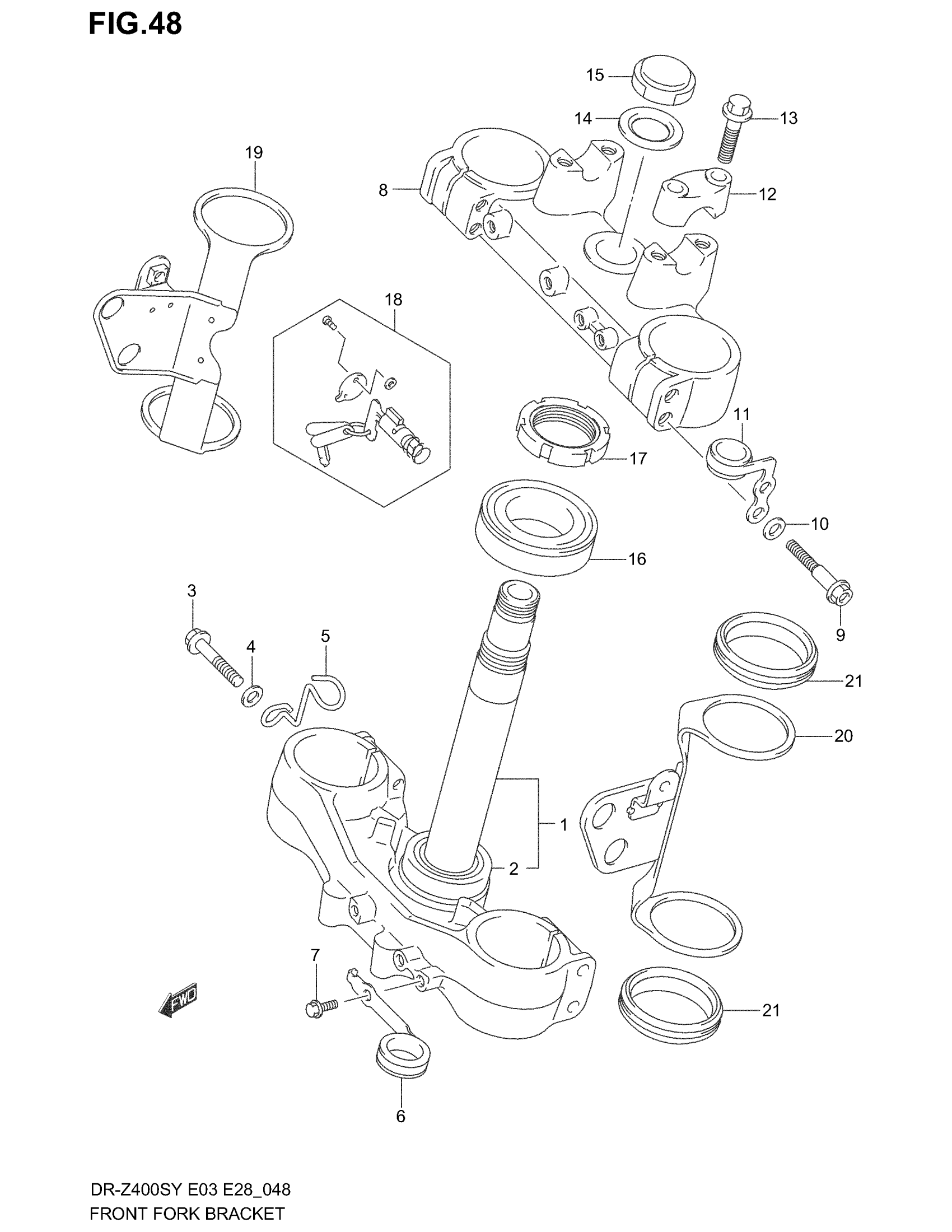

Suzuki DR-Z400S (2004) FRONT FORK BRACKET Diagram

#

Description
Price

1

BRACKET, FRONT FORK UNDER | MODEL Y/K1

51410-29F30

Unavailable

1

BRACKET FR FORK UNDER | MODEL K2/K3/K4; Includes Item(s) 2 This part replaces 51410-29F20.

51410-29F21

$646.92

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$42.15

3

BOLT, UNDER

51328-36E00

$7.07

4

WASHER

51316-36E00

$3.50

5

GUIDE, CABLE

34938-29E01

$13.35

6

GUIDE, HOSE

51453-29F20

$43.40

7

BOLT

58627-27C40

$3.55

8

BRACKET, FRONT FORK UPPER

51311-29F00

$433.12

9

BOLT, UPPER

51328-29F20

$12.12

10

WASHER

51316-36E00

$3.50

11

GUIDE, CABLE

51288-29F20

$43.40

12

HOLDER, HANDLEBAR

56211-29F00

$34.38

13

BOLT,HANDLE HOLDER (8X35)

51321-27C40

$4.66

14

WASHER,STEM HEAD

51356-29E00

$20.30

15

NUT

51353-29F20

Unavailable

16

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$42.15

17

NUT STEERING

51631-28E00

$32.60

18

LOCK ASSY,STEER This part replaces 51900-30901.

51900-309V0

$81.21

19

BRACKET COMP, HEADLAMP HSG RH

51530-29F00

$69.00

20

BRACKET COMP, HEADLAMP HSG LH

51540-29F00

$69.00

21

DAMPER, HEADLAMP HSG BRACKET

51553-29F00

$9.70
