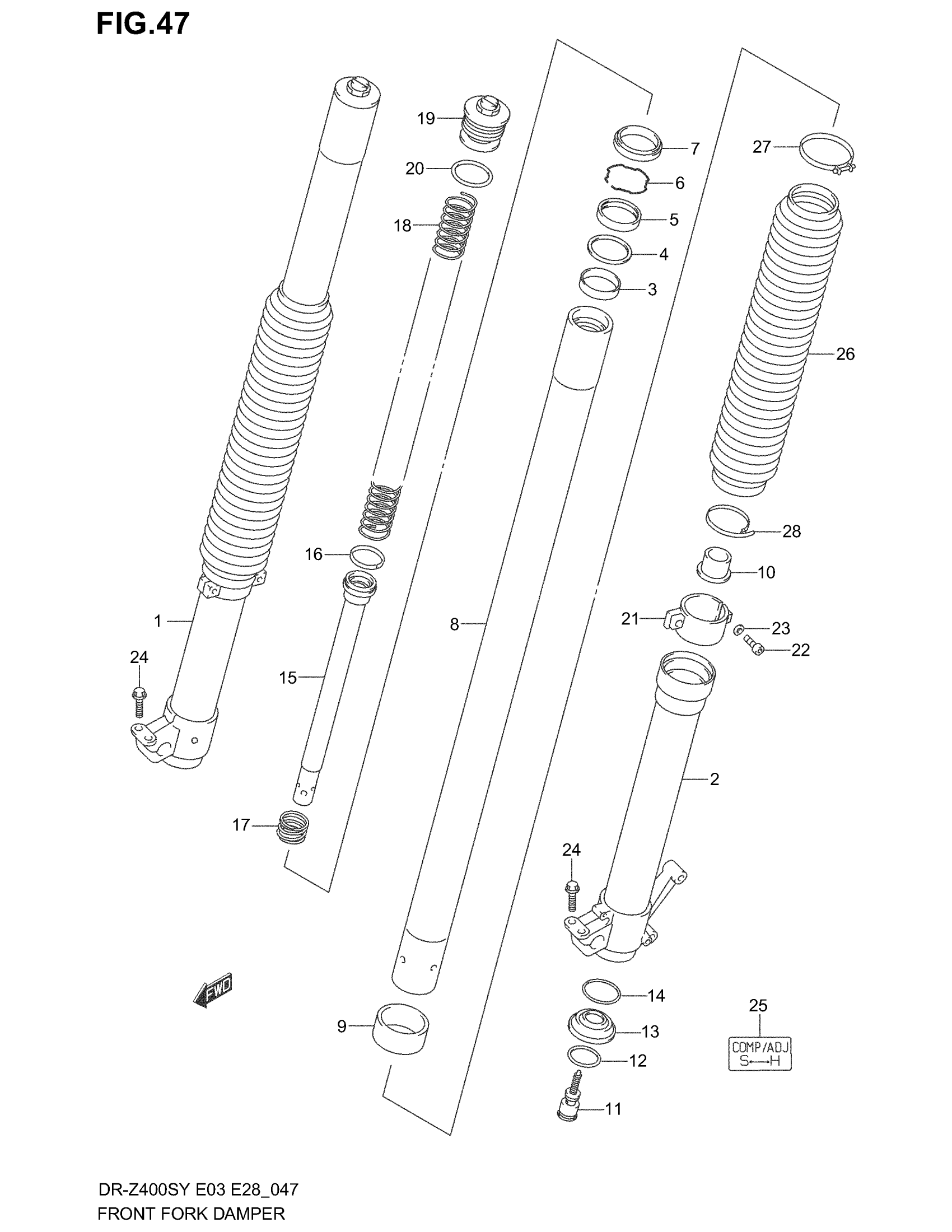

Suzuki DR-Z400S (2004) FRONT FORK DAMPER (MODEL Y/K1) Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-29F30

Unavailable

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 25

51104-29F20

Unavailable

1

TUBE, OUTER RH

51130-29F20

Unavailable

2

TUBE, OUTER LH

51140-29F20

Unavailable

3

BUSH, GUIDE

51167-36E40

Unavailable

4

..SPACER,SEAL

51158-36E00

$10.58

5

..SEAL,OIL

51153-36E00

$40.83

6

..RING,STOPPER

51156-36E00

$9.53

7

SEAL, DUST

51173-36E00

$43.62

8

TUBE, INNER

51110-29F20

Unavailable

9

BUSH, SLIDE

51121-36E40

$43.60

10

PIECE, OIL LOCK

51195-29F20

Unavailable

11

BOLT, CENTER

51170-29F20

Unavailable

12

PACKING

51183-29F20

Unavailable

13

PLATE, END

51205-29F20

Unavailable

14

O RING

51117-27C40

$7.02

15

CYLINDER

51190-29F20

Unavailable

16

RING, PISTON

51196-29F20

Unavailable

17

SPRING, REBOUND

51177-29F20

Unavailable

18

SPRING, FRONT

51171-29F20

Unavailable

19

BOLT, FORK

51351-29F20

Unavailable

20

O RING

51117-36E00

$7.83

21

HOLDER, BOOT

51203-29F00

$52.93

22

BOLT

07130-05207

$3.30

23

WASHER

09160-05044

$2.01

24

BOLT,HANDLE HOLDER (8X35)

51321-27C40

$4.66

25

LABEL

51149-29E40

$7.03

26

BOOT (BLACK) This part replaces 51571-29F00-019.

51571-29F01-019

$93.55

27

BAND, BOOT UPPER

51575-29F00

$24.63

28

BAND, BOOT LOWER

51576-29F00

$22.42
