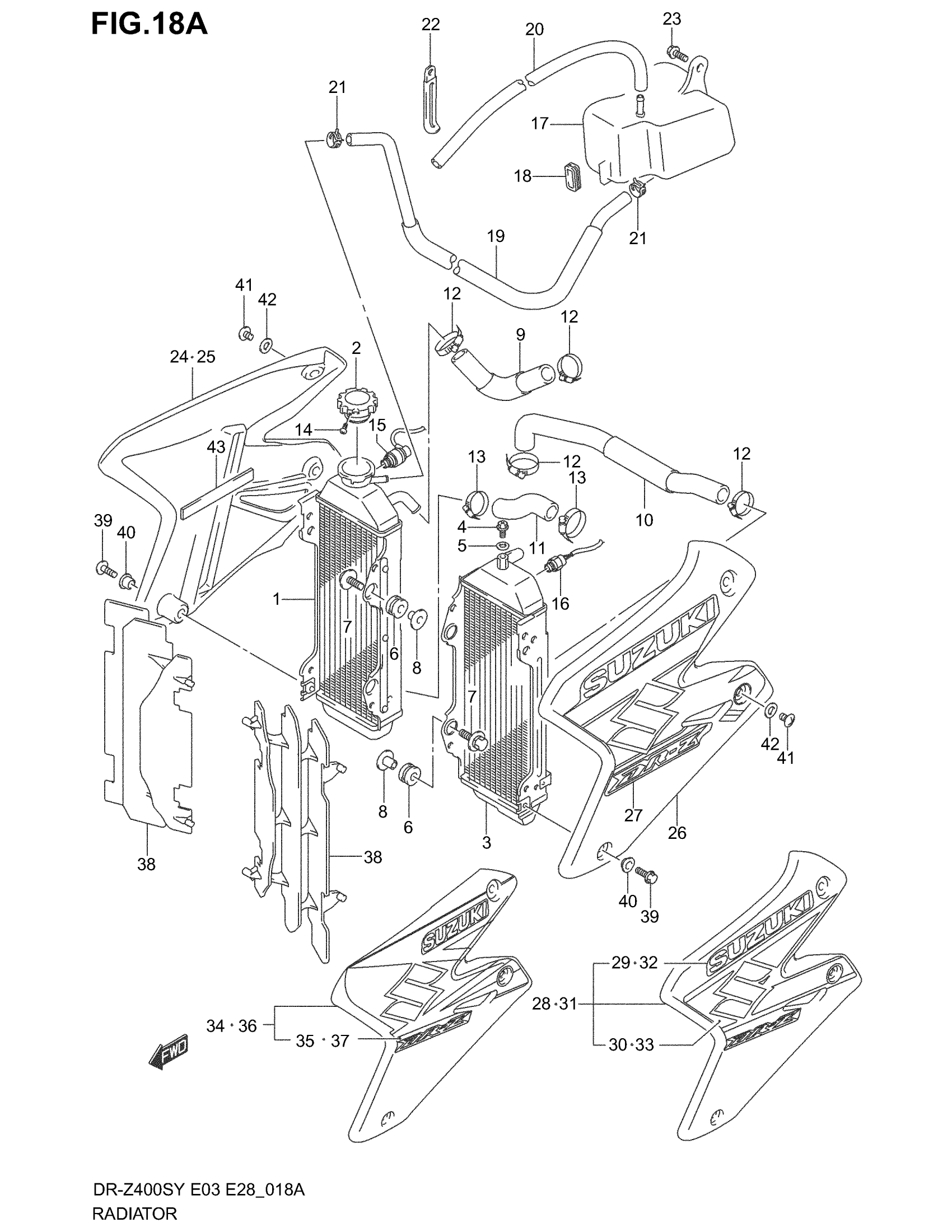

Suzuki DR-Z400S (2004) RADIATOR (MODEL K2/K3/K4) Diagram

#

Description
Price

1

RADIATOR, RH This part replaces 17710-29F10.

17710-29F40

$649.35

2

CAP, RADIATOR (1.1)

17730-19D11

$38.74

3

RADIATOR, LH This part replaces 17720-29F10.

17720-29F40

$675.00

4

BOLT, AIR RELEASE

17568-50F00

$6.32

5

GASKET, AIR RELEASE

09168-06026

$2.80

6

CUSHION, SUPPORT

17787-19A00

$3.26

7

BOLT (6X25)

09116-06147

$2.93

8

SPACER

09180-06243

$4.92

9

HOSE, INLET

17851-29F10

$13.02

10

HOSE, OUTLET

17852-29F30

$56.78

11

HOSE, JOINT

17853-29F10

$30.12

12

CLAMP

09402-28511

$6.21

13

CLAMP

09402-32511

$9.95

14

SCREW,RADIATOR CAP

17733-03D10

$2.97

15

SWITCH ASSY, WATER TEMP

34850-03D00

$134.47

16

SWITCH, FAN

17680-24A30

$139.25

17

TANK, RESERVOIR

17911-29F11

$45.67

18

CUSHION, RESERVOIR TANK

17913-29F00

$5.00

19

HOSE, INLET

17981-29F01

$23.73

20

HOSE, OVERFLOW | L:2000!650

09352-50901-00B

$34.43

21

CLIP

09401-08411

$1.77

22

CLAMP (L:45) This part replaces 09404-08205.

09404-08211

$2.43

22

CLAMP This part replaces 09404-06432.

09404-06039

$1.73

23

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

24

COVER, RADIATOR RH (BLUE) | MODEL K2 FOR N9J

17760-29F40-YJ4

Unavailable

24

COVER, RADIATOR RH (YELLOW) | MODEL K2 FOR YU1; Includes Item(s) 25 - 25

17760-29F40-YU1

Unavailable

25

TAPE, RADIATOR COVER RH | FOR N9J

68660-29F00-HB1

Unavailable

25

TAPE, RADIATOR COVER RH | FOR YU1

68660-29F00-GY7

Unavailable

26

COVER, RADIATOR LH (BLUE) | MODEL K2 FOR N9J

17770-29F40-YJ4

Unavailable

26

COVER, RADIATOR LH (YELLOW) | MODEL K2 FOR YU1; Includes Item(s) 27 - 27

17770-29F40-YU1

Unavailable

27

TAPE, RADIATOR COVER LH | FOR N9J

68670-29F00-HB1

Unavailable

27

TAPE, RADIATOR COVER LH | FOR YU1

68670-29F00-GY7

Unavailable

28

COVER, RADIATOR RH (BLUE) | MODEL K3 FOR N9J

17760-29F50-YJ4

Unavailable

28

COVER, RADIATOR RH (YELLOW) | MODEL K3 FOR YU1; Includes Item(s) 29 - 30

17760-29F50-YU1

Unavailable

29

EMBLEM, "SUZUKI" | FOR N9J

68661-29F00-KW4

Unavailable

29

EMBLEM,SUZUKI | FOR YU1 This part replaces 68661-29F00-GY8.

68661-29F01-GY8

$22.80

30

TAPE, RADIATOR COVER RH | FOR N9J

68665-29F50-KW1

Unavailable

30

TAPE, RADIATOR COVER RH | FOR YU1

68665-29F50-KH2

Unavailable

31

COVER, RADIATOR LH (BLUE) | MODEL K3 FOR N9J

17770-29F50-YJ4

Unavailable

31

COVER, RADIATOR LH (YELLOW) | MODEL K3 FOR YU1; Includes Item(s) 32 - 33

17770-29F50-YU1

Unavailable

32

EMBLEM, "SUZUKI" | FOR N9J

68661-29F00-KW4

Unavailable

32

EMBLEM,SUZUKI | FOR YU1 This part replaces 68661-29F00-GY8.

68661-29F01-GY8

$22.80

33

TAPE, RADIATOR COVER LH | FOR N9J

68675-29F50-KW1

Unavailable

33

TAPE, RADIATOR COVER LH | FOR YU1

68675-29F50-KH2

Unavailable

34

COVER, RADIATOR RH (BLUE) | MODEL K4 FOR N9J

17760-29F60-YJ4

Unavailable

34

COVER, RADIATOR RH (YELLOW) | MODEL K4 FOR YU1; Includes Item(s) 35 - 35

17760-29F60-YU1

Unavailable

35

TAPE, RADIATOR COVER RH | FOR N9J

68665-29F60-NV2

Unavailable

35

TAPE, RADIATOR COVER RH | FOR YU1

68665-29F60-NV1

Unavailable

36

COVER, RADIATOR LH (BLUE) | MODEL K4 FOR N9J

17770-29F60-YJ4

Unavailable

36

COVER, RADIATOR LH (YELLOW) | MODEL K4 FOR YU1; Includes Item(s) 37 - 37

17770-29F60-YU1

Unavailable

37

TAPE, RADIATOR COVER LH | FOR N9J

68675-29F60-NV2

Unavailable

37

TAPE, RADIATOR COVER LH | FOR YU1

68675-29F60-NV1

Unavailable

38

LOUVER, RADIATOR

17831-37E11

$17.46

39

SCREW This part replaces 02142-06163.

02142-0616A

$1.37

40

WASHER

09169-06060

$2.00

41

SCREW This part replaces 02142-06083.

02142-0608A

$1.30

42

WASHER (6.5X14X2.0) This part replaces 09160-06124.

09160-06126

$1.92

43

CUSHION This part replaces 17798-29E40.

47451-38A01

$5.00
