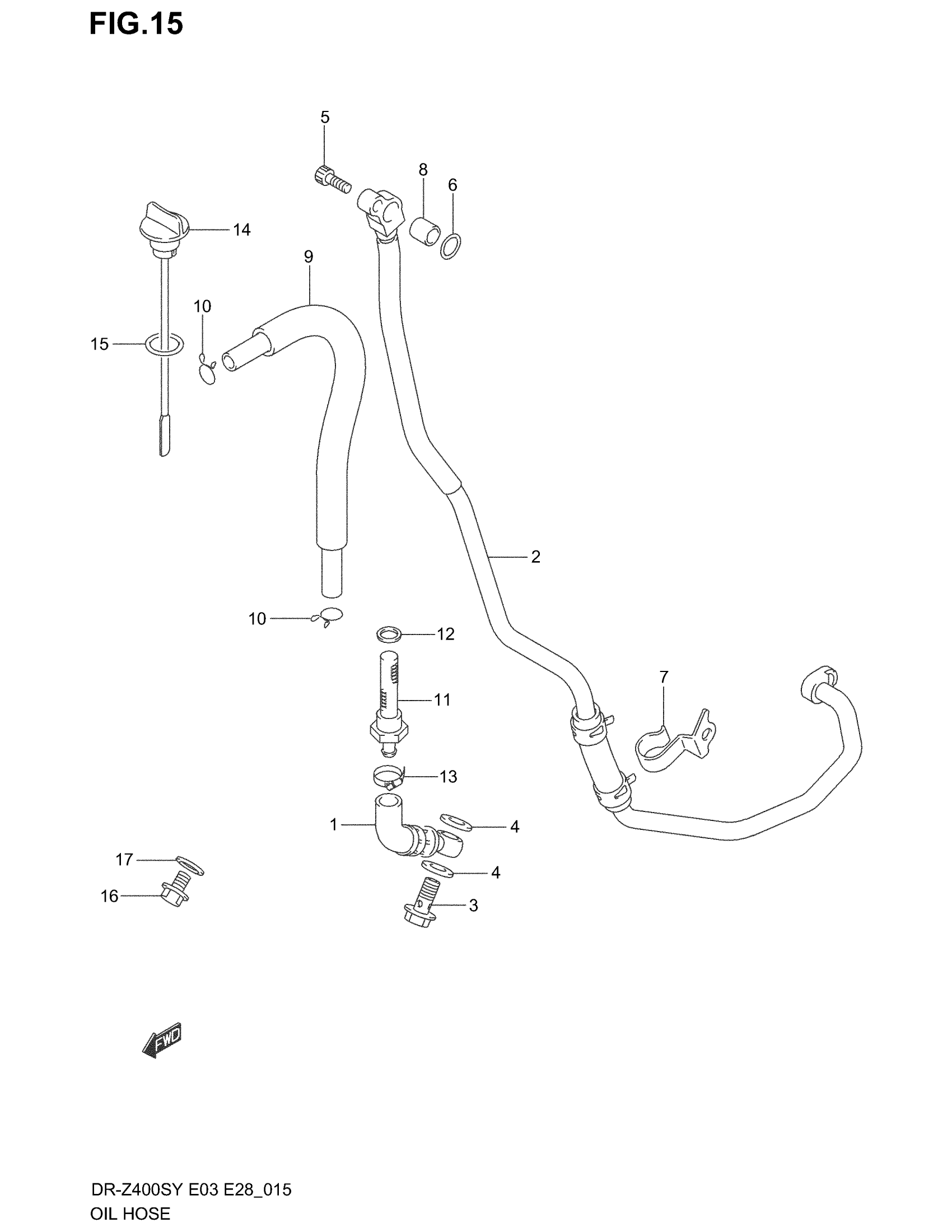

Suzuki DR-Z400S (2004) OIL HOSE Diagram

#

Description
Price

1

HOSE, OIL TANK RH | MODEL Y/K1/K2/K3 This part replaces 16460-29F00.

16460-29F10

$83.83

1

HOSE, OIL TANK RH | MODEL K4

16460-29F10

$83.83

2

HOSE, OIL TANK LH | MODEL Y/K1/K2/K3 This part replaces 16470-29F10.

16470-29F20

$178.10

2

HOSE, OIL TANK LH | MODEL K4

16470-29F20

$178.10

3

BOLT, UNION (14X27)

09360-14012

$10.10

4

.GASKET (14X20X1.5)

09168-14015

$2.09

5

BOLT, FRONT BRG HOUSING | MODEL Y/K1 This part replaces 07130-06203.

07130-0620B

$2.88

5

BOLT, EXHAUST COVER | MODEL K2/K3/K4 This part replaces 07120-06163.

07120-0616B

$2.56

5

BOLT, FRONT | MODEL K2/K3/K4 This part replaces 07120-06203.

07120-0620B

$2.82

6

O RING (D:2.4,ID:11.0)

09280-11005

$4.06

7

CLAMP, OIL TANK HOSE | MODEL Y/K1 This part replaces 16491-29F10.

16491-29F11

$8.03

7

CLAMP, OIL TANK HOSE | MODEL K2/K3/K4

16491-29F11

$8.03

8

PIN, OIL TANK HOSE

04211-11129

$1.82

9

HOSE, OIL OVER FLOW

16480-29F00

$26.85

10

CLIP

09401-12403

$1.84

11

STRAINER, FRAME HEAD UNDER

16550-29F00

$85.42

12

GASKET

09168-18007

$2.95

13

CLAMP

09402-22511

$6.58

14

GAUGE, OIL LEVEL | MODEL Y/K1/K2 This part replaces 16560-29F00.

16561-29F10

$10.46

14

GAUGE, OIL LEVEL | MODEL K3/K4

16561-29F10

$10.46

15

O RING (D:3.1,ID:16.8)

09280-17003

$1.70

16

PLUG, DRAIN

09247-10008

$2.01

17

GASKET

09168-10002

$1.96
