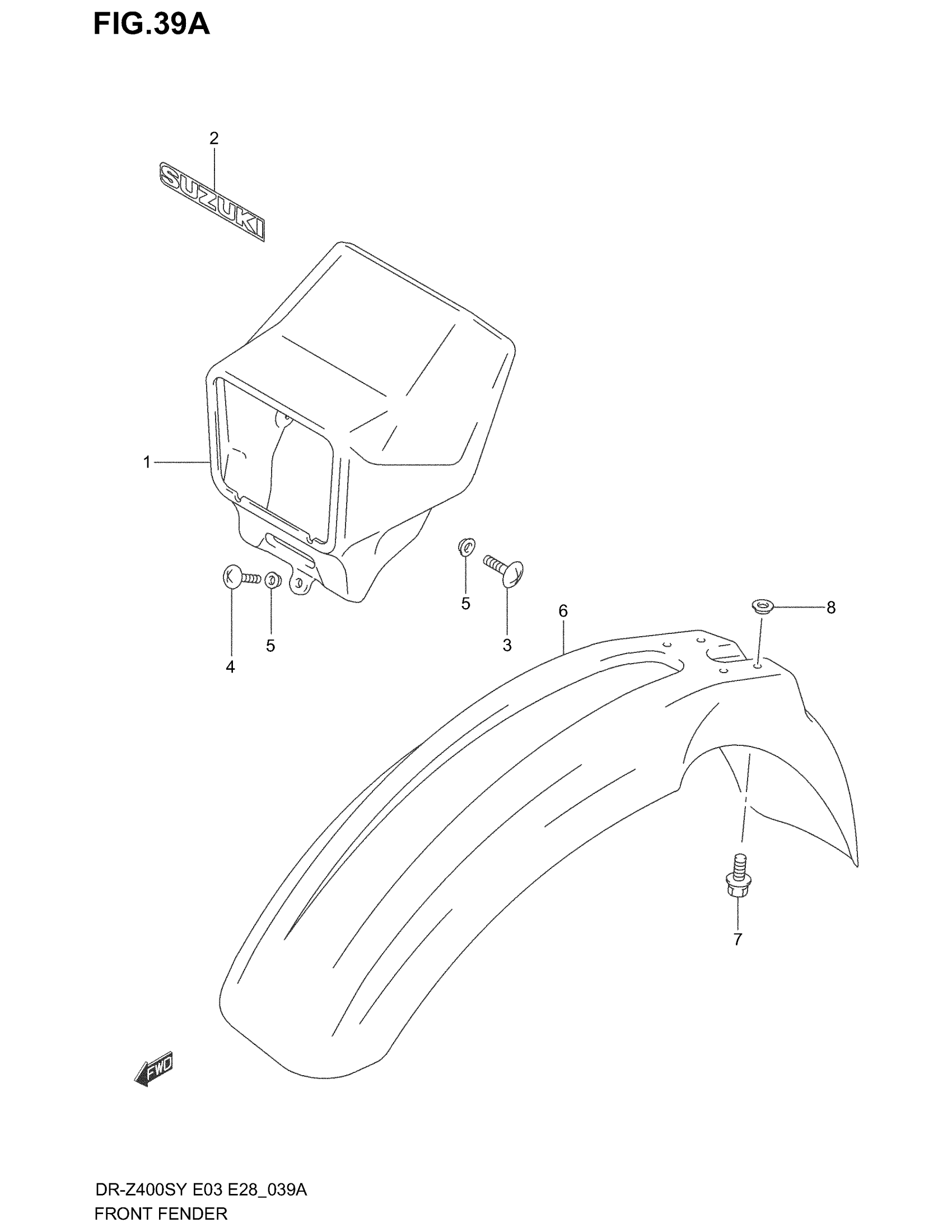

Suzuki DR-Z400S (2004) FRONT FENDER (MODEL K1) Diagram

#

Description

Price

1

COVER, HEAD LAMP (WHITE) | FOR N9J

51811-32E00-30H

Unavailable

1

COVER, HEAD LAMP (YELLOW) | FOR YR1

51811-32E00-YR1

Unavailable

2

EMBLEM, SUZUKI | FOR N9J

68171-44B00-8YM

$14.10

2

EMBLEM, SUZUKI | FOR YR1

68171-44B00-FR3

Unavailable

3

SCREW This part replaces 02142-06123.

02142-0612A

$1.37

4

.SCREW This part replaces 02142-05123.

02142-0512A

$1.37

5

WASHER

09169-06033

$1.57

6

FENDER, FRONT (BLUE) | FOR N9J

53111-27C22-YJ4

Unavailable

6

FENDER FR (YELLOW) | FOR YR1 This part replaces 53111-27C22-YR1.

53111-27C22-YU1

$155.02

7

BOLT

09116-06170

$2.50

8

WASHER

09169-06073

$3.08
