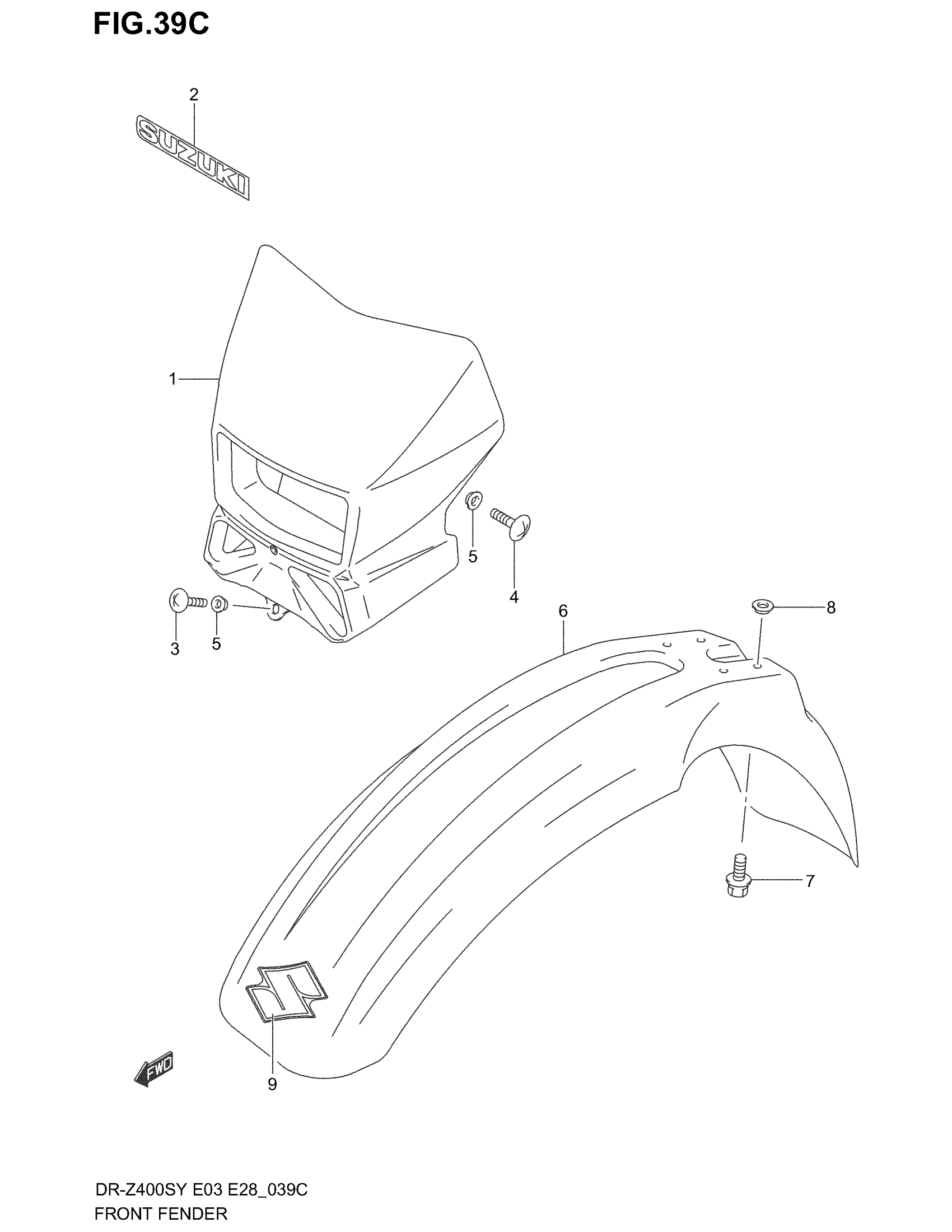

Suzuki DR-Z400S (2004) FRONT FENDER (MODEL K3/K4) Diagram

COVER HEADLAMP (WHITE) This part replaces 51811-29F10-30H.

51811-29F50-30H

$126.40

EMBLEM

68721-29F00-8YM

$14.37

.SCREW This part replaces 02142-05123.

02142-0512A

$1.37

SCREW This part replaces 02142-06123.

02142-0612A

$1.37

WASHER

09169-06033

$1.57

FENDER FR (YELLOW) | FOR YU1

53111-27C22-YU1

$155.02

FENDER, FRONT (BLUE) | FOR N9J

53111-27C22-YJ4

Unavailable

BOLT

09116-06170

$2.50

WASHER

09169-06073

$3.08

EMBLEM "S" | MODEL K4 FOR YU1

68151-08G00-NN3

$13.93

EMBLEM "S" | MODEL K4 FOR N9J

68151-08G00-NV3

Unavailable
