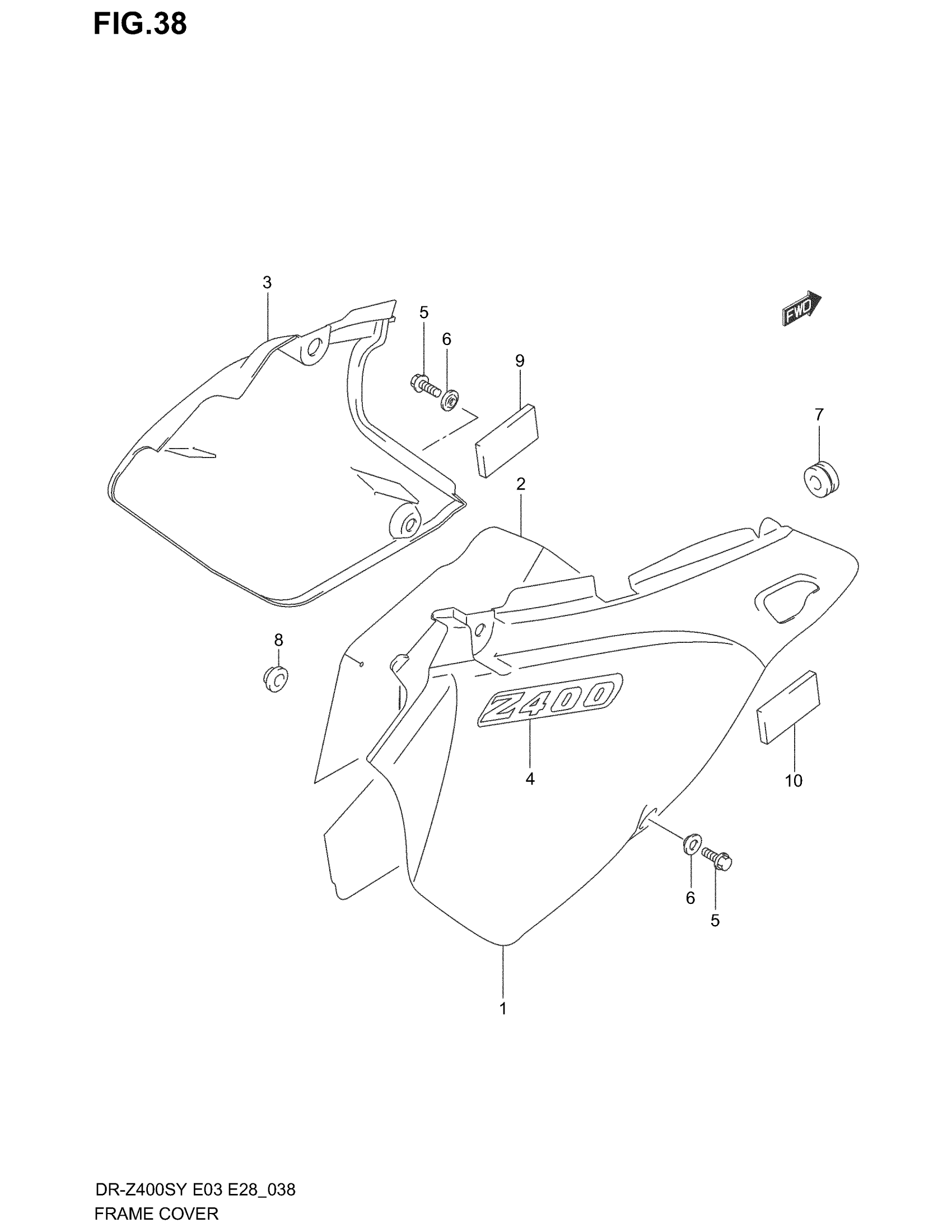

Suzuki DR-Z400S (2004) FRAME COVER (MODEL Y) Diagram

#

Description

Price

1

COVER, FRAME RH (WHITE) This part replaces 47111-29F10-30H.

47111-29FC0-30H

$64.47

2

SHIELD, FRAME COVER RH

47166-29F00

$93.58

3

COVER, FRAME LH (WHITE) This part replaces 47211-29F10-30H.

47211-29FA0-30H

$64.78

3

COVER, FRAME LH (WHITE) | E33 This part replaces 47211-29F30-30H.

47211-29FC0-30H

$93.40

4

EMBLEM, FRAME COVER | E3,E33 FOR 3AE

68131-29F00-CW6

Unavailable

4

EMBLEM, FRAME COVER | FOR N9J

68131-29F00-CW7

Unavailable

5

BOLT This part replaces 01547-06163.

01547-0616B

$2.43

6

WASHER

09169-06041

$1.97

7

CUSHION, RH

09320-06504

$4.47

8

CUSHION, MUFFLER

09321-10018

$4.19

9

CUSHION, LH COVER FRONT

47161-29F00

$8.12

10

CUSHION, RH COVER FRONT

71762-65G10

$9.35
