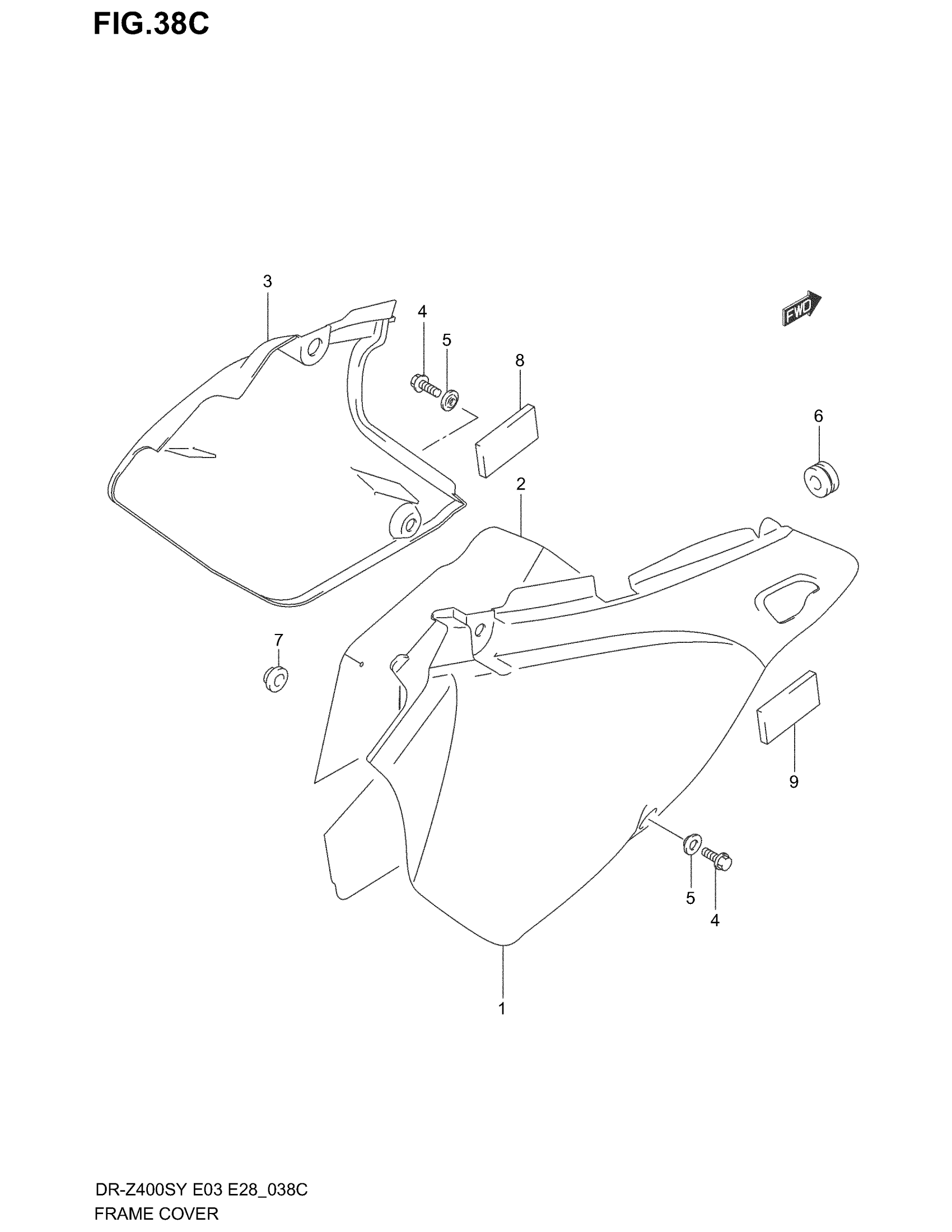

Suzuki DR-Z400S (2004) FRAME COVER (MODEL K3/K4) Diagram

#

Description

Price

1

COVER, FRAME RH (WHITE) This part replaces 47111-29F10-30H.

47111-29FC0-30H

$64.47

2

SHIELD, FRAME COVER RH

47166-29F00

$93.58

3

COVER, FRAME LH (WHITE) | E3,E28 This part replaces 47211-29F10-30H.

47211-29FA0-30H

$64.78

3

COVER, FRAME LH (WHITE) | E33 This part replaces 47211-29F30-30H.

47211-29FC0-30H

$93.40

4

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

5

WASHER

09169-06041

$1.97

6

CUSHION, RH

09320-06504

$4.47

7

CUSHION, MUFFLER

09321-10018

$4.19

8

CUSHION, LH COVER FRONT

47161-29F00

$8.12

9

CUSHION, RH COVER FRONT

71762-65G10

$9.35
