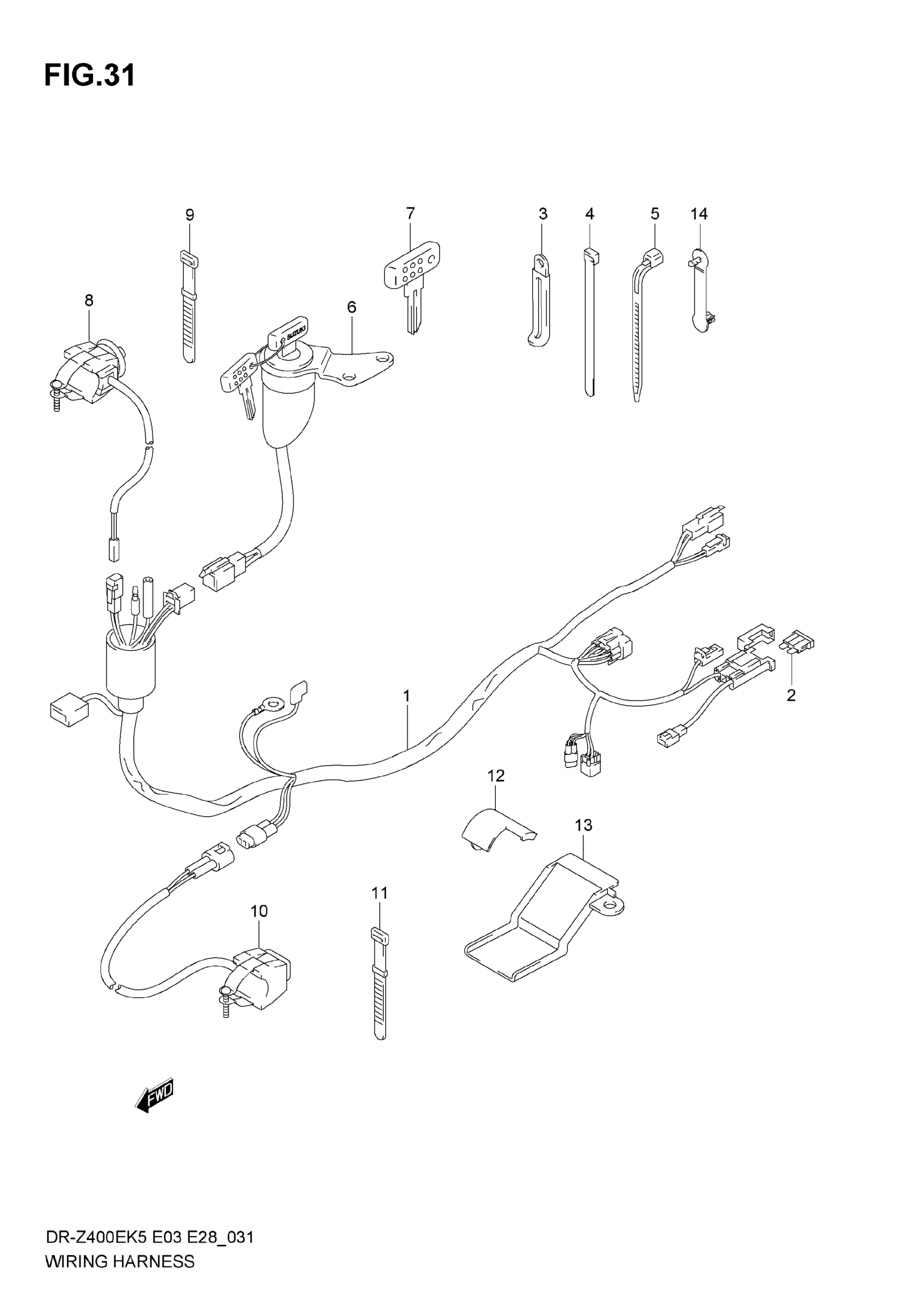

Find the part on the Wiring Harness diagram for your 2007 Suzuki DR-Z400E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki DR-Z400E Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS,WIRING | Includes Item(s) 2 This part replaces 36610-29F70.

36610-29F71

1
Out of stock

2

FUSE (10A)

09481-10101

2
Out of stock

3

CLAMP (L:45)

09404-06429

1
Out of stock

3

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

1
Out of stock

4

CLAMP (L:145)

09407-14407

1
Out of stock

5

CLAMP (L:125)

09407-14403

6
Out of stock

5

CLAMP (L:165)

09407-18402

2
Out of stock

5

CLAMP (L:235)

09407-25401

2
Out of stock

6

SWITCH ASSY, IGNITION

37110-29F50

1
Out of stock

7

1

$9.06

In stock

7

1

$9.06

In stock

7

1

$12.05

In stock

7

1

$12.13

In stock

8

SWITCH ASSY, STARTER

37310-29F00

1
Out of stock

9

CLAMP

09407-12402

1
Out of stock

10

SWITCH ASSY,ENGINE STOP

37820-36E00

1
Out of stock

11

CLAMP

09407-12402

1
Out of stock

12

PROTECTOR, WIRING HARNESS

36611-29F10

1
Out of stock

13

1

$10.17

In stock

14

CLAMP, WIRING HARNESS

36651-48E00

1
Out of stock
