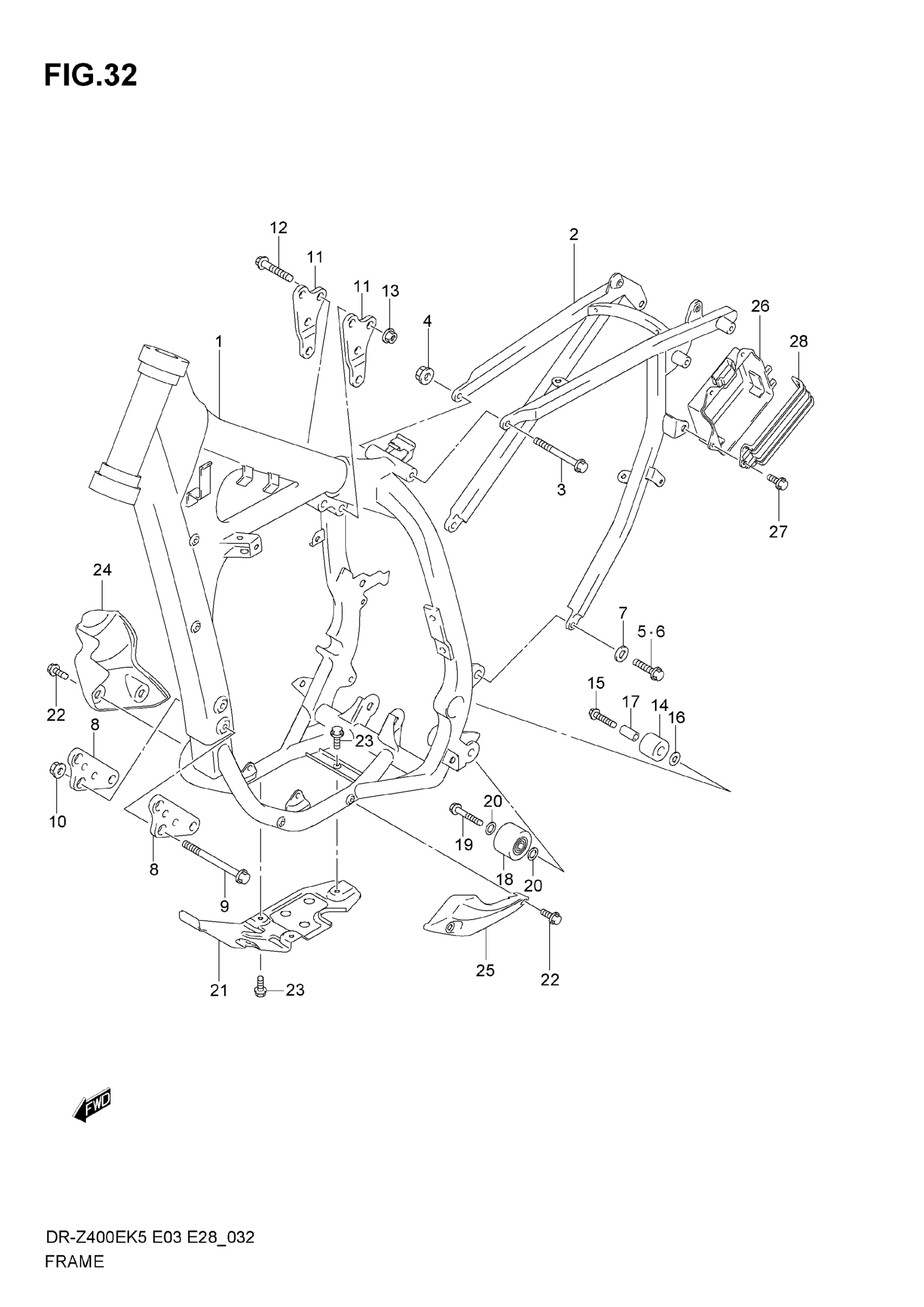

Suzuki DR-Z400E (2007) FRAME Diagram

#

Description
Price

1

FRAME (GRAY)

41100-29F00-YU8

Unavailable

2

RAIL, SEAT

41200-29F10

Unavailable

3

BOLT, UPPER

09103-08098

$4.20

4

NUT This part replaces 08319-31088.

08319-3108A

$2.38

5

BOLT, LH (8X16)

09104-08035

$2.79

6

BOLT, RH

09103-08364

$3.48

7

WASHER (8.5X18X2.0)

09160-08120

$2.29

8

PLATE, ENGINE MOUNT FRONT

41911-29F00

Unavailable

9

BOLT

09103-08363

$9.78

10

NUT This part replaces 08319-31088.

08319-3108A

$2.38

11

PLATE, ENGINE MOUNT REAR

41993-29F10

$36.12

12

BOLT (8X50)

09103-08081

$4.03

13

NUT This part replaces 08319-31088.

08319-3108A

$2.38

14

ROLLER, CHAIN CONTROL UPR

43911-13E10

$30.12

15

BOLT, UPPER

09103-08083

$3.50

16

WASHER

08211-08201

$2.13

17

SPACER

09180-08215

$3.97

18

ROLLER, CHAIN LOWER

43910-27C11

$72.98

19

BOLT (8X41)

09103-08083

$3.50

20

WASHER

09181-08111

$2.01

21

PROTECTOR, ENGINE

42510-29F00

$154.63

22

BOLT

09111-08087

$2.80

23

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

24

GUARD, WATER PUMP

42521-29F00

$23.50

25

GUARD, MAG COVE This part replaces 42531-29F00.

42530-29810

Unavailable

26

HOLDER, BATTERY

41541-29F00

$76.43

27

BOLT

09111-06072

$2.10

28

BAND

41561-29F00

$20.17
