2007 Suzuki DR-Z400E Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 2007 Suzuki DR-Z400E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

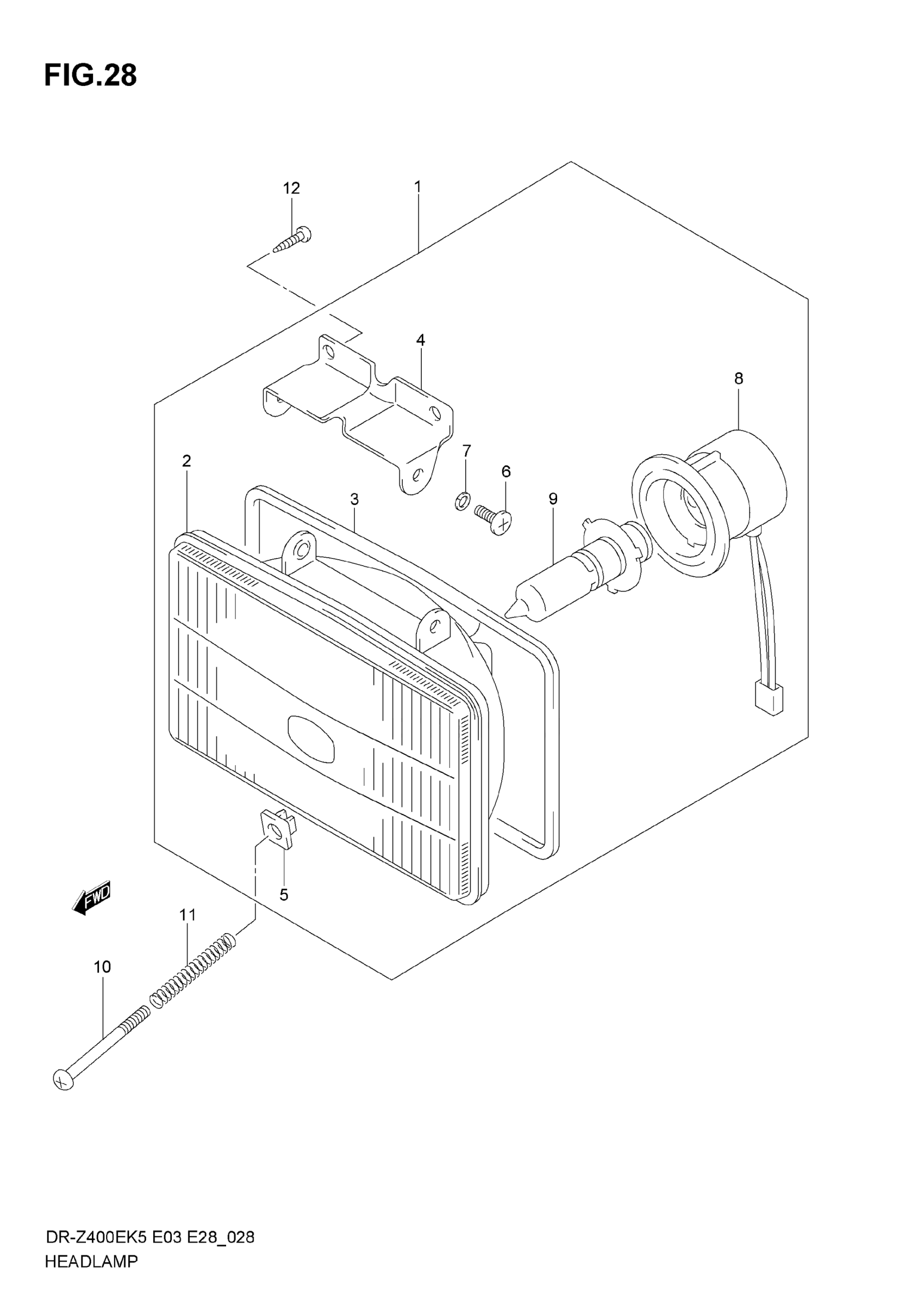

2007 Suzuki DR-Z400E Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | MODEL K5/K6 This part replaces 35100-03D03.

35100-03D04

1
Out of stock

1

HEADLAMP ASSY | MODEL K7; Includes Item(s) 2 - 9

35100-03D04

1
Out of stock

2

UNIT, LAMP

35121-03D02

1
Out of stock

3

GASKET, HEADLAMP

35125-03D00

1
Out of stock

4

BRACKET, LAMP

35230-05D00

1
Out of stock

5

.NUT ADJUSTING

35135-12E20

1

$4.20

In stock

6

SCREW

35136-16700

2
Out of stock

7

LOCK WASHER This part replaces 08321-01057.

08321-0105A

2
Out of stock

8

CORD ASSY This part replaces 35171-03D03.

35171-03D10

1
Out of stock

9

BULB (12V 35/36.5W)

09471-12105

1
Out of stock

10

SCREW, HEADLAMP ADJUST

09125-04034

1
Out of stock

11

SPRING, HEADLAMP ADJUST

09440-07075

1
Out of stock

12

SCREW This part replaces 03511-04103.

03511-0410A

2
Out of stock
