2007 Suzuki DR-Z400E Starter Clutch Diagram

← All diagrams

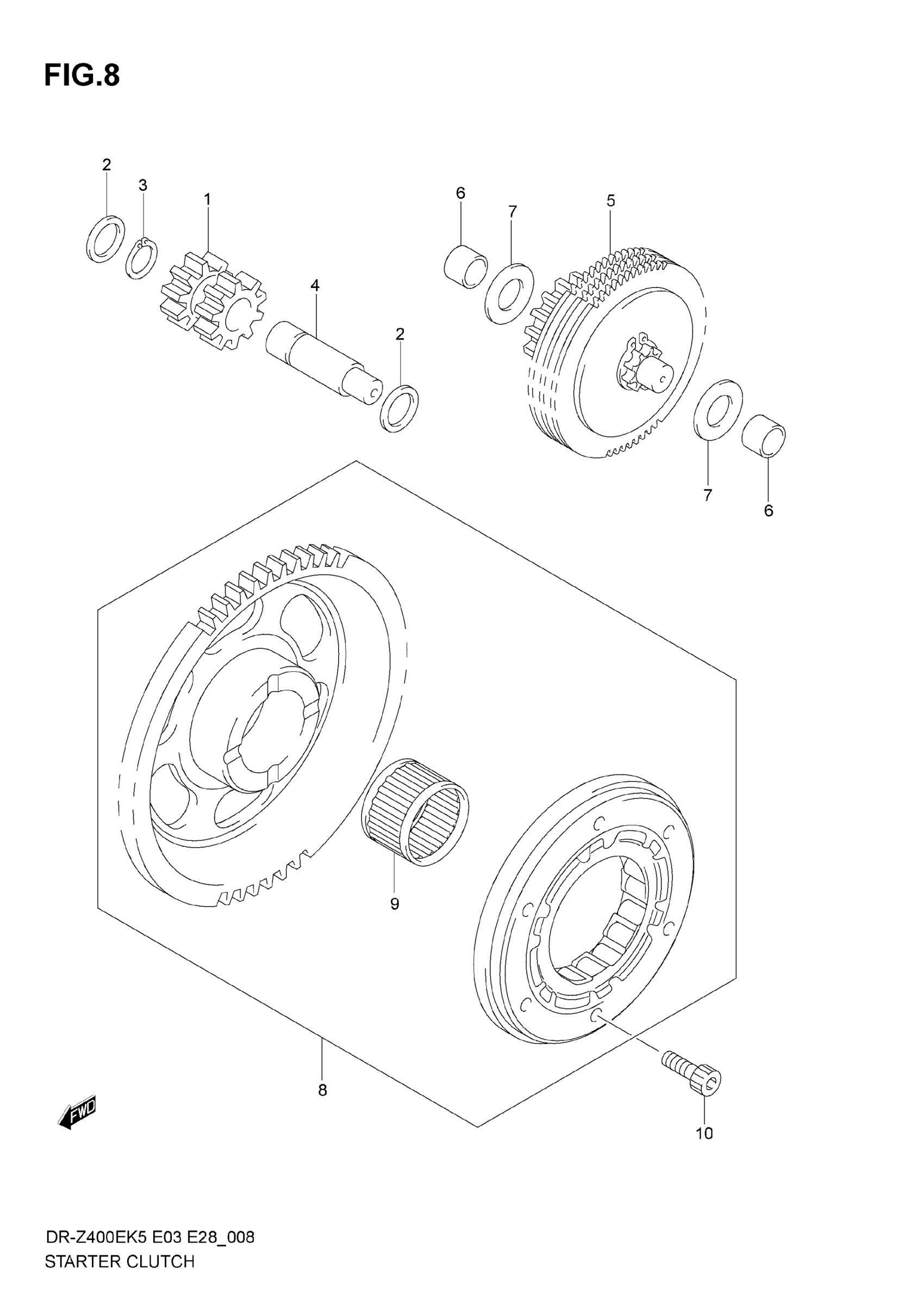

Find the part on the Starter Clutch diagram for your 2007 Suzuki DR-Z400E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki DR-Z400E Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, STARTER IDLE NO.1

12611-29F00

1
Out of stock

2

WASHER

09181-12130

2
Out of stock

3

CIRCLIP This part replaces 08331-31126.

08331-3112A

1
Out of stock

4

PIN

12615-29F00

1
Out of stock

5

LIMITER ASSY, STARTER IDLE GEAR

12600-29F00

1
Out of stock

6

BUSH LIMITER GEAR SHAFT

12618-31D01

2
Out of stock

7

WASHER

08211-10221

2
Out of stock

8

CLUTCH SET, STARTER | Includes Item(s) 9

12600-29810

1
Out of stock

9

BEARING (25X31X19)

09263-25049

1
Out of stock

10

BOLT | MODEL K5/K6 This part replaces 07130-06163.

07130-0616B

6
Out of stock

10

BOLT | MODEL K7

09106-06073

6
Out of stock
