2007 Suzuki DR-Z400E Right Handle Lever Diagram

← All diagrams

Find the part on the Right Handle Lever diagram for your 2007 Suzuki DR-Z400E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

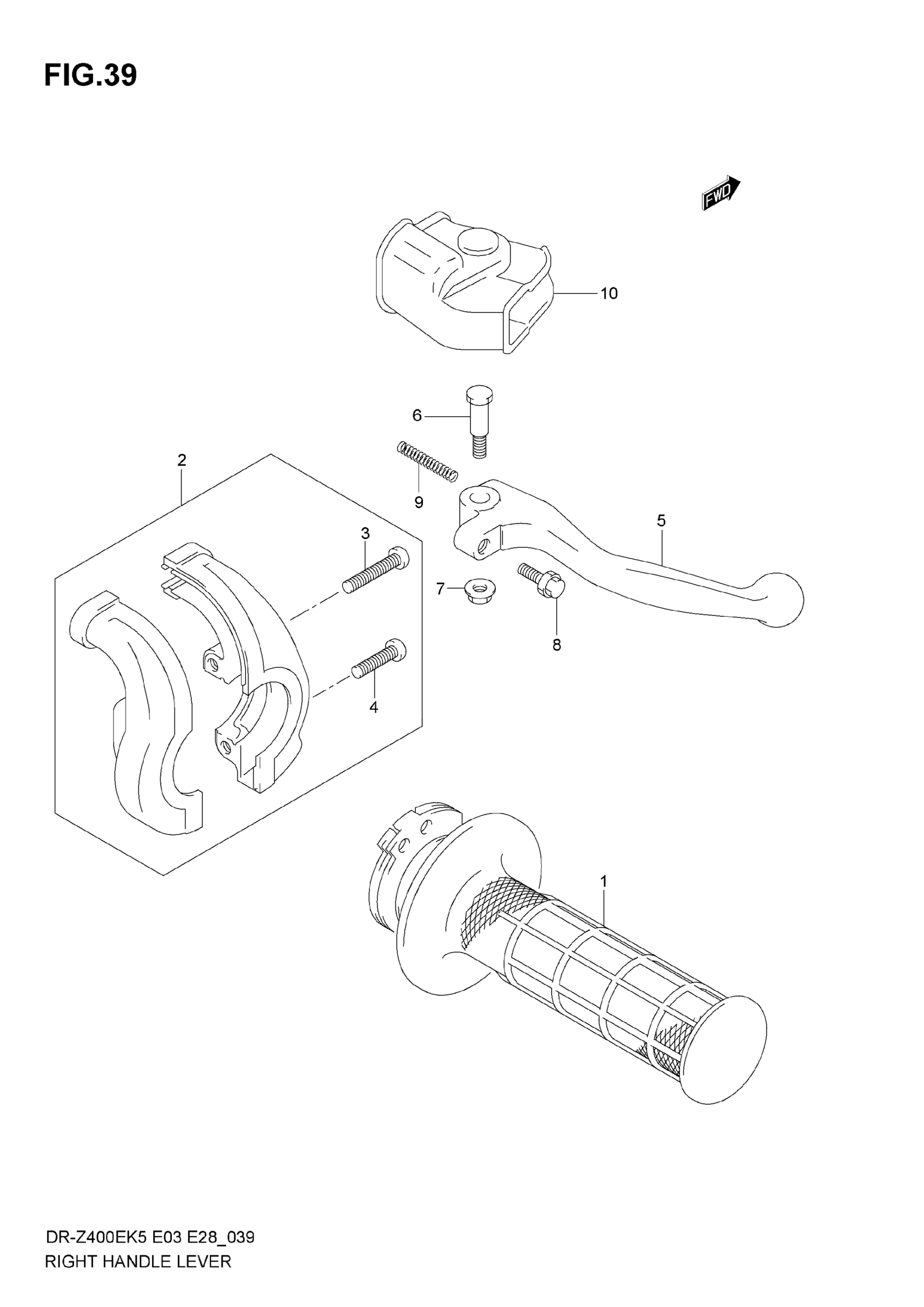

2007 Suzuki DR-Z400E Right Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE

57110-14D11

1
Out of stock

2

CASE ASSY THROTTLE | Includes Item(s) 3 - 4

57100-14D00

1
Out of stock

3

SCREW, UPPER (5X25)

09125-05066

1
Out of stock

4

SCREW This part replaces 02112-05203.

02112-0520B

1
Out of stock

5

LEVER, BRAKE

57421-36E10

1
Out of stock

6

BOLT, BRAKE LEVER

57431-14500

1
Out of stock

7

NUT This part replaces 08316-10063.

08316-1006B

1
Out of stock

8

BOLT, ADJUSTER

57430-36E00

1
Out of stock

9

SPRING, RETURN

57318-14502

1
Out of stock

10

COVER, RH

57341-36E00

1
Out of stock
