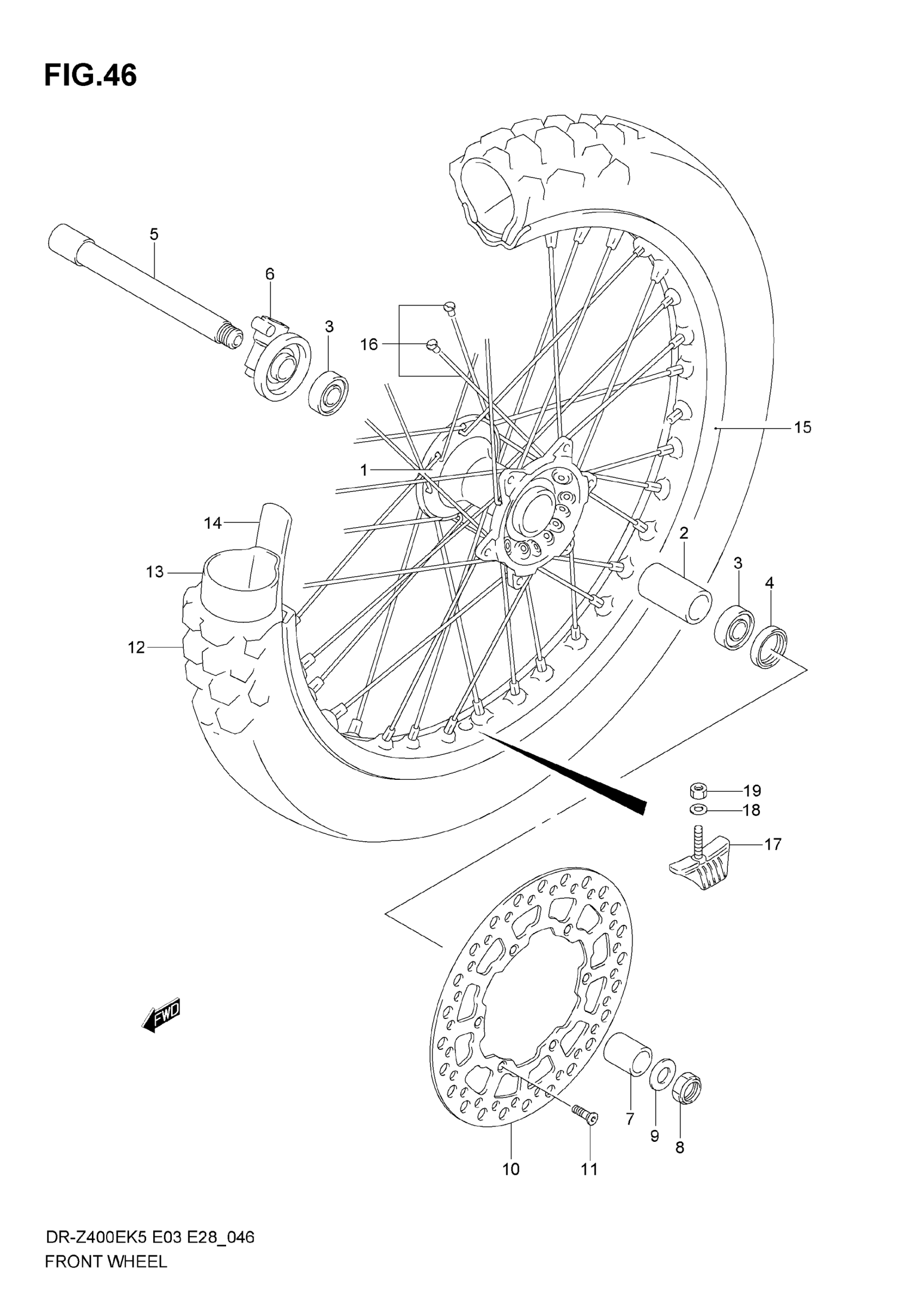

Suzuki DR-Z400E (2007) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEEL

54111-29F00

Unavailable

2

SPACER, FRONT HUB (20.5X27.3X70)

54731-36E10

$29.07

3

BEARING This part replaces 08130-69047.

08130-6904B

$47.02

4

SEAL, LH (25X37X6)

09283-25083

$7.67

5

AXLE, FRONT This part replaces 54711-29F00.

54711-29F10

$118.47

6

BOX ASSY SPEEDOMETER GEAR This part replaces 54600-29F00.

54600-29F01

$71.53

7

SPACER, AXLE LH (L:31)

54751-36E10

$16.33

8

NUT

09159-18018

$21.71

9

WASHER

09160-18034

$3.22

10

DISC, FRONT BRAKE LH

59221-29F00

$337.88

11

SCREW, SHIFT PAWL LIFTER This part replaces 09120-06011.

09120-06014

$2.43

12

TIRE, FRONT (80/100-21 51M) (DUNLOP)

55110-29F00

Unavailable

13

TUBE ASSY,WHEEL INNER This part replaces 55200-29F00.

55200-29F01

$31.37

14

PROTECTOR, INNER TUBE

55261-44AF0

$7.77

15

RIM, FRONT WHEEL (1.60X21)

55311-36E00

Unavailable

16

SPOKE SET, FRONT WHEEL

55320-36E00

$188.63

17

STOPPER, BEAD (1.6)

65270-08G00

$61.78

18

WASHER This part replaces 08322-01083.

08322-0108A

$2.18

19

NUT This part replaces 08310-00083.

08310-0008A

$1.86
