2007 Suzuki DR-Z400E Left Handle Lever Diagram

← All diagrams

Find the part on the Left Handle Lever diagram for your 2007 Suzuki DR-Z400E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

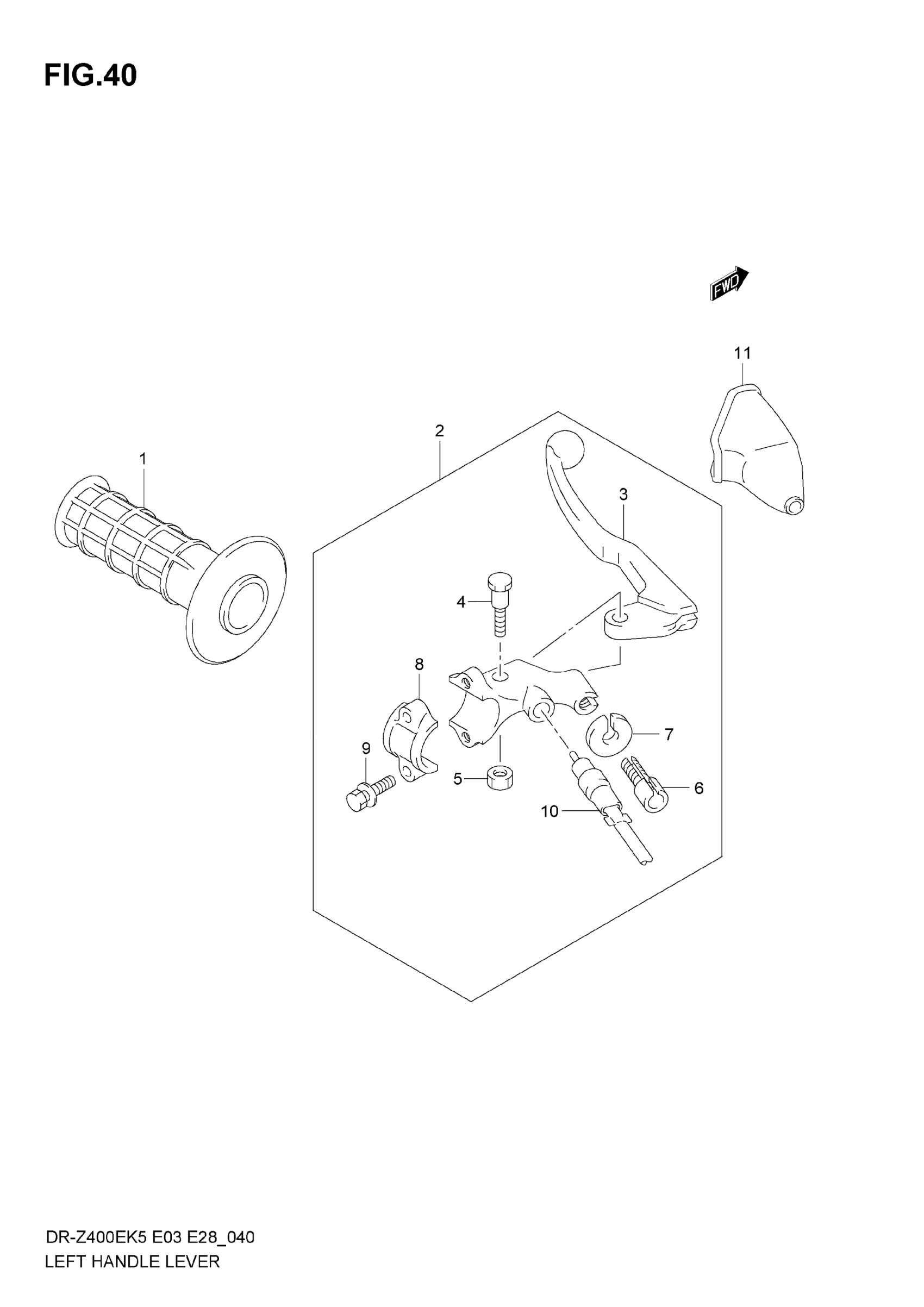

2007 Suzuki DR-Z400E Left Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP LH

57211-27C00

1
Out of stock

3

.LEVER, CLUTCH

57621-13E00

1
Out of stock

4

..BOLT,LEVER PIVOT

57431-21D11

1
Out of stock

5

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

6

.ADJUSTER, WIRE This part replaces 57441-29F00.

57441-29F01

1
Out of stock

7

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

1
Out of stock

8

BRACKET, HOLDER

57512-13E00

1

$29.07

In stock

9

BOLT, BRACKET

57513-13E00

2

$7.03

In stock

10

1

$22.20

In stock

11

COVER, CLUTCH CABLE DUST This part replaces 57341-29F01.

57341-29F02

1
Out of stock
