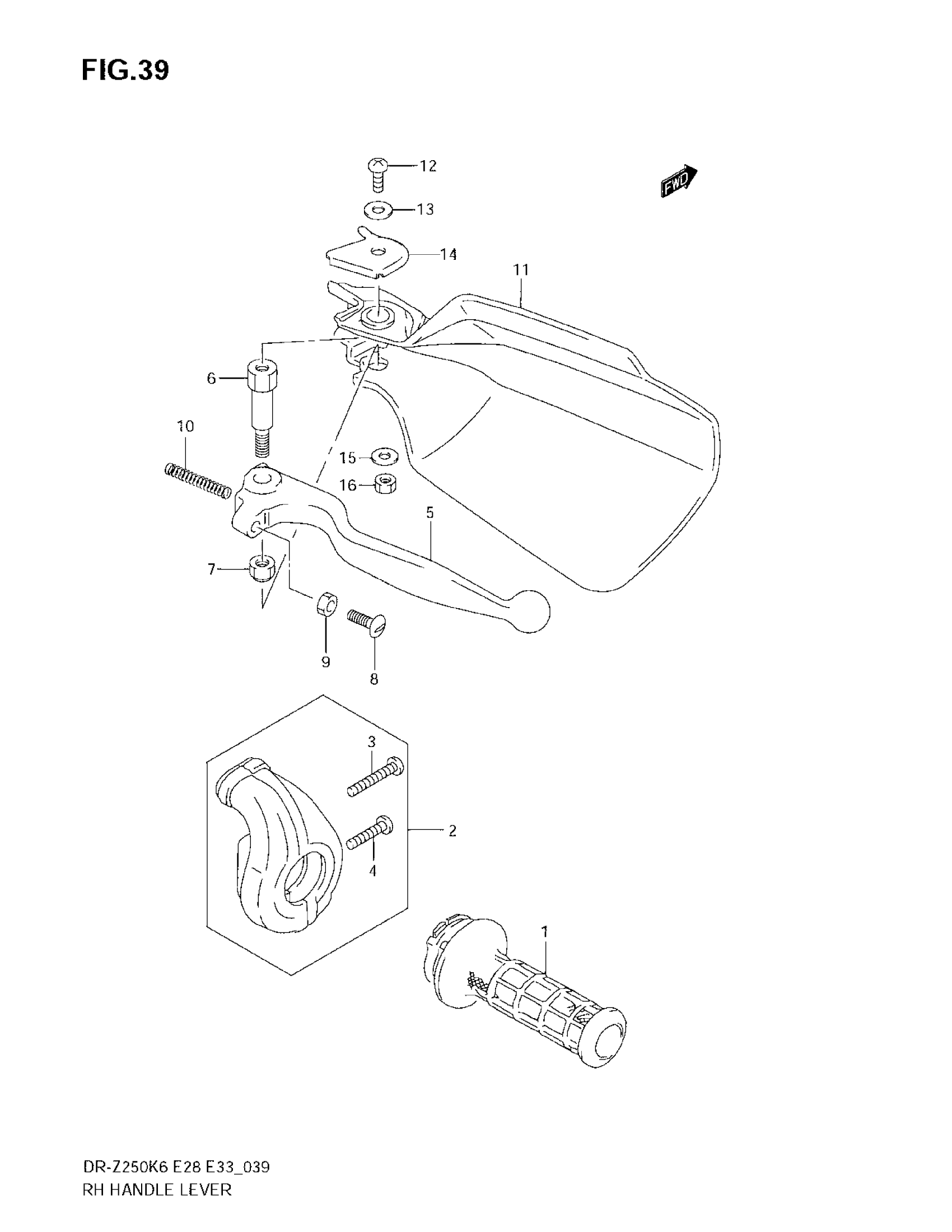

Suzuki DR-Z250 (2007) RH HANDLE LEVER Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-14D11

$50.22

2

CASE ASSY THROTTLE | Includes Item(s) 3 - 4

57100-14D00

$93.58

3

SCREW (5X25)

09125-05066

$1.52

4

SCREW This part replaces 02112-05203.

02112-0520B

$1.86

5

LEVER, BRAKE

57421-27C00

$12.66

6

BOLT, BRAKE LEVER PIVOT

57431-05D00

$14.50

7

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

8

BOLT, ADJUST

57431-14511

$5.46

9

NUT This part replaces 08310-00053.

08310-0005A

$1.83

10

SPRING, RETURN

57318-14502

$4.09

11

COVER, KNUCKLE RH (YELLOW) | MODEL K6 This part replaces 57341-05D00-YU1.

57341-05D10-YU1

$52.15

11

COVER, KNUCKLE RH (YELLOW) | MODEL K7

57341-05D10-YU1

$52.15

12

SCREW

02142-05107

$1.10

13

WASHER

09160-05043

$2.33

14

PLATE, UPPER

57355-14D00

$7.77

15

.WASHER (6.5X16X1.6)

09160-06130

$1.89

16

.NUT This part replaces 08319-21068.

08319-2106A

$1.89
