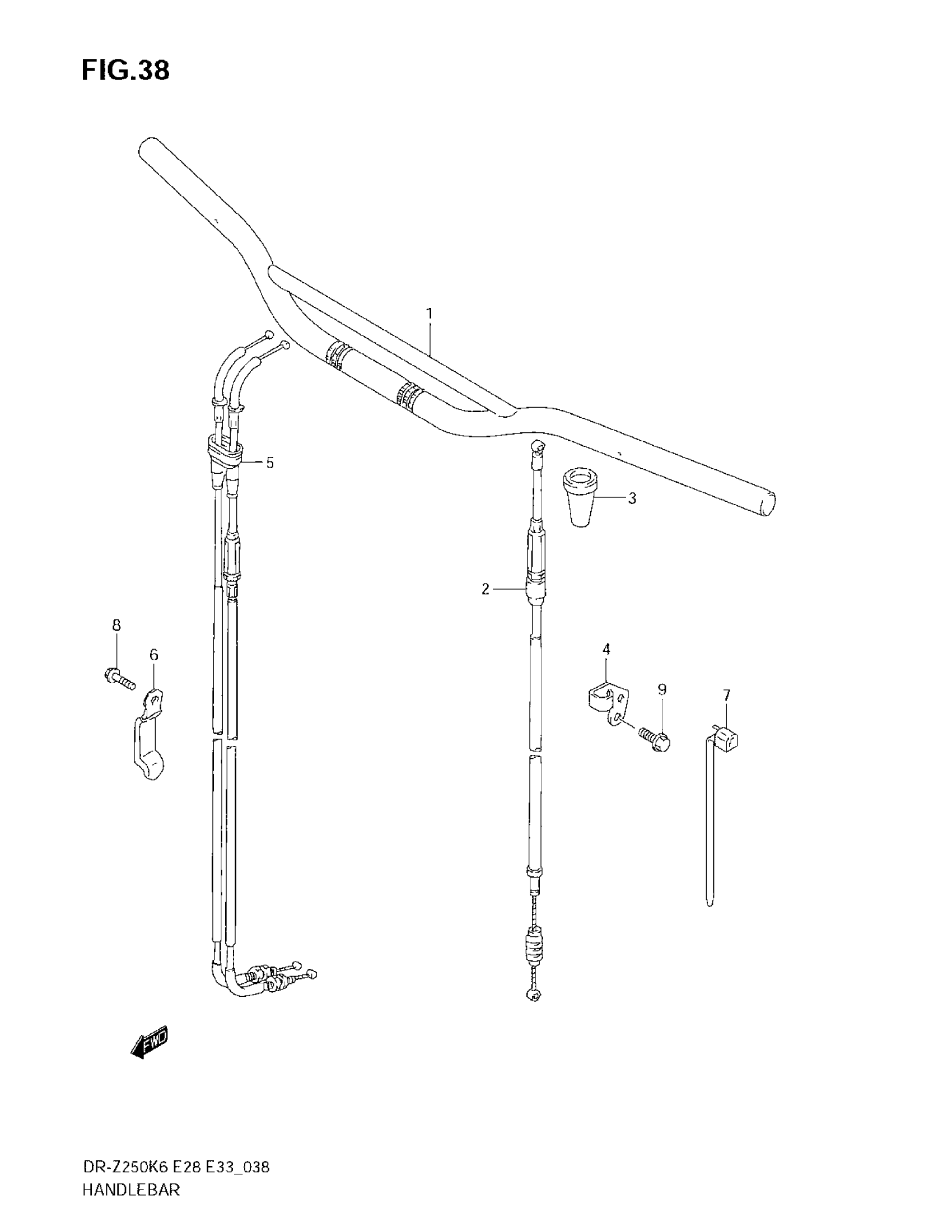

Suzuki DR-Z250 (2007) HANDLEBAR Diagram

#

Description

Price

1

HANDLEBAR (SILVER)

56110-14D50-13L

Unavailable

2

CABLE ASSY, CLUTCH

58200-13E10

$34.01

3

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.40

4

STOPPER, CLUTCH CABLE

58634-13E00

Unavailable

5

CABLE ASSY, THROTTLE | E28

58300-13E30

Unavailable

5

CABLE ASSY, THROTTLE | E33

58300-13E40

$92.03

6

CLAMP This part replaces 09403-09307.

09403-09328

$1.97

7

CLAMP (L:165)

09407-18402

$2.29

8

BOLT This part replaces 01550-06103.

01550-0610A

$2.01

9

BOLT This part replaces 01547-06123.

01547-0612B

$1.25
