2007 Suzuki DR-Z250 Rear Wheel Diagram

← All diagrams

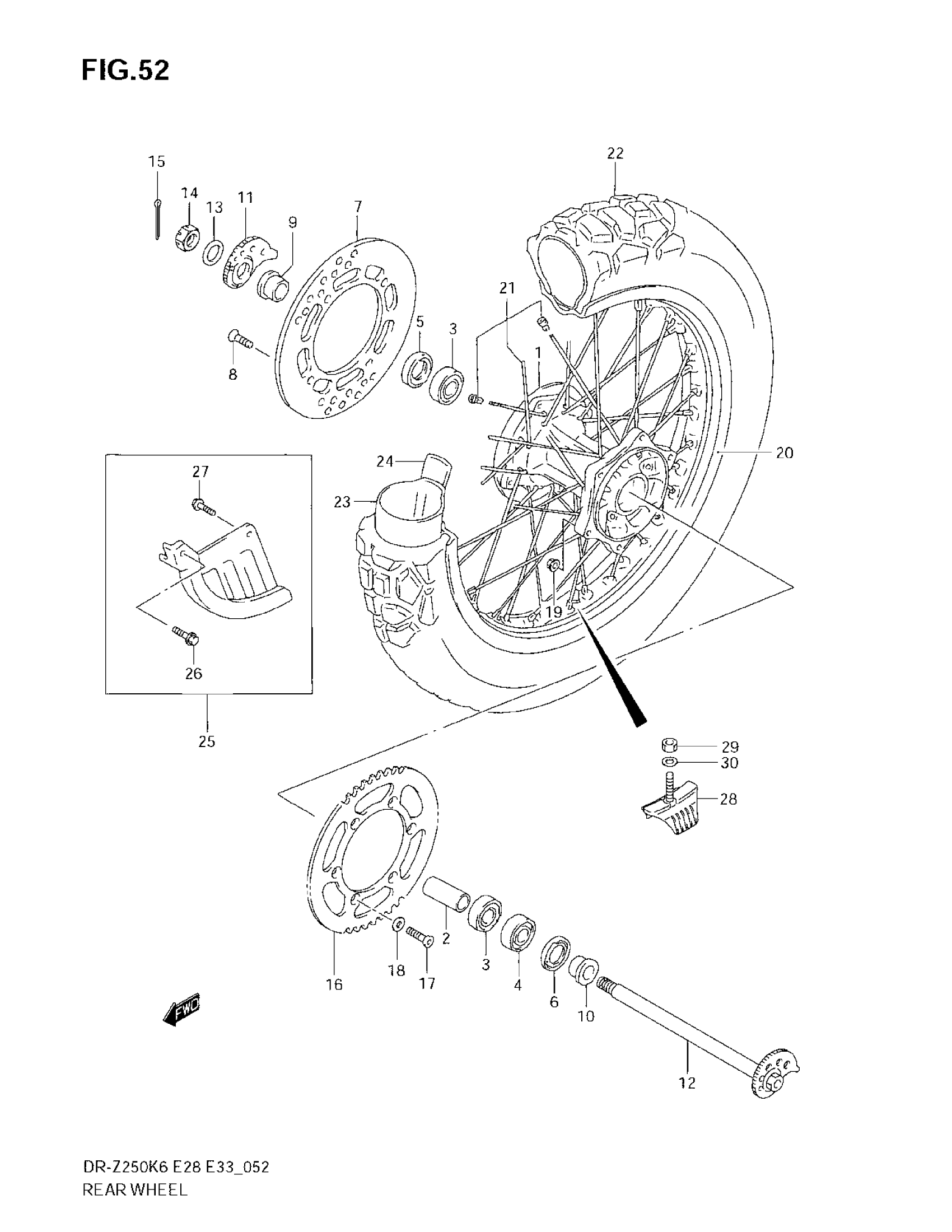

Find the part on the Rear Wheel diagram for your 2007 Suzuki DR-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki DR-Z250 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL

64111-14D10

1
Out of stock

2

SPACER, BEARING

64731-13E00

1
Out of stock

3

BEARING

08133-60047

2
Out of stock

4

BEARING This part replaces 08123-62047.

08123-6204B

1
Out of stock

5

OIL SEAL, RH (26X42X8)

09282-26001

1
Out of stock

6

OIL SEAL (26X47X5)

09283-26019

1
Out of stock

7

DISC, REAR BRAKE

69211-03D10

1
Out of stock

8

BOLT, DISC

09106-08155

4
Out of stock

9

SPACER, REAR AXLE RH

64741-14D00

1
Out of stock

10

SPACER, REAR AXLE LH

64751-05D00

1
Out of stock

11

ADJUSTER, CHAIN RH

61410-32E00

1
Out of stock

12

AXLE, REAR

64710-32E10

1
Out of stock

13

WASHER

09160-19022

1

$4.74

In stock

14

NUT This part replaces 08314-40183.

08314-4018A

1
Out of stock

15

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

16

SPROCKET, REAR (NT:49)

64511-00B01

1
Out of stock

17

BOLT (8X20)

09120-08004

6
Out of stock

18

WASHER This part replaces 08322-01083.

08322-0108A

6
Out of stock

19

NUT This part replaces 08319-31088.

08319-3108A

6
Out of stock

20

RIM, REAR WHEEL (18X2.15)

65311-14D00

1
Out of stock

21

SPOKE SET, REAR WHEEL

65320-14D00

1
Out of stock

22

TIRE, REAR, 100/100-18 59M (DUNLOP)

65110-13E80

1
Out of stock

23

TUBE ASSY, WHEEL INNER

65200-13E00

1
Out of stock

24

PROTECTOR, WHEEL INNER TUBE

65261-13E00

1
Out of stock

25

COVER SET, REAR DISC

69200-28C00

1

$28.35

In stock

26

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

27

BOLT This part replaces 01550-06203.

01550-0620A

1
Out of stock

28

STOPPER,BEAD (2.15)

65270-29F00

1

$61.78

In stock

29

NUT This part replaces 08310-00083.

08310-0008A

1
Out of stock

30

WASHER This part replaces 08322-01083.

08322-0108A

1
Out of stock
