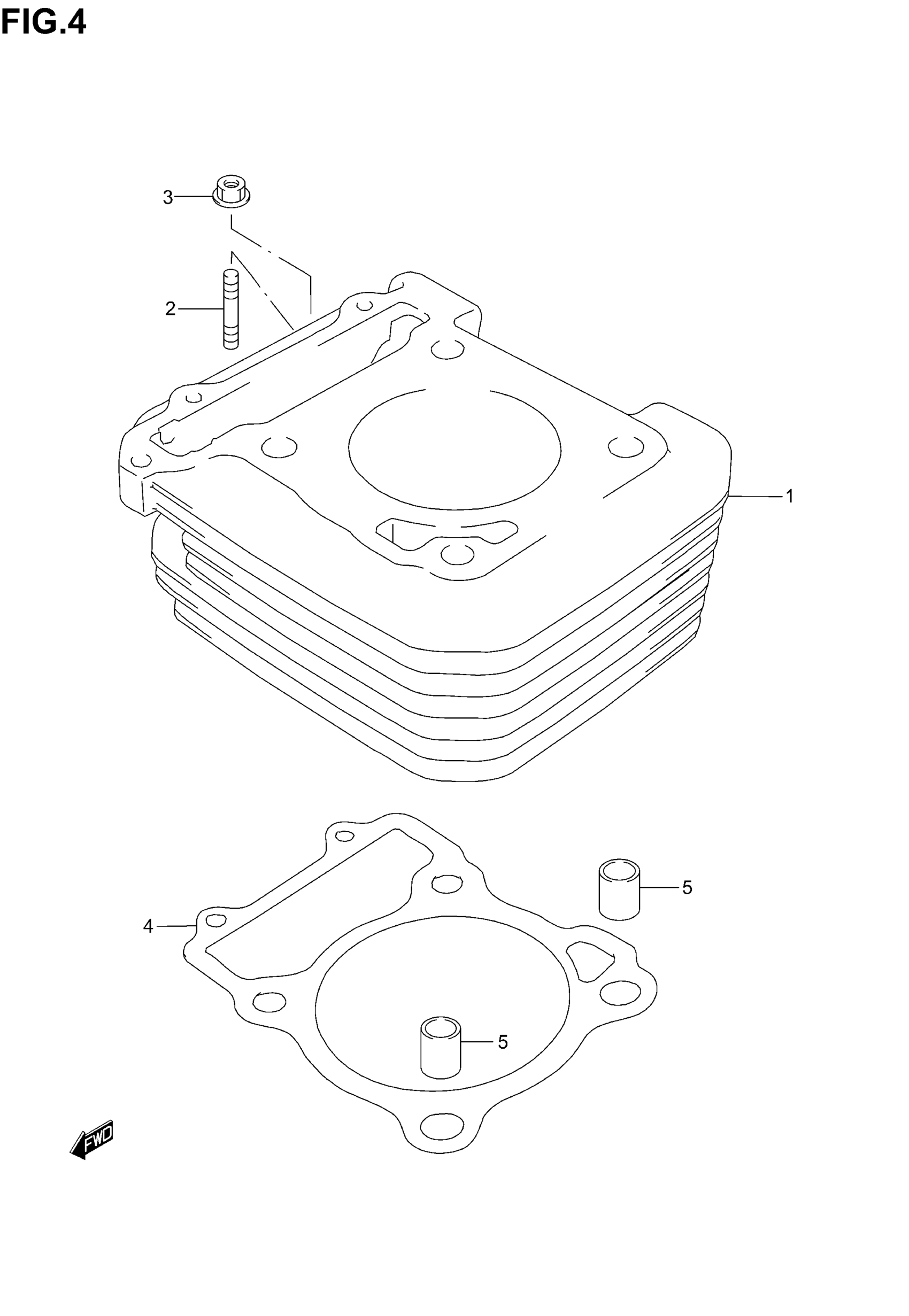

Suzuki DR-Z250 (2005) CYLINDER Diagram

#

Description

Price

1

CYLINDER | MODEL K1/K2/K3

11211-13E00-0F0

Unavailable

1

CYLINDER | MODEL K4/K5

11211-13E10-0F0

Unavailable

2

STUD BOLT This part replaces 01421-06203.

01421-0620A

$1.97

3

NUT This part replaces 08316-10063.

08316-1006B

$2.57

4

GASKET, CYLINDER | MODEL K1/K2 This part replaces 11241-13E02.

11241-13E10

$26.67

4

GASKET, CYLINDER | MODEL K3/K4/K5

11241-13E10

$26.67

5

PIN

04211-13189

$2.25
